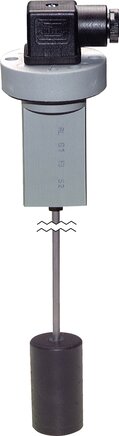

Float Level Switch Adjustable 120-500mm Flange Mount 10bar

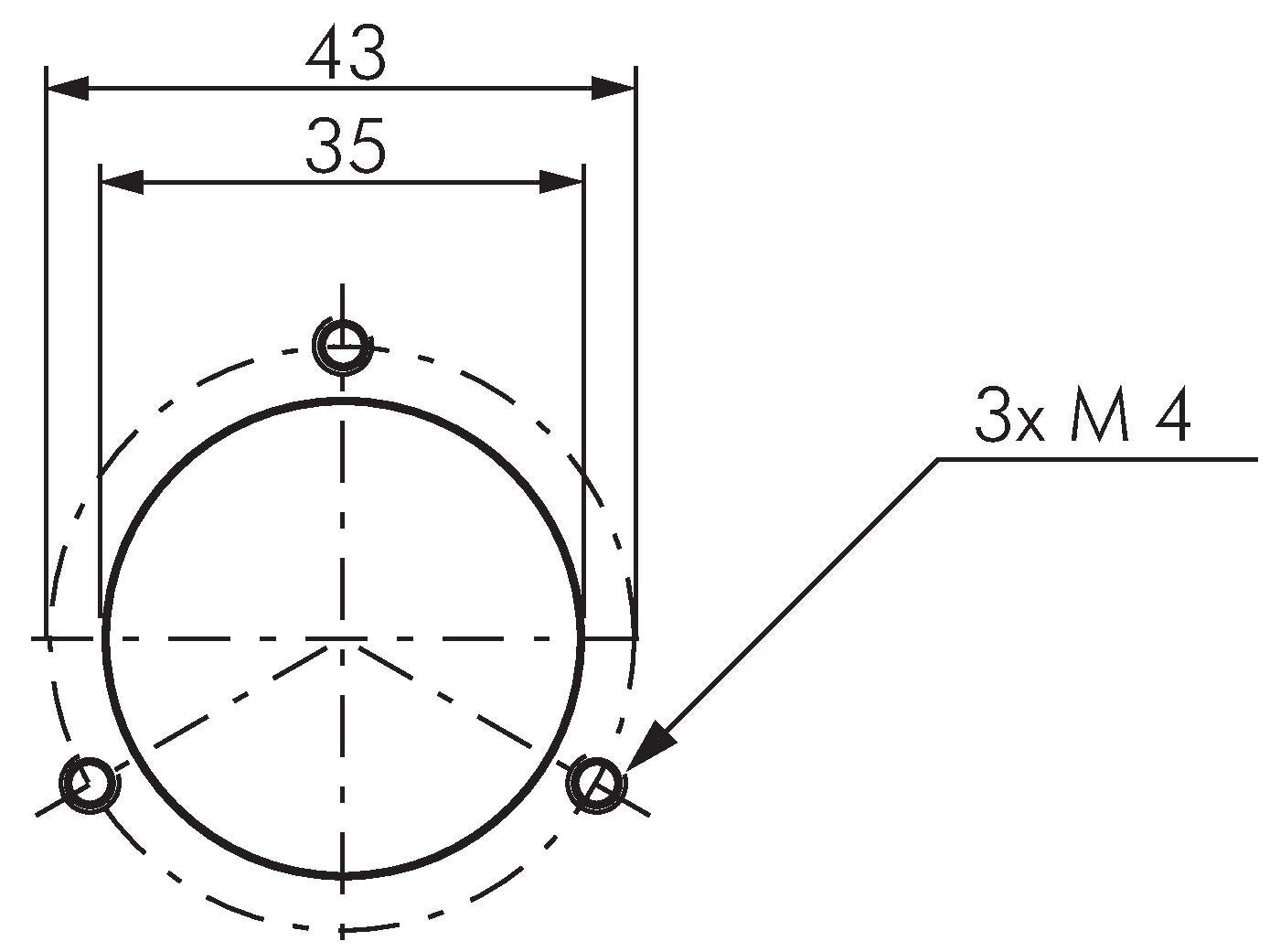

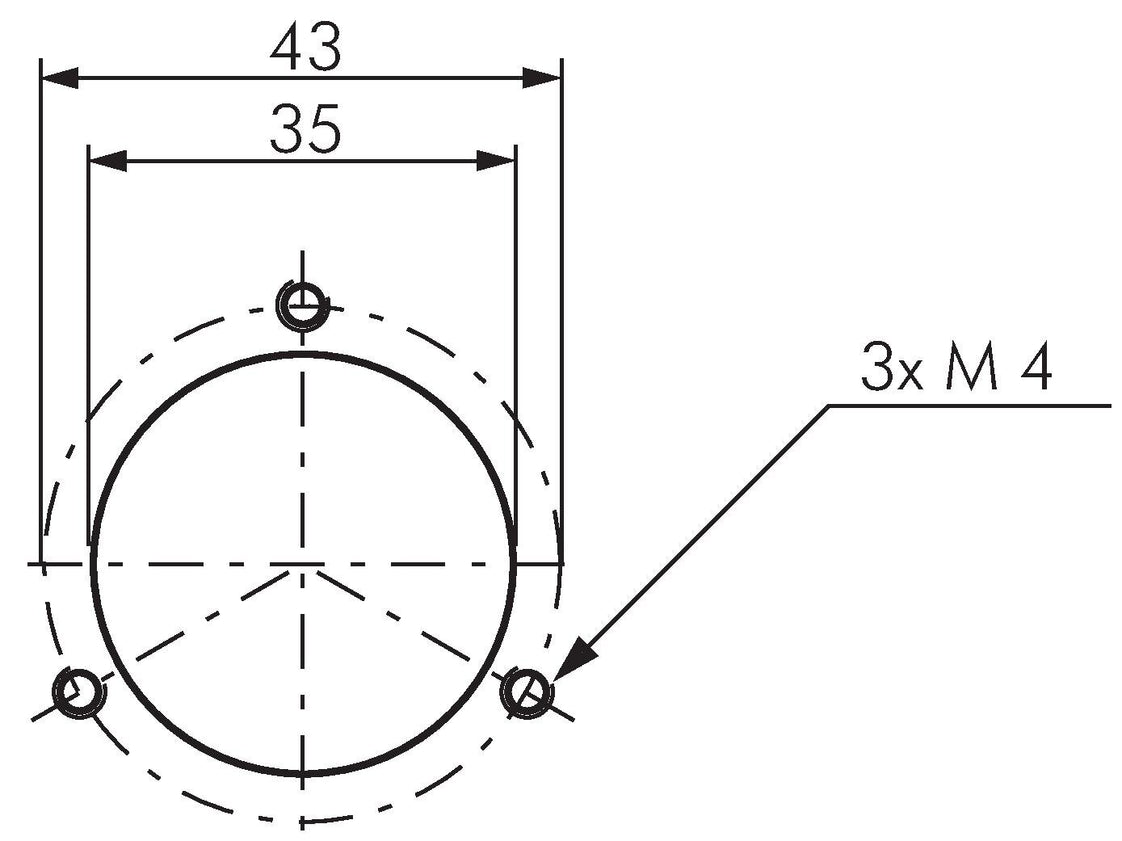

Float level switch with a switch position you set yourself, from 120 to 500 mm. It mounts on the tank lid with a flange (bolt circle 43 mm, bore 35 mm, 3x M4). One changeover contact rated 250 V AC 60 VA / 250 V DC 60 W, max 1 A, angled plug connector to EN 175301-803 A. Polyamide body, stainless steel rod, NBR float, max 10 bar, -20 to +80 °C, IP65.
- Regular price
- $127.98 USD
We sell only to registered businesses
Description

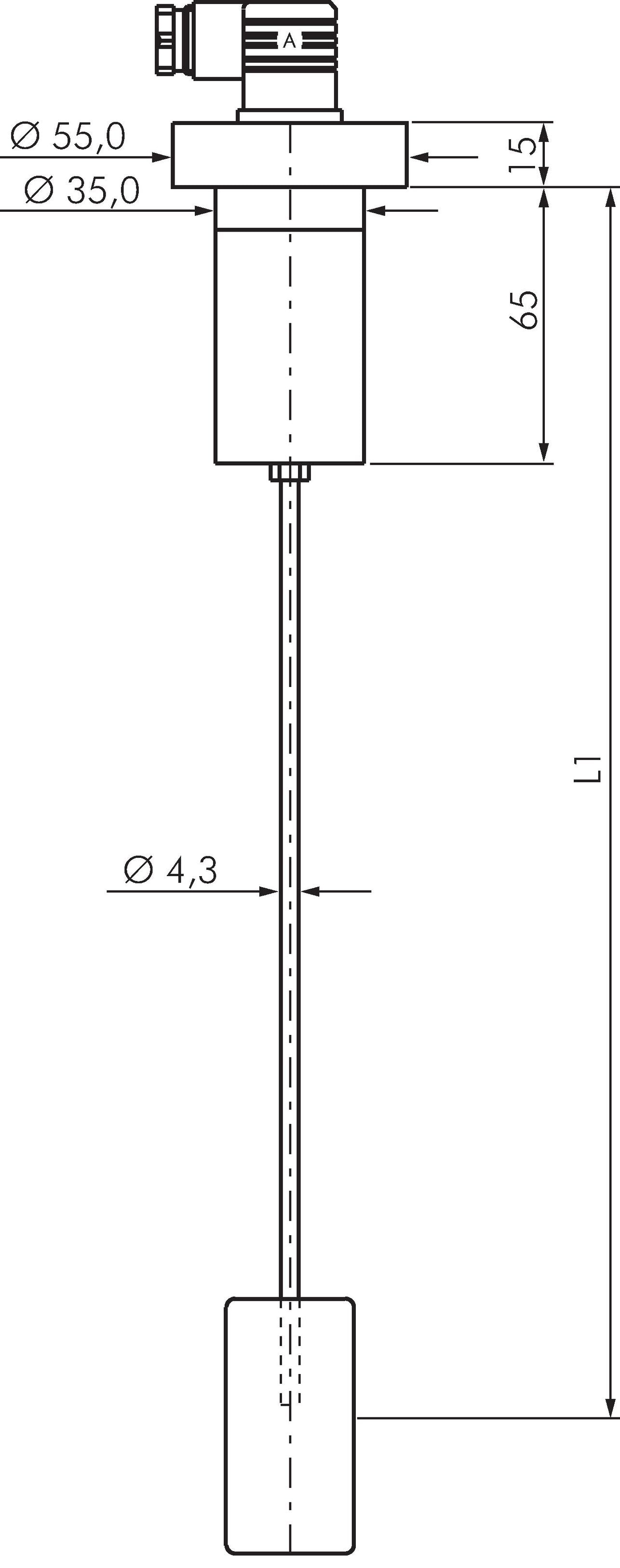

Mount it vertically on the tank lid. To set the switch position, pull the float off the rod, cut the rod to length and refit the float; the position is measured from the mounting face of the flange. The float acts on a rod rather than sliding on a tube and needs no magnet, so dirt and iron particles in the medium, e.g. in coolant, do not affect it. Suitable for water, dirty water, hydraulic oil, machine oil, coolant and fuel.
Pros:
- Switch position set on site by cutting the rod (120-500 mm)
- Rod instead of slide tube - suitable for dirty media
- No magnet - not affected by iron particles, e.g. in coolant
Cons:
- Not suitable for fast-flowing liquids
- Cutting is permanent - the rod cannot be lengthened again
Series:
Universal float level switch for hydraulics, machine building, plant engineering and tank construction. The float acts on a stainless steel switching rod instead of sliding on a tube, and it needs no magnet. This makes the switch suitable for dirty media and insensitive to iron particles, e.g. in coolant. The switch position is set by cutting the rod to any length from 120 to 500 mm, so one switch covers many applications. Polyamide body, NBR float Ø30 x 60 mm, neoprene seal, max 10 bar, -20 to +80 °C, IP65, vertical mounting. One changeover contact, 250 V AC / DC, max 1 A. Media: water, dirty water, hydraulic oil, machine oil, coolant, fuel and other liquids.
