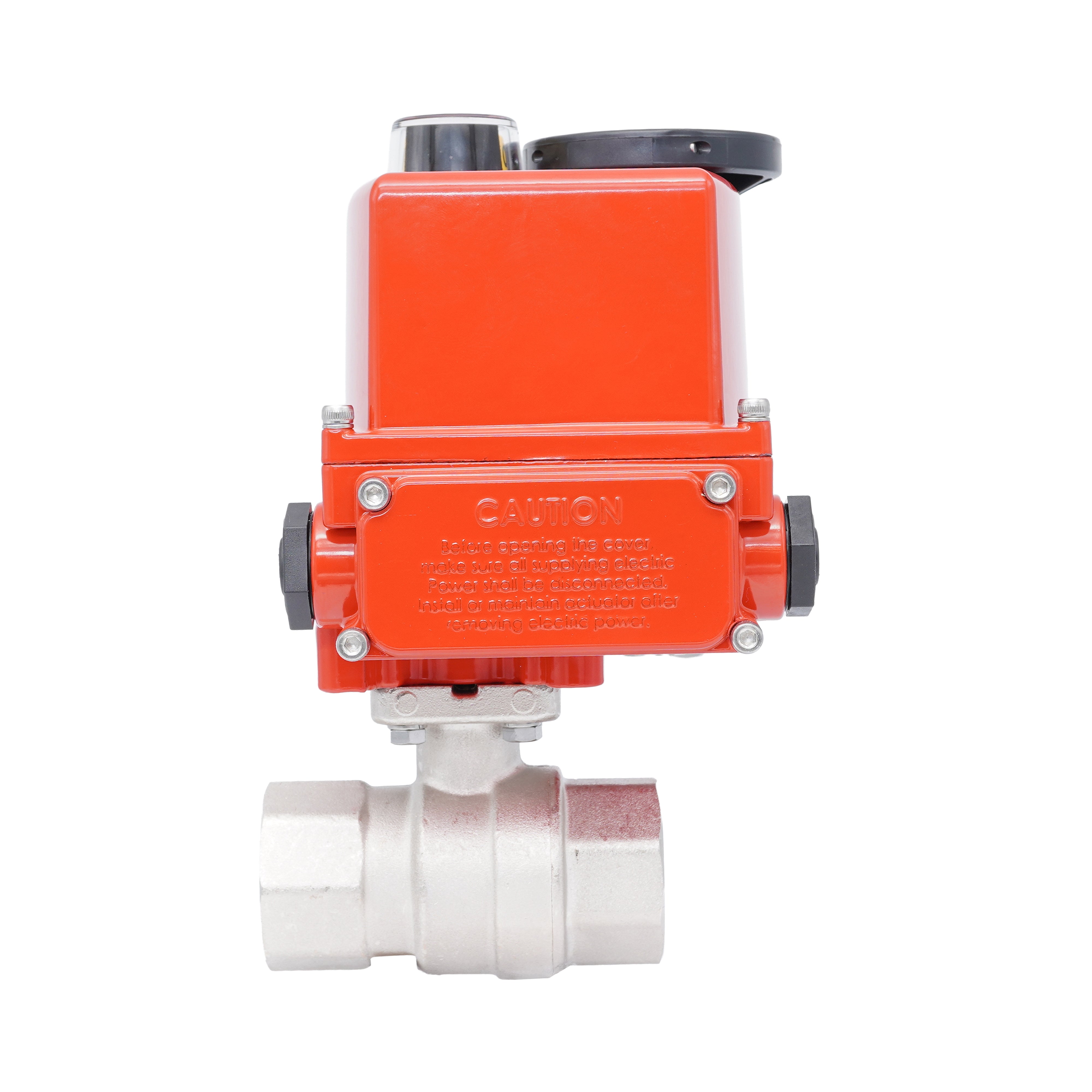

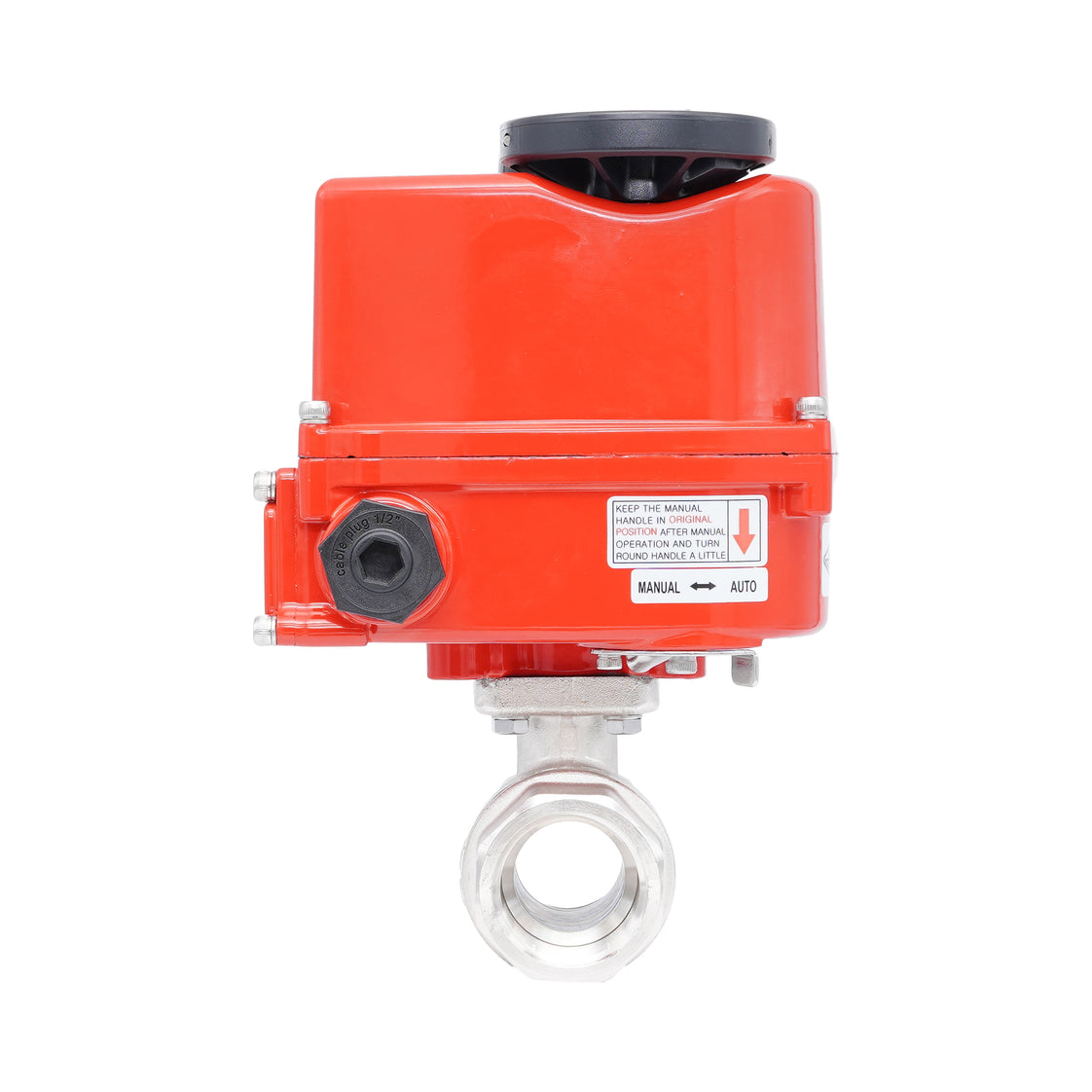

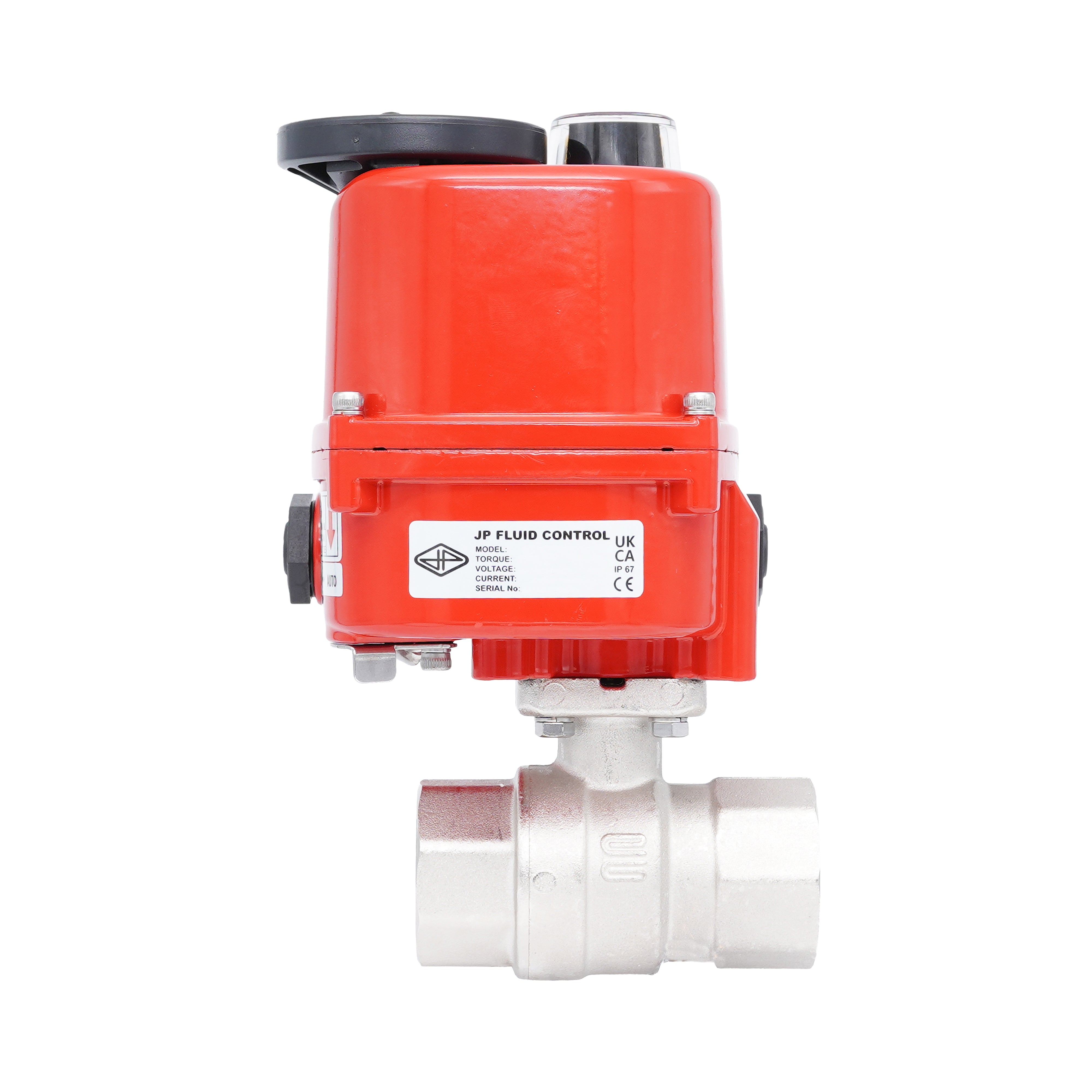

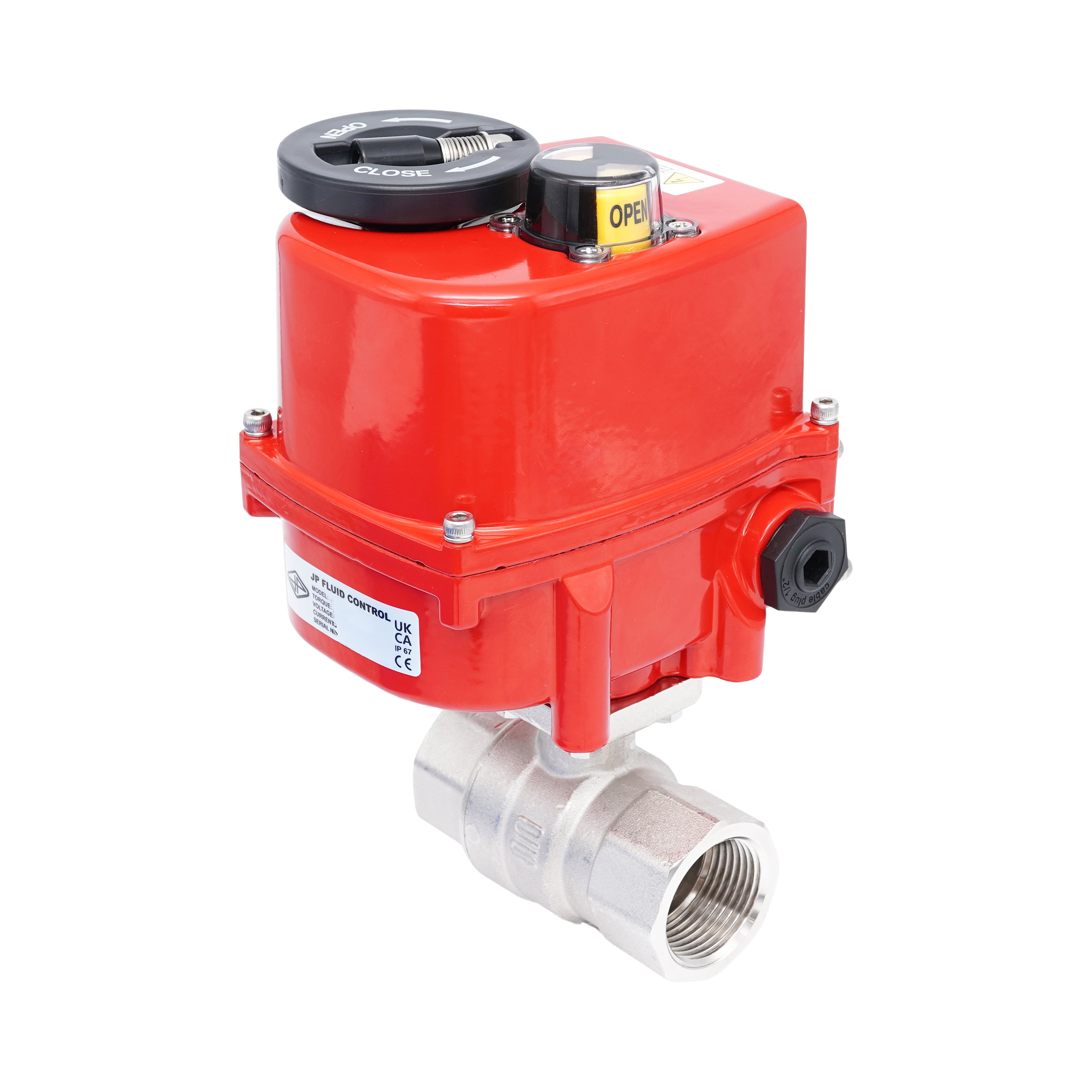

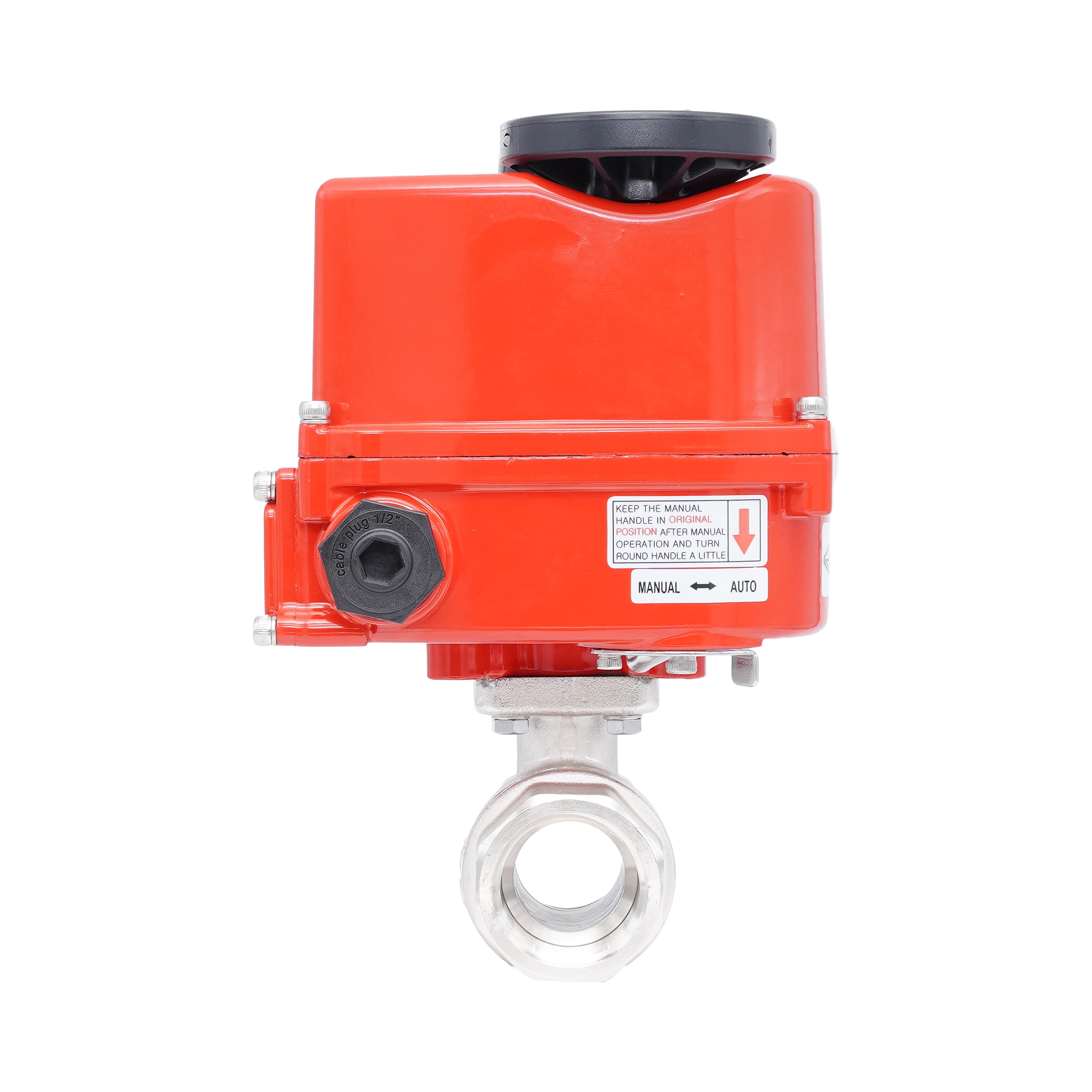

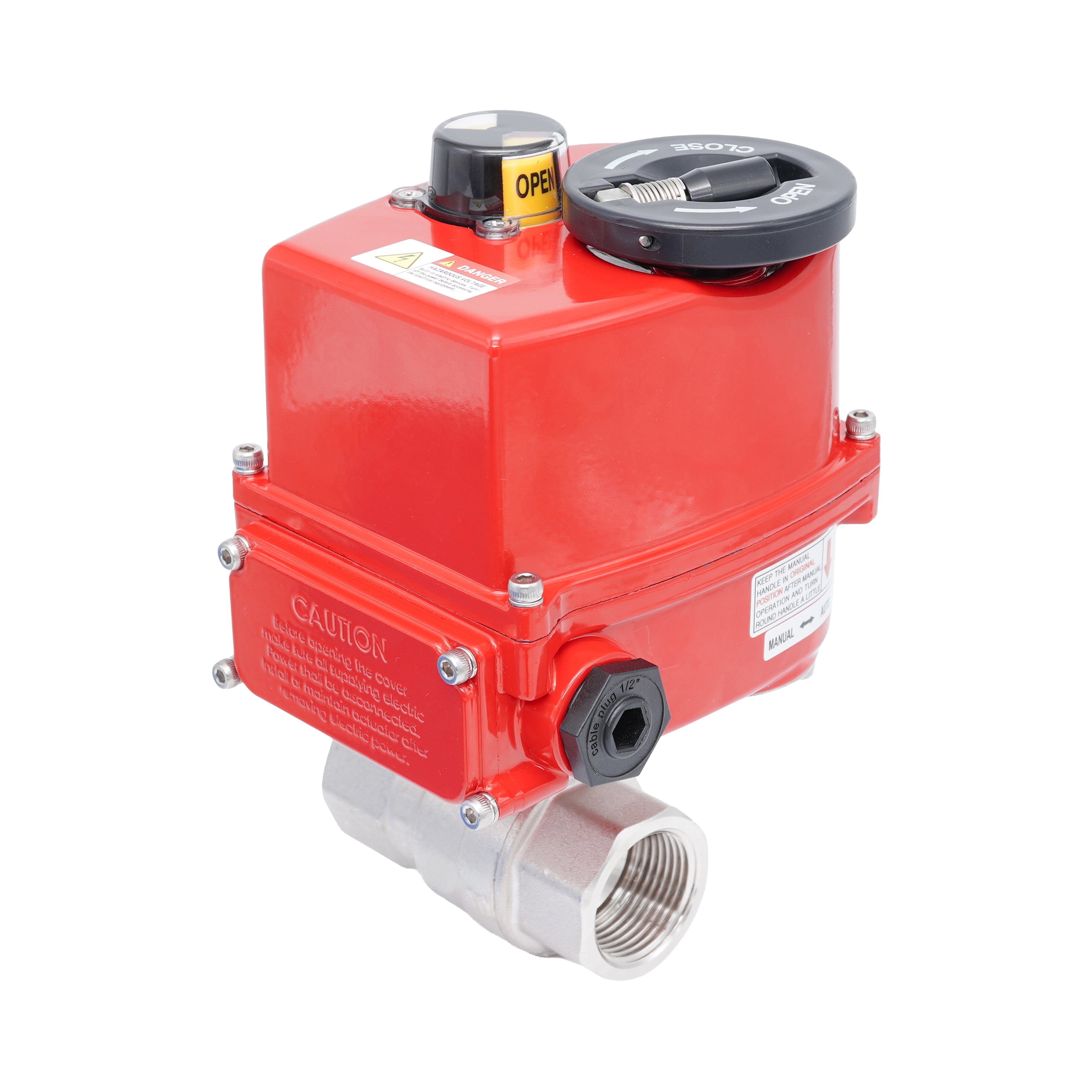

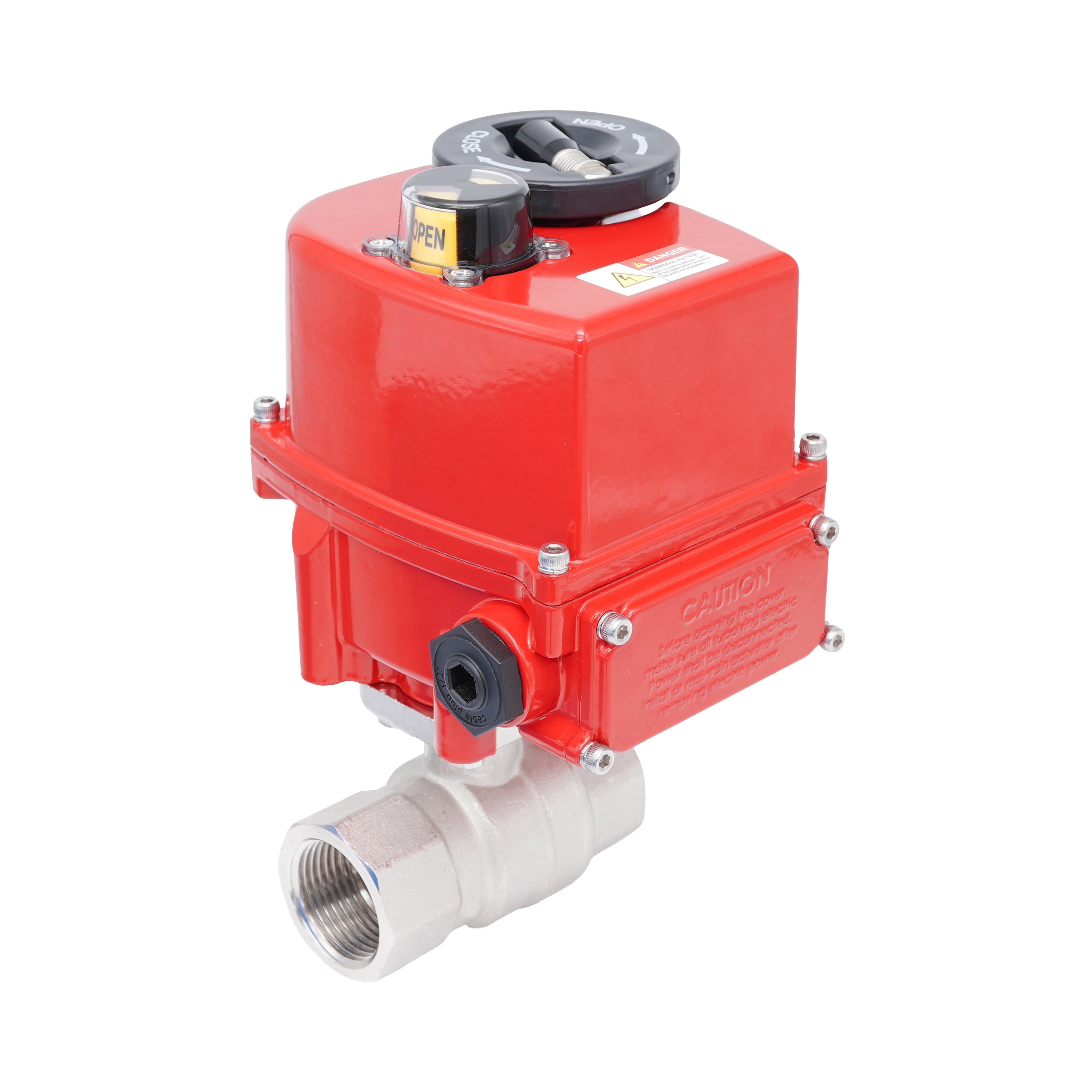

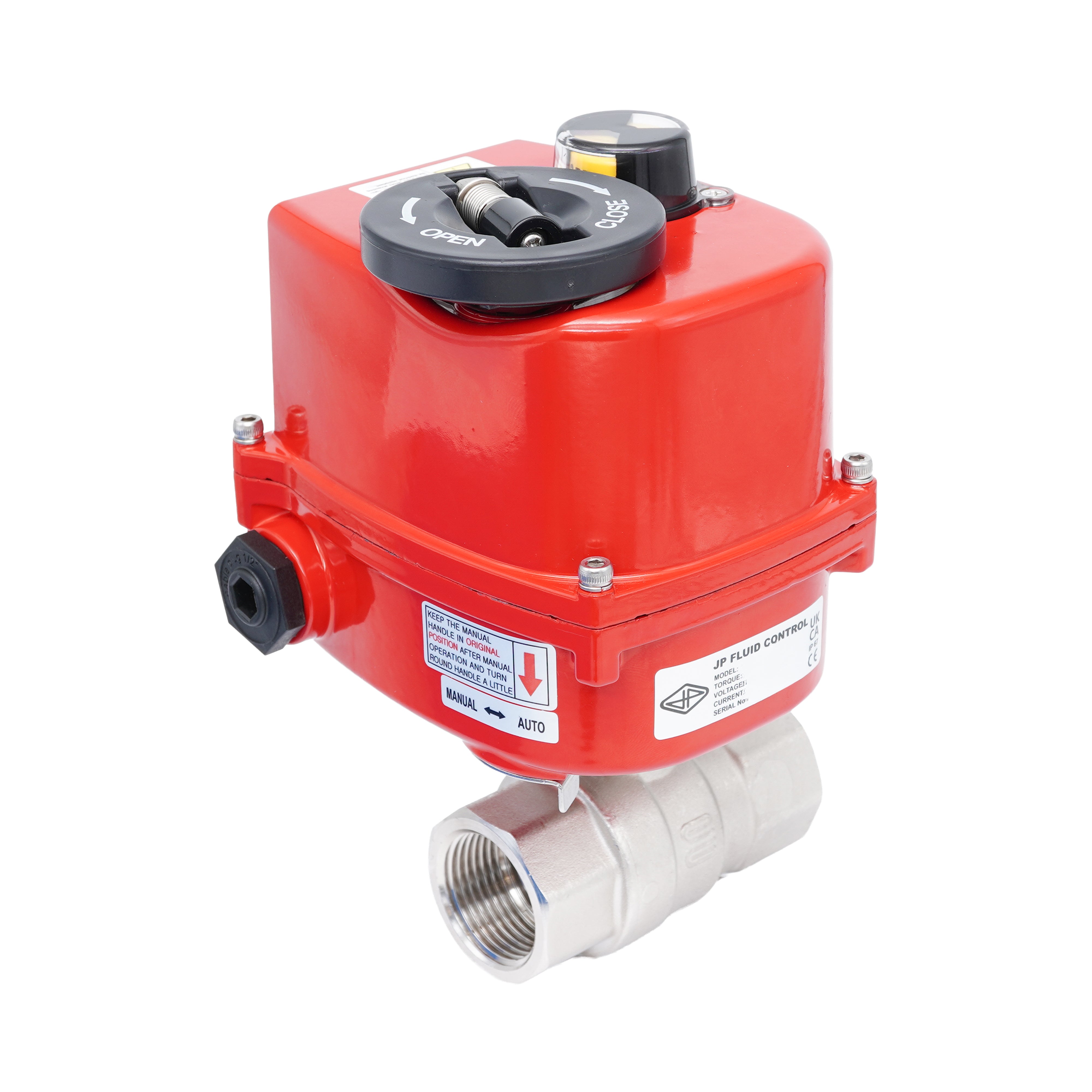

Rp 1-1/2" 2-Way Modulating Electric Brass Ball Valve 24 V AC/DC
- Regular price
- $746.03 USD
We sell only to registered businesses
Description
This Rp 1 1/2" BSP female 2-way modulating electric brass ball valve operates at 24 V AC/DC. It accepts a 4-20 mA, 0-10 V, or 2-10 V signal for proportional flow control. The actuator is rated IP67, making it suitable for outdoor, wet, and washdown environments. Ambient operating temperature range is -10 to 50 °C.

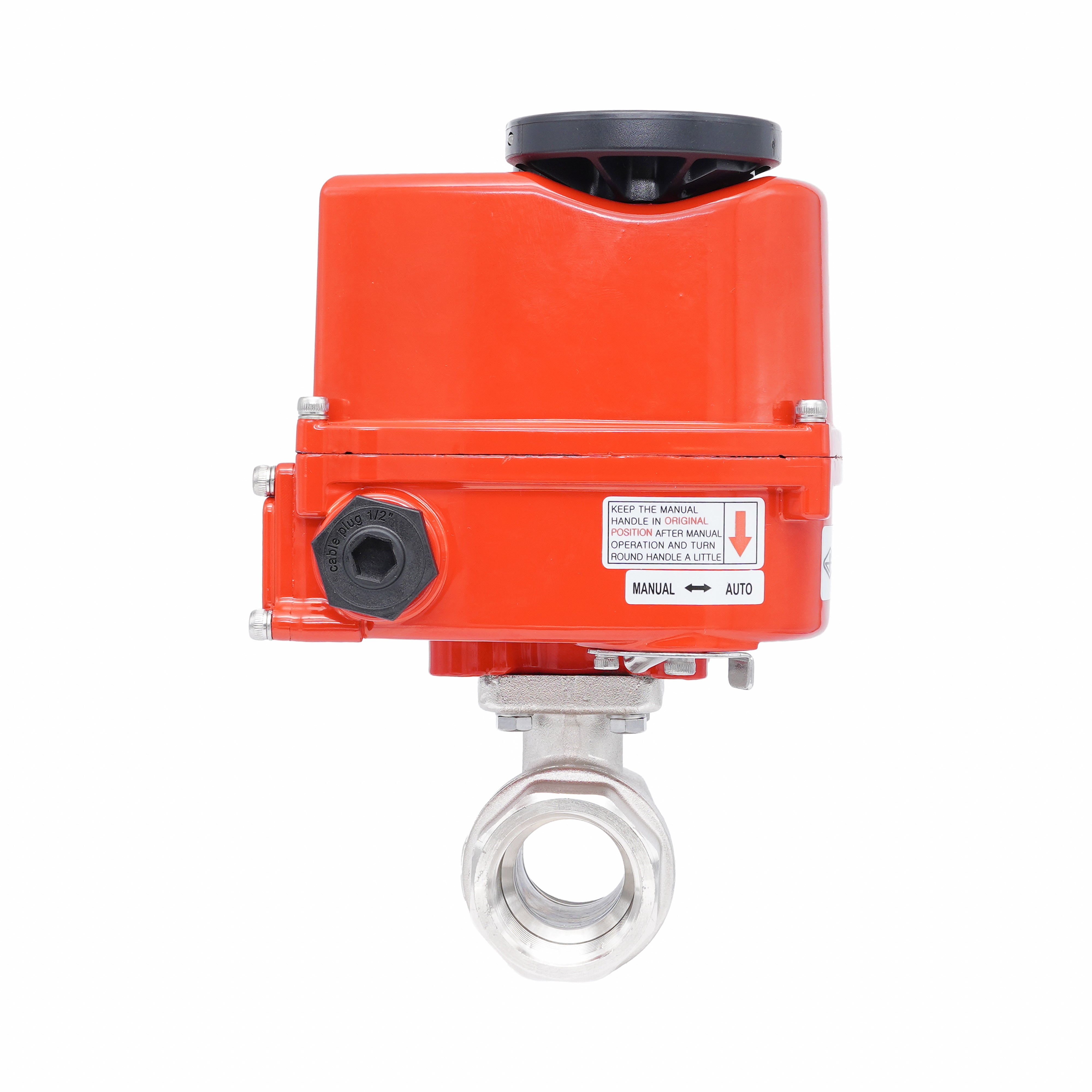

An analog position output signal (4-20 mA / 0-10 V) reports the exact valve position back to your control system, enabling closed-loop control. A manual override allows the valve to be operated by hand without electrical power - useful during commissioning or power failure.
PTFE ball seal and stem seal make it suitable for water, compressed air, oils, fuels, solvents, alcohols, lubricants, and gas. Avoid use with strong acids, ammonia, or seawater. Rated to 25 bar at 20 °C, media temperature range -20 to 130 °C (-4 to 266 °F).
Pros:
- PTFE ball seal and stem seal - suitable for wide range of media.
- IP67 rated - suitable for outdoor, wet, and washdown environments.
- Wide range of control signals - compatible with most BMS, SCADA, and PLC systems.
- Analog position output (4-20 mA / 0-10 V) - enables closed-loop control.
- Manual override - operable by hand without electrical power.
Cons:
- Brass not suitable for strong acids, ammonia, or seawater - check stainless steel variants.
- Actuator ambient temperature limited to 50 °C - check pneumatic actuator variants.
