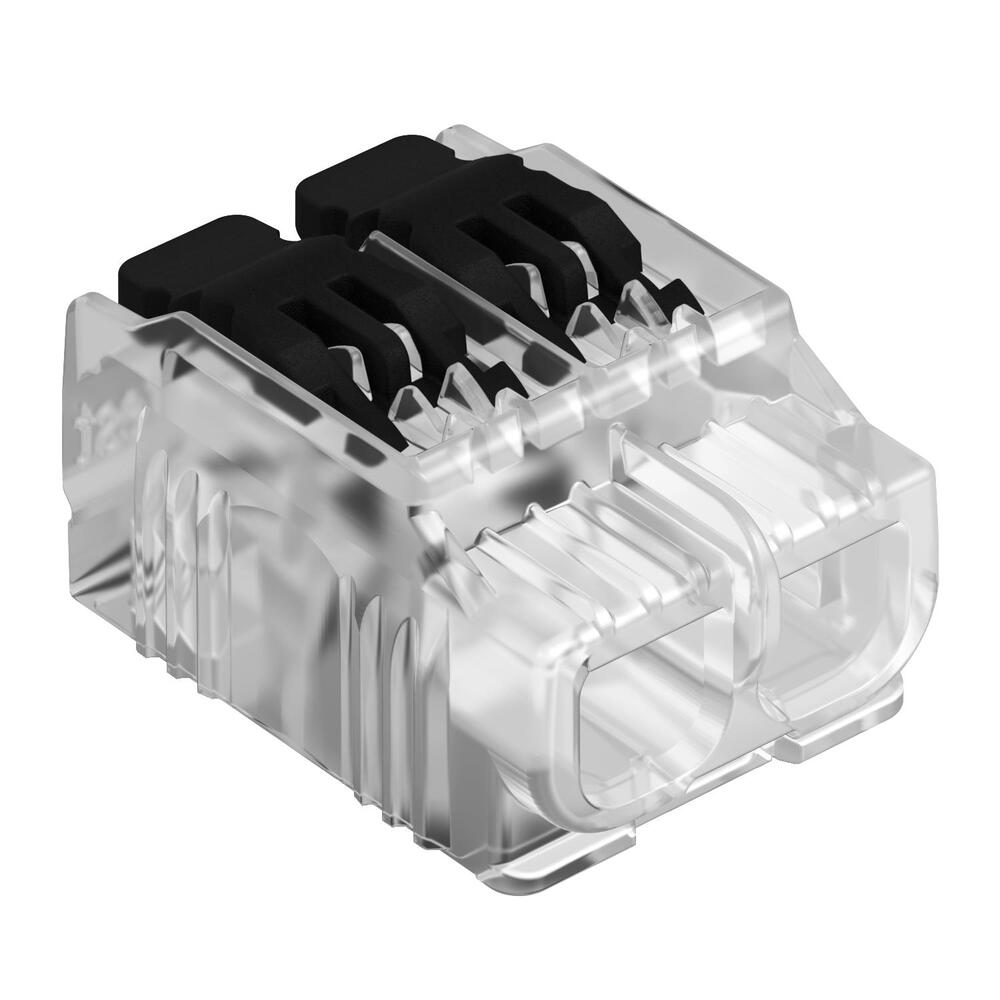

OBO Universal Lever Terminal 2 Rigid Flexible Wire Connector - 2054422 [100 Pieces]
![OBO Universal Lever Terminal 2 Rigid Flexible Wire Connector - 2054422 [100 Pieces]](http://tameson.com/cdn/shop/files/e3zm7-00.66e1a338.jpg?v=1735763422)
![OBO Universal Lever Terminal 2 Rigid Flexible Wire Connector - 2054422 [100 Pieces]](http://tameson.com/cdn/shop/files/e3zm7-01.d0fddbb3.jpg?v=1735763422)
![OBO Universal Lever Terminal 2 Rigid Flexible Wire Connector - 2054422 [100 Pieces]](http://tameson.com/cdn/shop/files/e3zm7-00.66e1a338.jpg?height=232&v=1735763422&width=232)
![OBO Universal Lever Terminal 2 Rigid Flexible Wire Connector - 2054422 [100 Pieces]](http://tameson.com/cdn/shop/files/e3zm7-01.d0fddbb3.jpg?height=232&v=1735763422&width=232)
EN 60998-certified screwless terminal connector for electrical conductors supporting both rigid and flexible wires. Features direct plug-in capability for rigid conductors and easy-release lever mechanism. Accommodates 2x 0.2-4 mm² conductors with 11-12mm strip length. Rated for 450V/32A operation with maximum ambient temperature of 85°C. Includes accessible top-mounted test point for phase testers up to 2mm diameter.
- Regular price
- $46.85 USD
We sell only to registered businesses
Description
EN 60998-certified screwless terminal connector for electrical conductors supporting both rigid and flexible wires. Features direct plug-in capability for rigid conductors and easy-release lever mechanism. Accommodates 2x 0.2-4 mm² conductors with 11-12mm strip length. Rated for 450V/32A operation with maximum ambient temperature of 85°C. Includes accessible top-mounted test point for phase testers up to 2mm diameter.
Pros:
- Screwless design for quick installation
- Compatible with both rigid and flexible conductors
- Easy-access test point for phase testing
- High current rating of 32A at 450V
