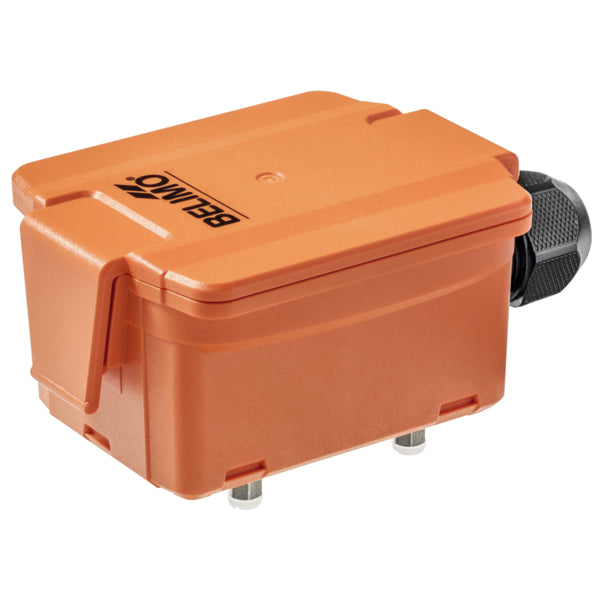

Belimo Leakage Switch 24VAC/DC Active 22HL-10
This Belimo leakage switch is designed to detect fluid leaks. It's primarily used for alarm, control, and monitoring applications in various areas, such as containers, false floors, suspended ceilings, or rooms, to prevent the unwanted entry of water. The device comes with a relay contact that can be connected to controller and display systems or serially connected with a valve to immediately halt water flow at the onset of liquid leakage. Additionally, the device's height can be adjusted to suit different liquid levels, thereby customizing the sensor's response time based on the level of liquid that needs to be detected. The supply voltage is 24 V AC/DC. The leakage switch has a protection rating of IP65. The changeover contact of the output signal leakage detector relay is potential-free, with a minimum switching current of 5mA at 10V and a maximum switching current of 1A at 24V.
- Regular price
- $124.80 USD
We sell only to registered businesses
Description
This Belimo leakage switch is designed to detect fluid leaks. It's primarily used for alarm, control, and monitoring applications in various areas, such as containers, false floors, suspended ceilings, or rooms, to prevent the unwanted entry of water. The device comes with a relay contact that can be connected to controller and display systems or serially connected with a valve to immediately halt water flow at the onset of liquid leakage. Additionally, the device's height can be adjusted to suit different liquid levels, thereby customizing the sensor's response time based on the level of liquid that needs to be detected. The supply voltage is 24 V AC/DC. The leakage switch has a protection rating of IP65. The changeover contact of the output signal leakage detector relay is potential-free, with a minimum switching current of 5mA at 10V and a maximum switching current of 1A at 24V.
Pros:
- Well-protected against environmental elements with an IP65 rating, ensuring durability in harsh conditions
