Reference: E3YTQ
Brand: Henco
Mfr. Part: CU-ATHERMB-HC

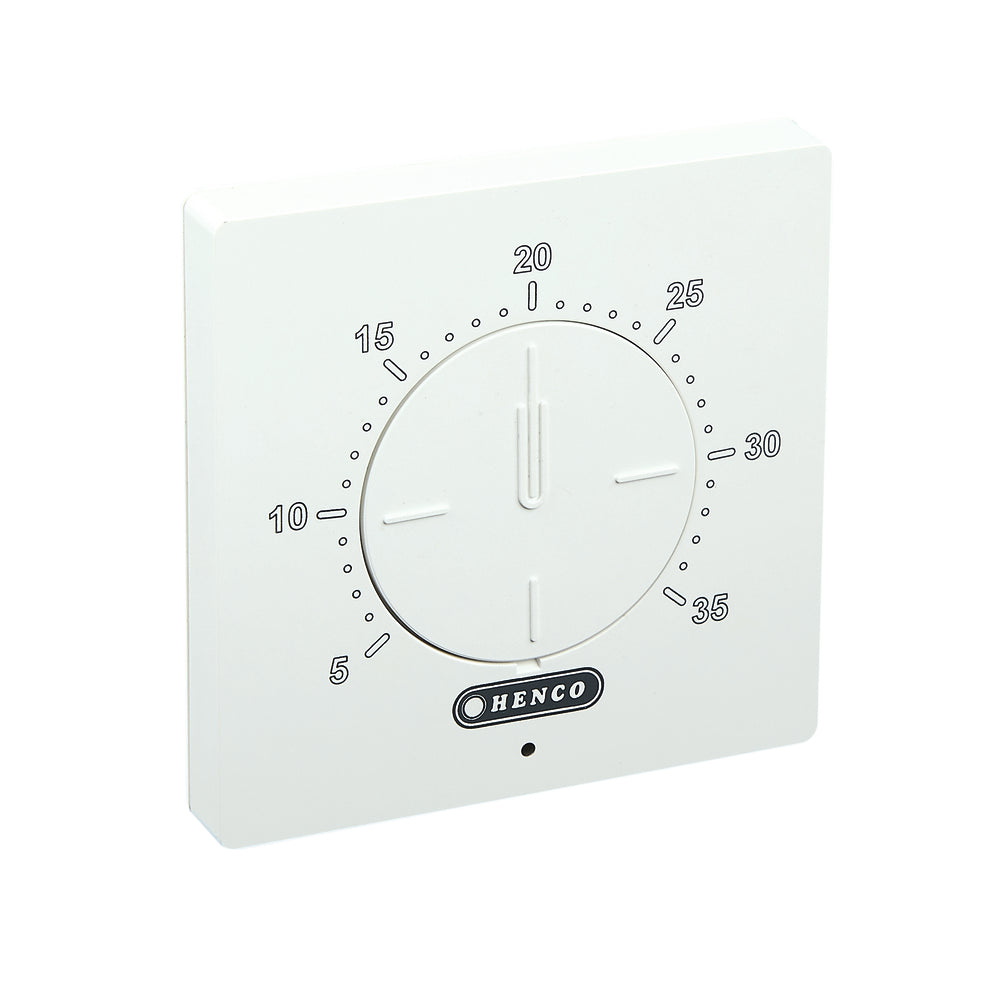

Surface-mounted analog room thermostat for heating and cooling systems. Features 24V AC power supply, 3 and 4-wire configuration, and changeover contact (NO/NC). Operating temperature range of 5-35°C with IP30 protection rating. Maximum contact load 4A. Unit measures 80mm in width and includes external sensor capability.

View all
$47.04 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 54 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications
Downloads

Description

Surface-mounted analog room thermostat for heating and cooling systems. Features 24V AC power supply, 3 and 4-wire configuration, and changeover contact (NO/NC). Operating temperature range of 5-35°C with IP30 protection rating. Maximum contact load 4A. Unit measures 80mm in width and includes external sensor capability.

Pros:

  • Dual heating and cooling functionality
  • Versatile 3 and 4-wire installation options
  • Wide temperature control range (5-35°C)
  • Supports both NO/NC contact configurations

Downloads

Brochure (EN)
pdf
Download
Product datasheet (EN)
pdf
Download
Installation and Maintenance (EN)
pdf
Download

Specifications

Model
On/Off
Type of power supply
24 V AC
Connection
3-/4-wire
With receiver
No
Measuring range (°C)i
5 °C to 35 °C
External sensor
Yes
Thermal feedback
None
Control characteristic
PID
Number of heater outputs
1
Suitable for cooling
Yes
Number of cooler outputs
1
Adjustable differential
No
Temperature readable
No
With sound indicator
No
Sensor/feeler type
Resistance sensor
Mounting method
Surface mounted (plaster)
Number of modules (module system)
1
With display
No
Operationi
Turn
Concealed operation
No
