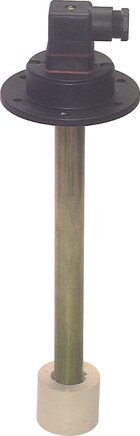

Float Level Switch 2 Switch Points 250mm Tube 1bar
Float level switch with two adjustable switch points and a 250 mm slide tube. Upper switch point L1 40 to 150 mm, lower L2 80 to 190 mm. It mounts on the standard breather filter flange to DIN 24557-2. Two level contacts, NO or NC, 30 V DC 10 W, max 0.5 A, angled plug connector to EN 175301-803 A. Polyamide housing, brass slide tube, max 1 bar (unpressurised tanks), IP65.
- Regular price
- $271.90 USD
We sell only to registered businesses
Description

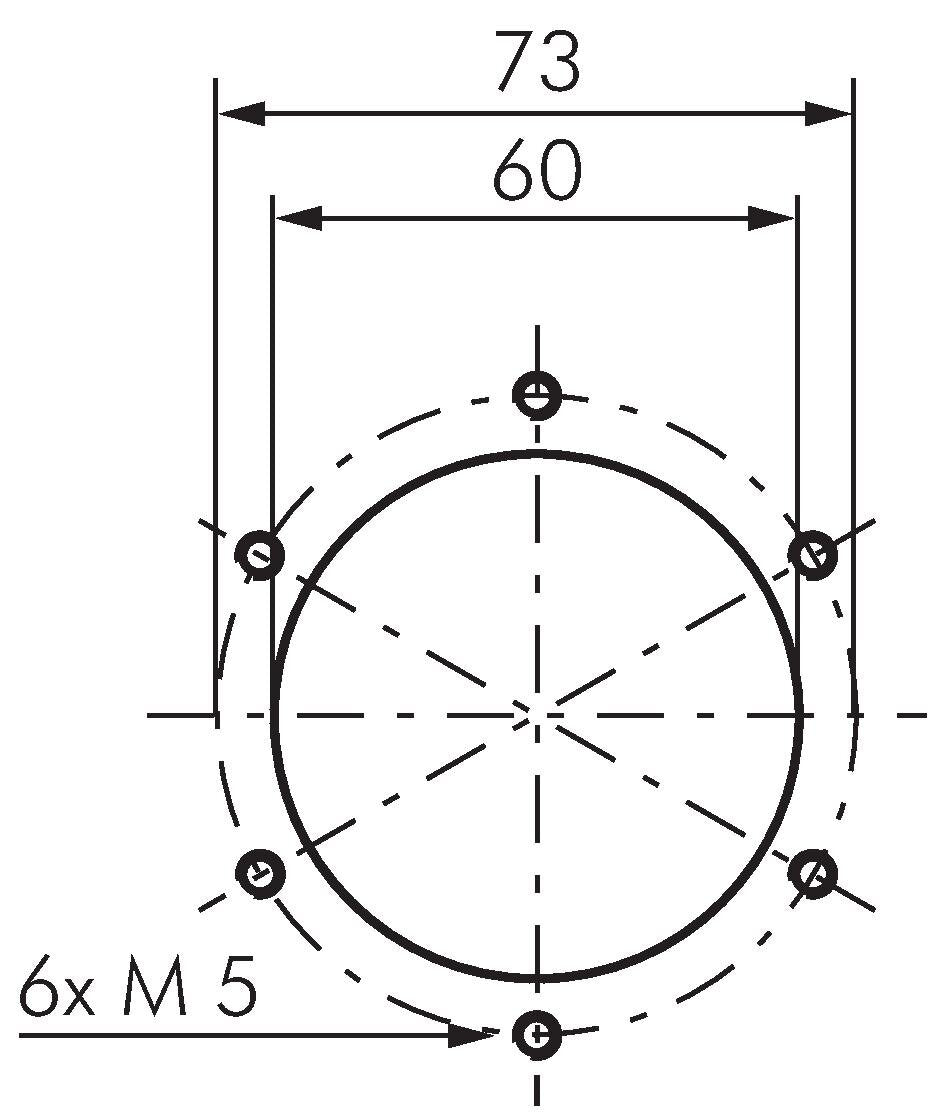

Mount it on the breather filter flange of the tank (bolt circle 73 mm, 6x M5). Set each switch point in 10 mm steps by moving its contact on the strip inside the slide tube, and rotate the contact to change it between NO and NC. Each contact switches when the float rises past it and switches back when the float falls past it again. Also suitable for slowly flowing media.
Pros:
- Two independent switch points in one device
- Switch points adjustable in 10 mm steps
- Each contact changes between NO and NC by rotating it
- Fits the standard breather filter flange on hydraulic tanks
Cons:
- Unpressurised tanks only (max 1 bar)
- No temperature switch - for overheating protection, choose the T70 version
Series:
Combination float level switches with two level switch points for unpressurised tanks in hydraulics, machine building, plant engineering and tank construction, also available with a +70 °C temperature switch (T70 versions). The flange fits the standard breather filter mounting on hydraulic tanks to DIN 24557-2. Both switch points move in 10 mm steps, and each contact changes between NO and NC when you rotate it on the contact strip. Slide tube 250 or 370 mm. Polyamide housing, brass slide tube, hard PUR float Ø44 x 36 mm, cork seal, max 1 bar, -20 to +80 °C, IP65. Level contacts 30 V DC, 10 W, max 0.5 A; temperature switch NC, 30 V DC, 100 W, max 2.5 A, closes again at about +57 to +63 °C. Media: water, hydraulic oil, machine oil, fuel and other liquids.
