Image may vary slightly
See specifications for accurate information.
Reference: F2ETG
Brand: Tameson

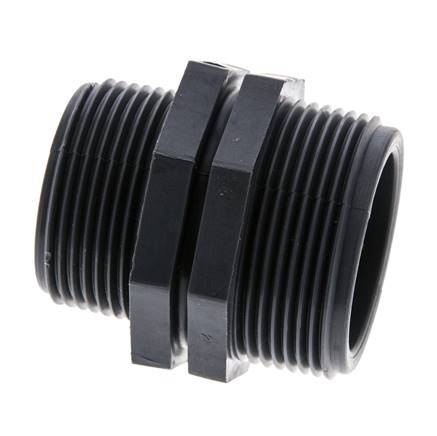

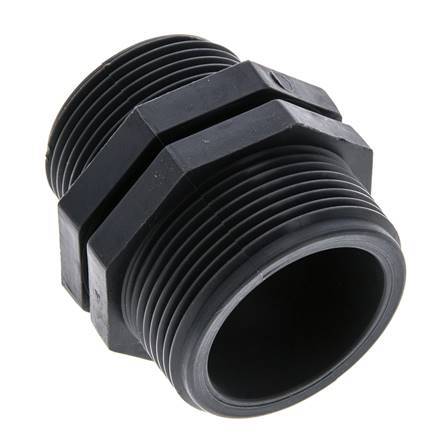

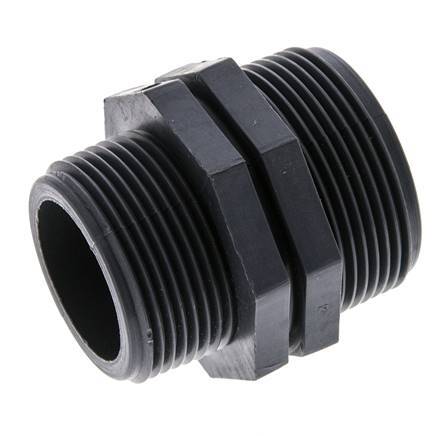

This reducing double nipple is made of PP (polypropylene) material that makes it suitable for applications within a temperature range from 5 to 80 °C (41 to 176 °F). The maximum operating pressure is 10 bar (140.5 psi). The body material is FDA approved.

Note: Never use plastic pipe fittings and pipes with compressed air or gas. For plastic-to-plastic threaded connections, it is not recommended to use tape or sealant containing PTFE.

View all
$15.10
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 26 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This reducing double nipple is made of PP (polypropylene) material that makes it suitable for applications within a temperature range from 5 to 80 °C (41 to 176 °F). The maximum operating pressure is 10 bar (140.5 psi). The body material is FDA approved.

Note: Never use plastic pipe fittings and pipes with compressed air or gas. For plastic-to-plastic threaded connections, it is not recommended to use tape or sealant containing PTFE.

Downloads

Specifications

Thread
1 1/2 inch
Thread (smaller)
1 1/4 inch
Connection type
Outer thread cylindrical BSPP-G
Material
Housing material.
Polypropylene (PP)
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
10
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
5
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
80
Approval
Certifications or approvals indicating safety, quality, or performance standards met.
FDA
Fitting features
Reducing
Length (mm)
58
Material connection 1
Polypropylene (PP)
Material connection 2
Polypropylene (PP)
Shape
Straight
Wrench width (mm)
54
With drain
No
