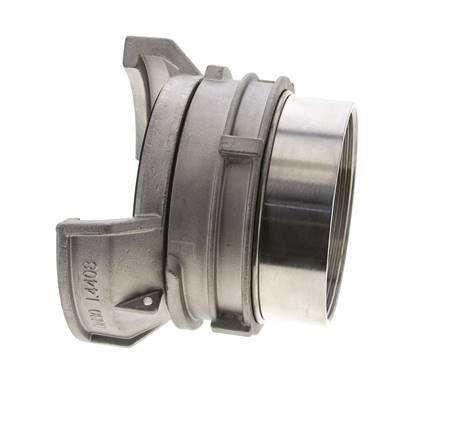

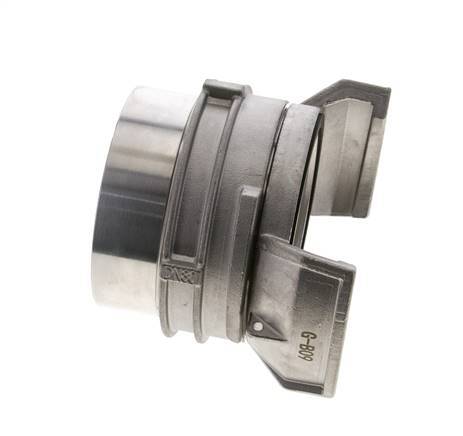

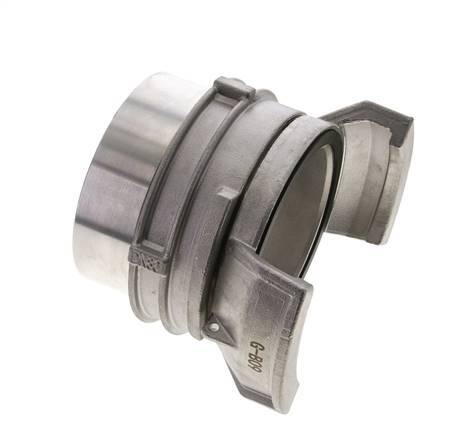

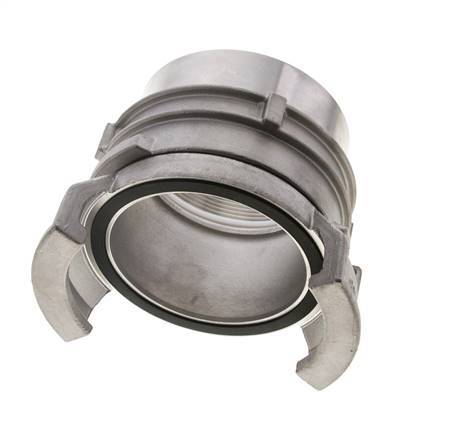

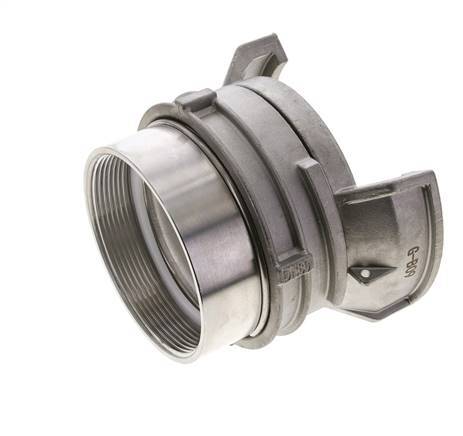

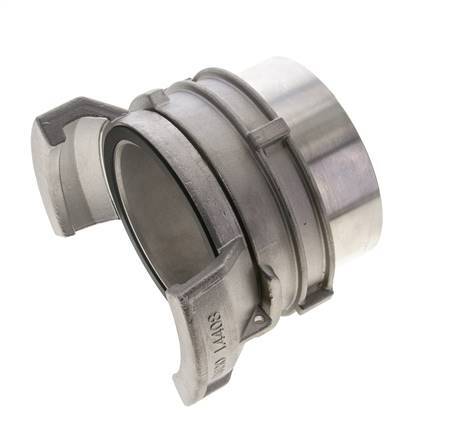

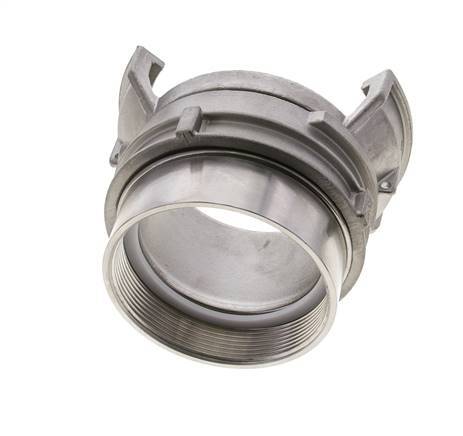

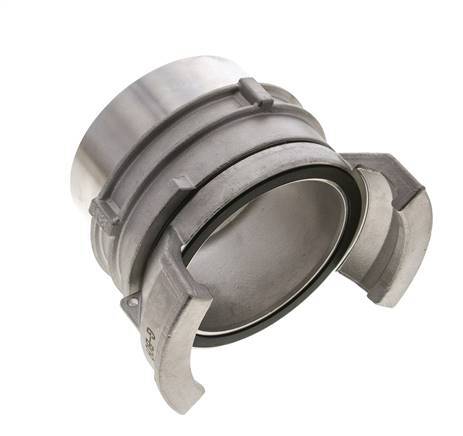

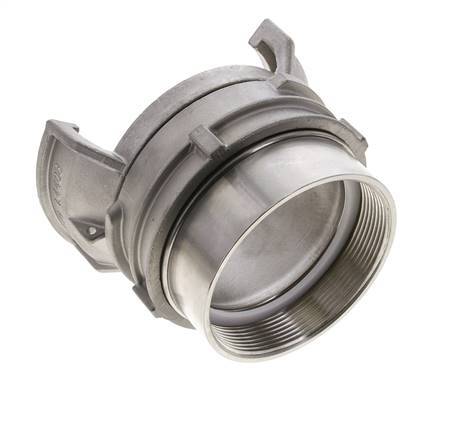

Guillemin DN 80 Stainless Steel Coupling G 3'' Female Threads With Lock
This is a DN 80 Guillemin coupling with G 3'' female threads. It is made of stainless steel with an NBR seal. The maximum pressure is 16 bar (232 psi). Suitable for -10 to 80 °C (14 to 176 °F). This coupling is equipped with a locking device.
- Regular price
- $156.71 USD
We sell only to registered businesses
Description
This is a DN 80 Guillemin coupling with G 3'' female threads. It is made of stainless steel with an NBR seal. The maximum pressure is 16 bar (232 psi). The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). This coupling is equipped with a locking device.
The couplings adhere to NFE 29572 and EN 14420-8. Two identical couplings are joined by interlocking the jaws and turning the lock rings. Use a Guillemin wrench for sufficient closure.
Note: At least one of the two couplings needs to have a locking ring and only versions with locking rings have a soft seal. Typically, the fixed coupling (i.e. on a tank) won't have a locking ring and the other coupling (i.e. on a hose) will have a locking ring and soft seal.
Pros:
- Simple and easy connection
- Has a locking ring and soft seal
- Large free flow area
- Stainless steel couplings have excellent corrosion resistance
- Suitable for water, fluids, hydrocarbons, chemicals, and dry loose materials
Cons:
- Not suitable for steam and other gases
