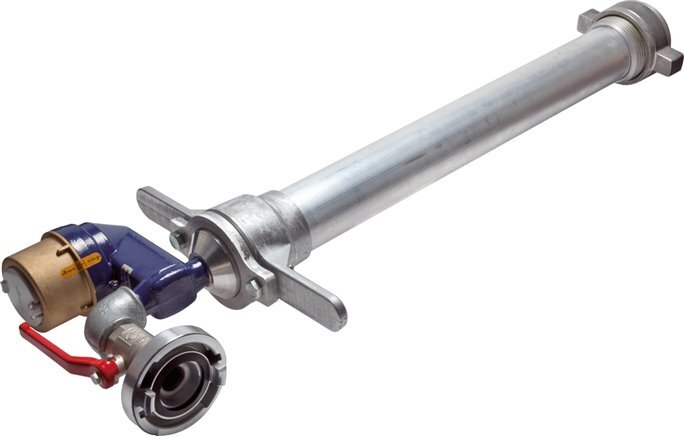

DN 80 52-C Standpipe for Underfloor Hydrants with Water Meter 16 l/min
Image may vary slightly
See specifications for accurate information.
Reference:
F24MT
Brand:
Tameson

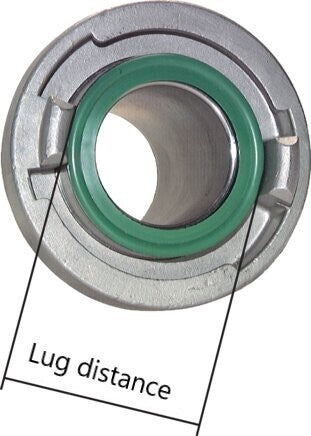

This is a DN 80 standpipe for underfloor hydrants with Storz connection of 52-C (lug distance of 66 mm). It is fitted with a water meter. The maximum operating pressure is 16 bar (232 psi). The coupling is suitable for temperatures between -40 to 110 °C (-40 to 230 °F). The flow rate is 16.67 l/min.
- Regular price
- $974.37
excl VAT
Shipping to United States: Free
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 38 - 39 business days
Description
Specifications
Downloads
Description
This is a DN 80 standpipe for underfloor hydrants with Storz connection of 52-C (lug distance of 66 mm). It is fitted with a water meter. The maximum operating pressure is 16 bar (232 psi). The coupling is suitable for temperatures between -40 to 110 °C (-40 to 230 °F). The flow rate is 16.67 l/min.
Pros:
- Equipped with a calibrated and certified water meter
- Equipped with a 52-C Storz coupling and a ball valve
- Quick connection and release by twisting 120 degrees
