DN 80 52-C Standpipe for Above Floor Hydrants Rotatable

DN 80 52-C Standpipe for Above Floor Hydrants Rotatable
DN 80 52-C Standpipe for Above Floor Hydrants Rotatable
Image may vary slightly
See specifications for accurate information.
Reference: F24MJ
Brand: Tameson

This is a DN 80 standpipe for above floor hydrants with Storz connection of 52-C (lug distance of 66 mm). It has a rotatable head. The maximum operating pressure is 16 bar (232 psi). The coupling is suitable for temperatures between -40 to 110 °C (-40 to 230 °F).

View all
$404.17
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 4 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

This is a DN 80 standpipe for above floor hydrants with Storz connection of 52-C (lug distance of 66 mm). It has a rotatable head. The maximum operating pressure is 16 bar (232 psi). The coupling is suitable for temperatures between -40 to 110 °C (-40 to 230 °F).

Pros:

  • Quick connection and release by twisting 120 degrees

Downloads

Specifications

Storz size
52-C (Storz)

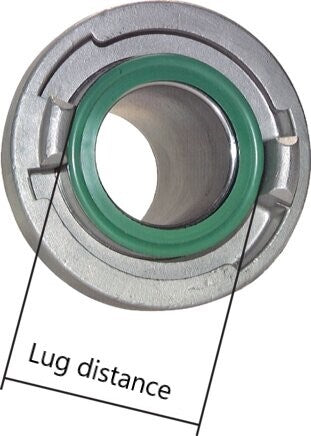

Lug distance 1
66 mm
Hydrant features
Rotatable
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
110
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-40
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
16
Number of Storz connections
1
Nominal inner diameter connection 1
DN 80
