Reference: F225B
Brand: Tameson

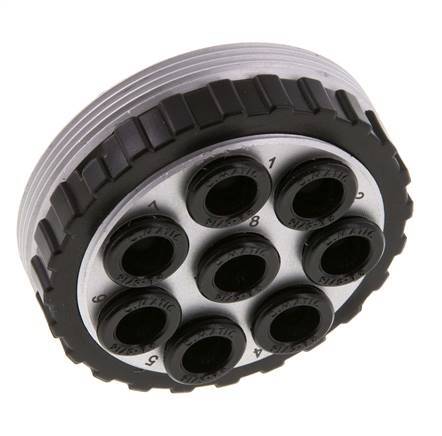

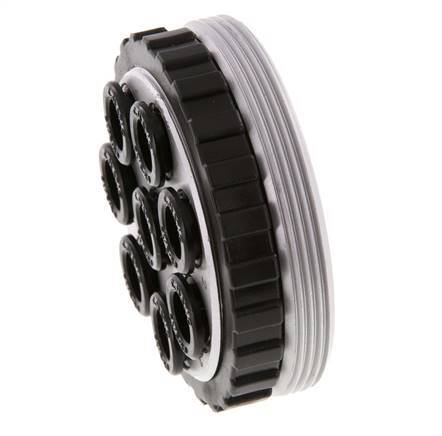

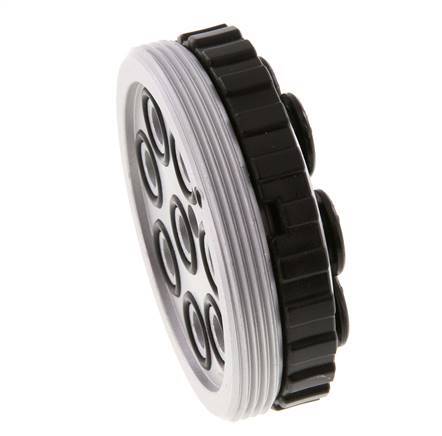

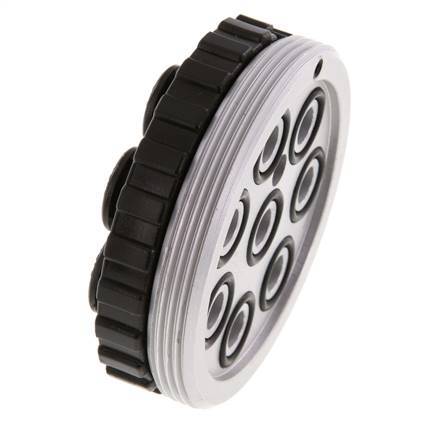

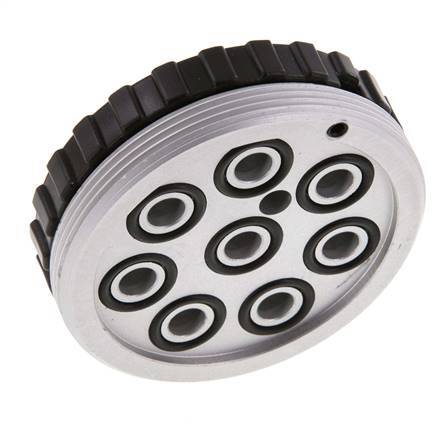

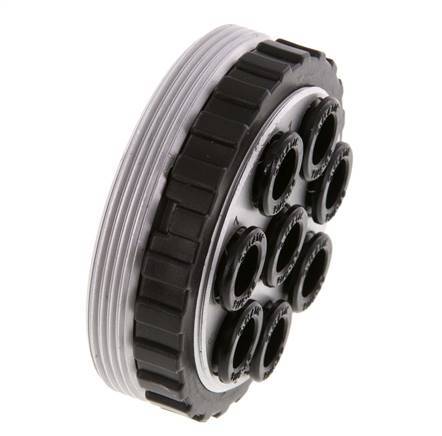

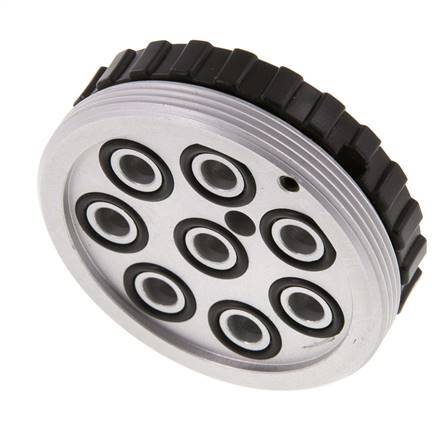

Polyoxymethylene (POM) multi-coupling socket with eight 8 mm push-in connections. The operating pressure range is -0.99 to 12 bar (-14 to 174 psi), making them suitable for vacuums. The coupling is suitable for temperatures between -20 to 70 °C (-4 to 158 °F). The seal material is NBR.

View all
$151.68
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 7 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

Polyoxymethylene (POM) multi-coupling socket with eight 8 mm push-in connections. With this multi-coupling setup, you can easily have a connection hub of up to 8 pneumatic lines. A pneumatic coupling is used to quickly connect air tools to a compressed air line.

This coupling is suitable for vacuum applications. The operating pressure range is -0.99 to 12 bar (-14 to 174 psi). The coupling is suitable for temperatures between -20 to 70 °C (-4 to 158 °F). The seal material is NBR. It has a round design.

Note: Sleeves and plugs will only pair up when they have a corresponding line at the other end of the connection.

Pros:

  • Multi-couplings are used for comfortable and non-interchangeable coupling of several lines with only one coupling
  • Cost efficient and compact design.
  • It can be used for vacuum applications

Downloads

Specifications

Push-in connection
Size of the push-in connection port.
8 mm
Connection type
Push-in
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Polyoxymethylene (POM)
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
NBR (nitrile rubber)
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
12
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-20
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
70
Coupling features
Vacuum
Min pressure (bar)
-0.99
Shape
Coupling (female)
Number of outlets
8
With dust cap
No
