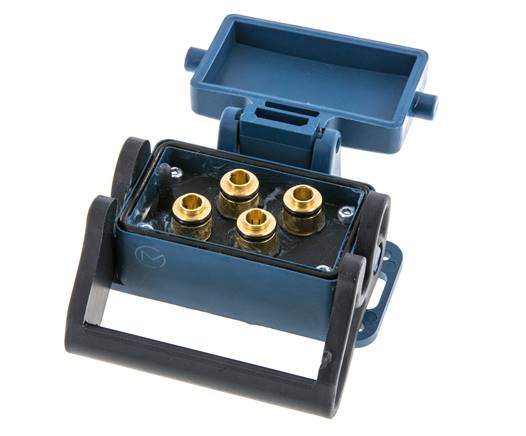

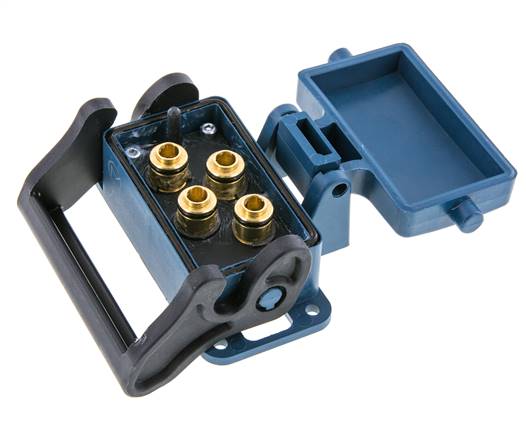

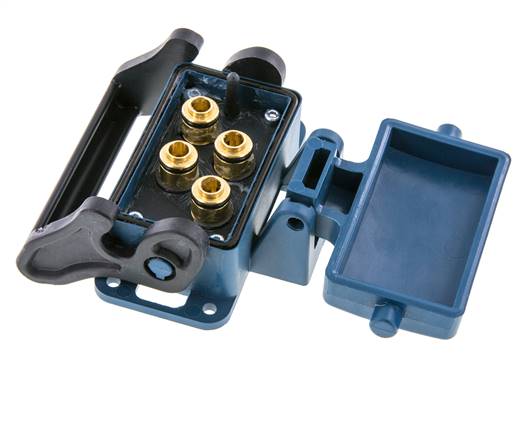

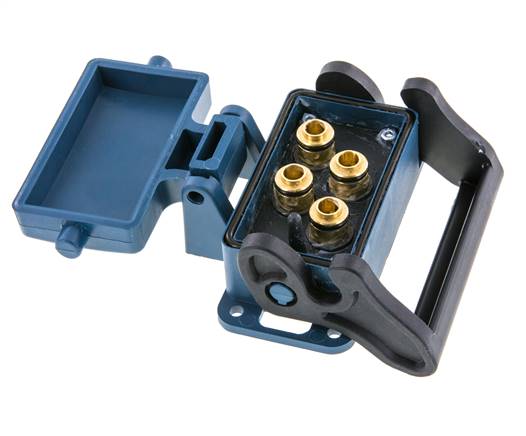

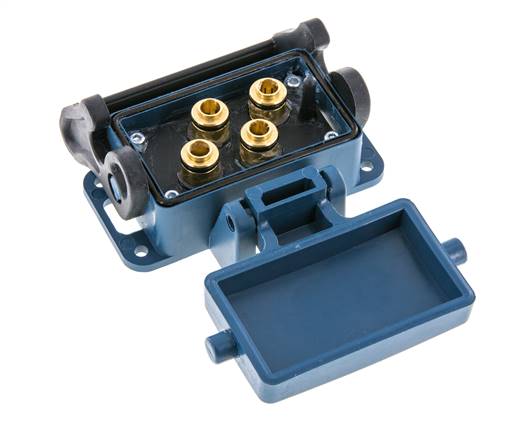

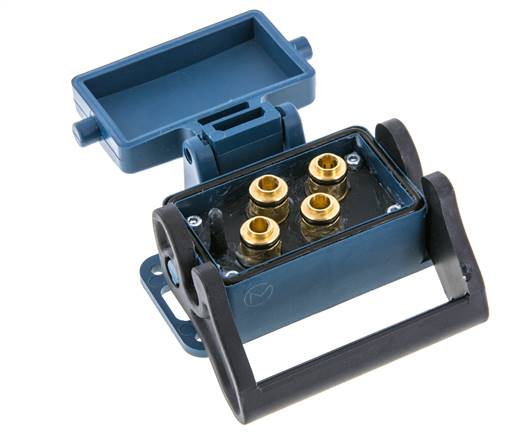

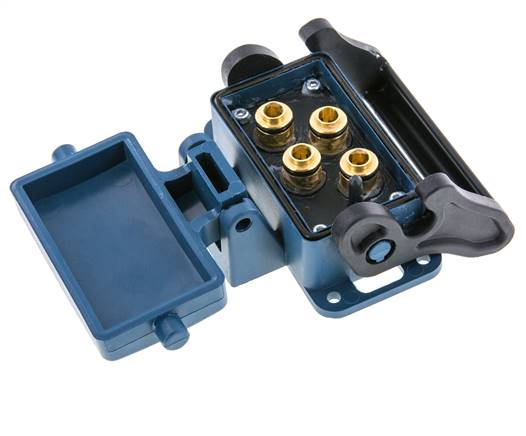

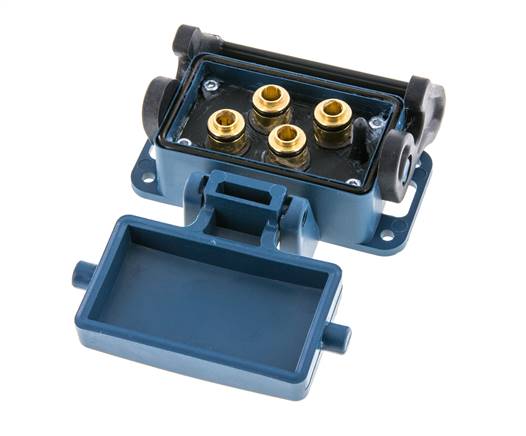

Brass Multi-coupling Socket 4x8 mm Push-in Connections Unlocking Protection Double Shut-Off
Brass multi-coupling socket with four 8 mm push-in connections. The coupling has a non-return valve to prevent backflow and the push-in socket also closes when disconnected. The socket has a durable ball lock design. The maximum operating pressure is 7 bar (102 psi). The coupling is suitable for temperatures between -20 to 70 °C (-4 to 158 °F). The seal material is NBR.
- Regular price
- $122.74
Description
Brass multi-coupling socket with four 8 mm push-in connections. With this multi-coupling setup, you can easily have a connection hub of up to 4 pneumatic lines. A pneumatic coupling is used to quickly connect air tools to a compressed air line.
The coupling has a non-return valve to prevent backflow and the push-in socket also closes when disconnected. This is considered a double-sided shut-off design. This is considered a double-sided shut-off design. The socket has a durable ball lock design to prevent any accidental de-coupling. The maximum operating pressure is 7 bar (102 psi). The coupling is suitable for temperatures between -20 to 70 °C (-4 to 158 °F). The seal material is NBR. This product is considered size 0, suitable for covers that are also size 0.
Note: Plugs and sleeves can only be coupled together if they are the same size and same number of lines.
Pros:
- Multi-couplings are used for comfortable and non-interchangeable coupling of several lines with only one coupling
- The socket has a double sided shut-off design, which keeps the line pressurized and prevents backflow
- It has a ball lock design to prevent any accidental decoupling
