Reference: AF-CC-X2
Brand: JP Fluid Control
Mfr. Part: AF-CC

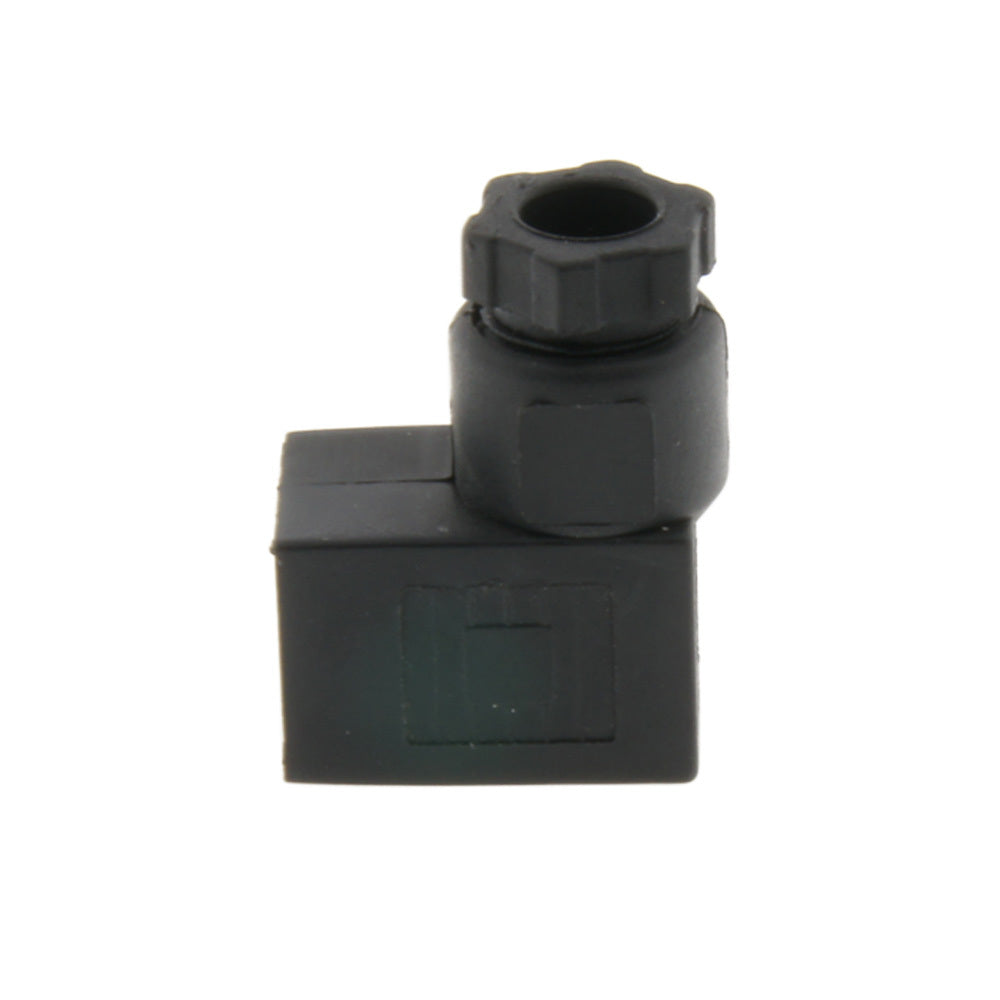

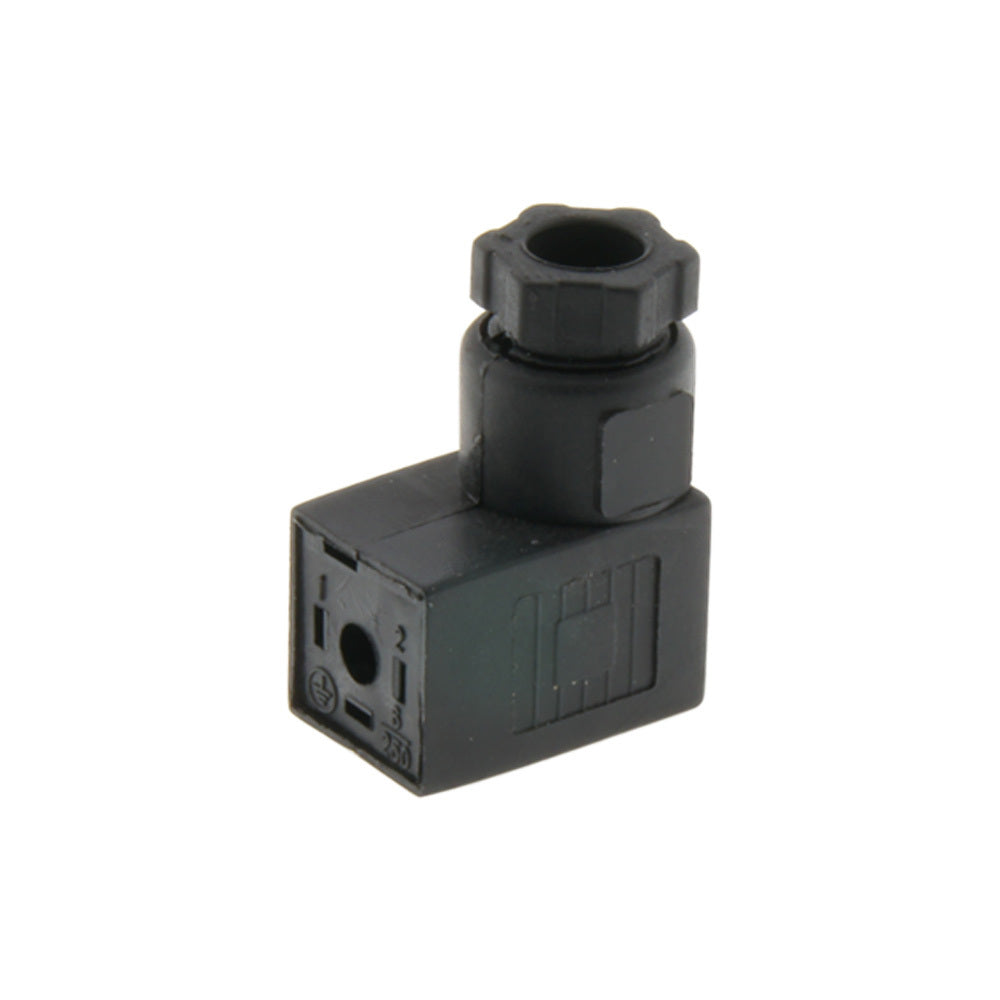

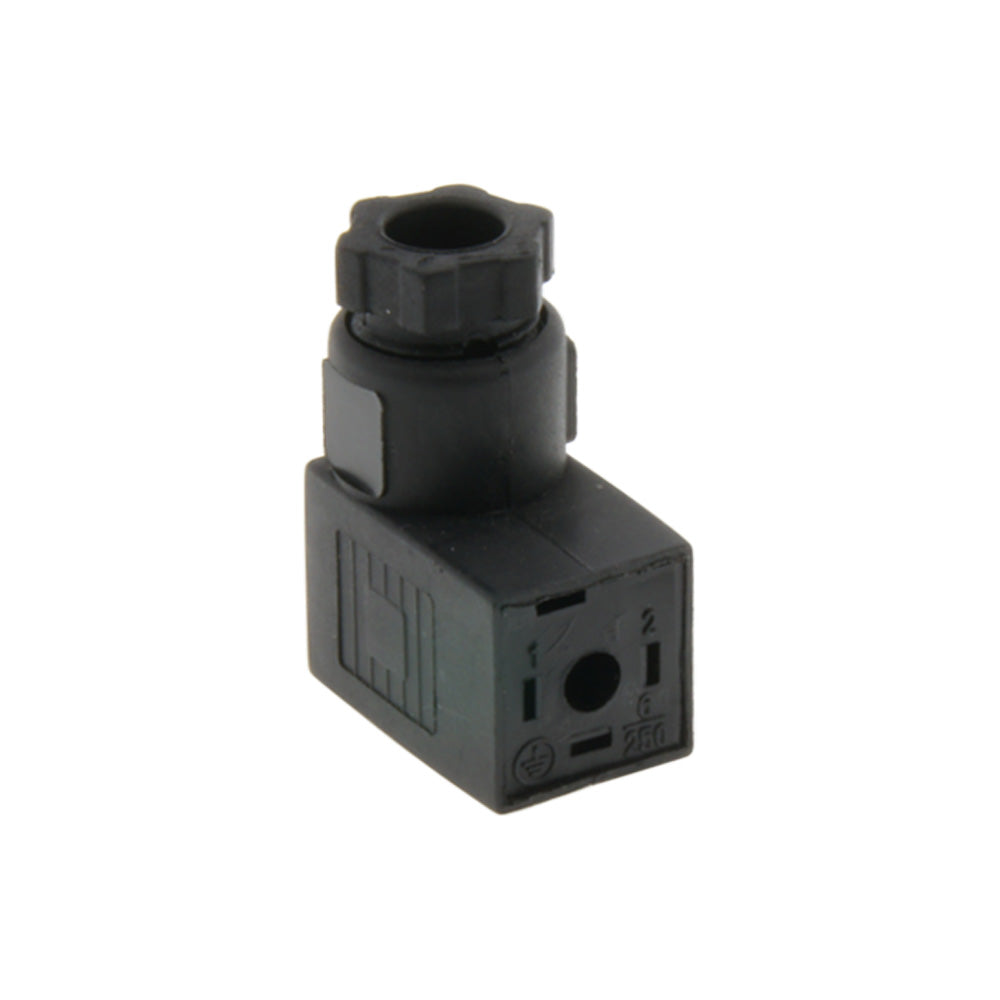

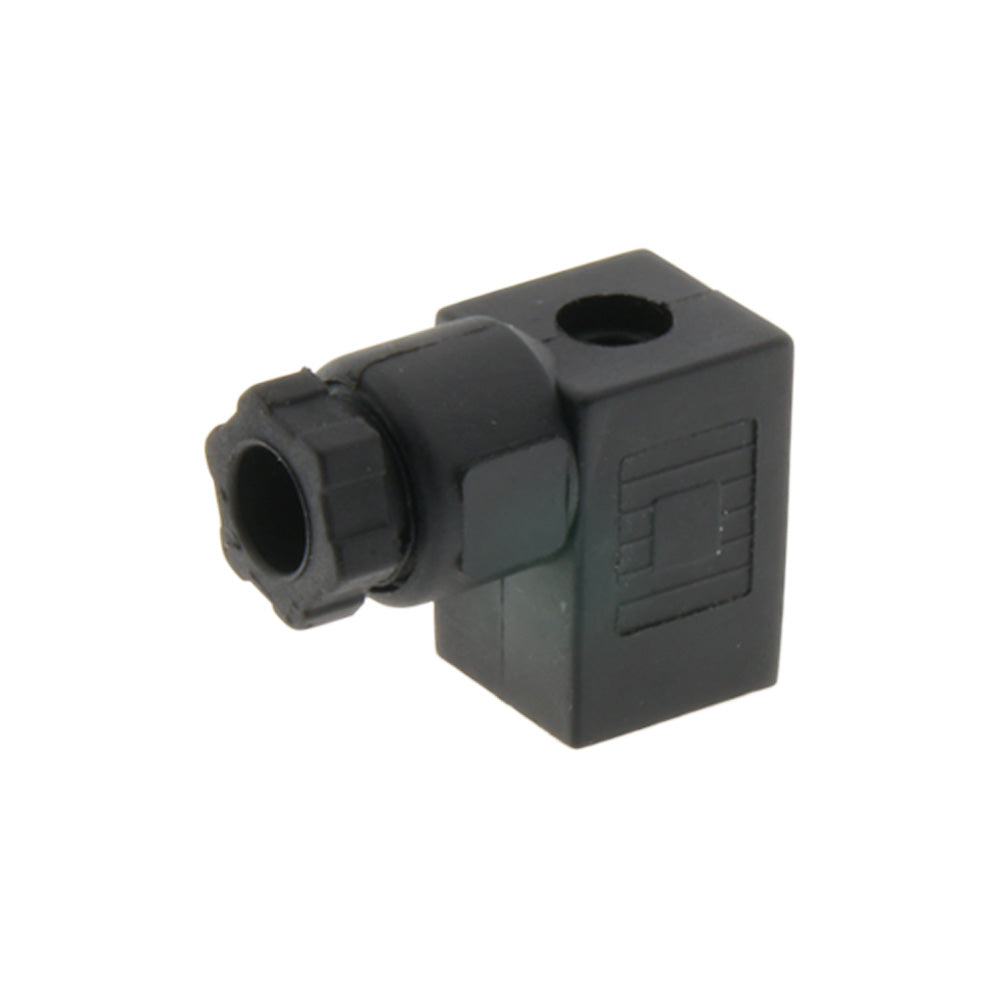

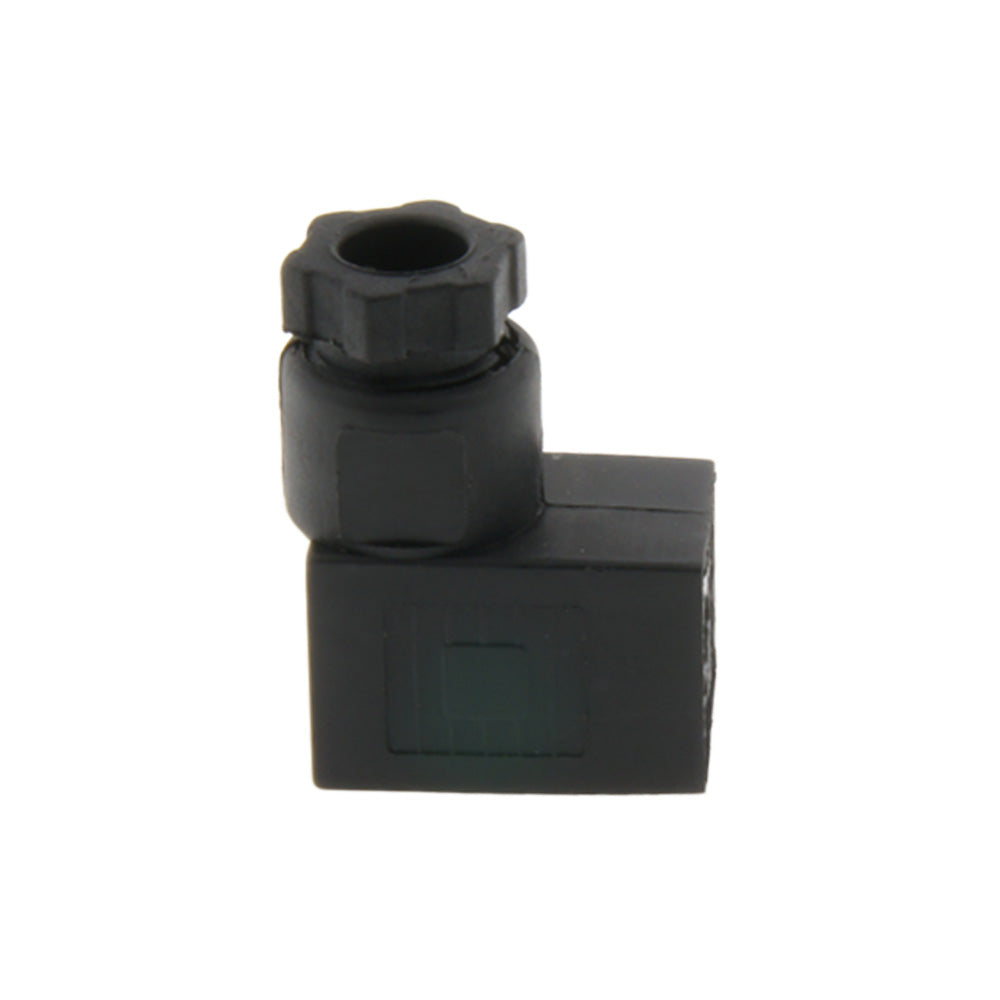

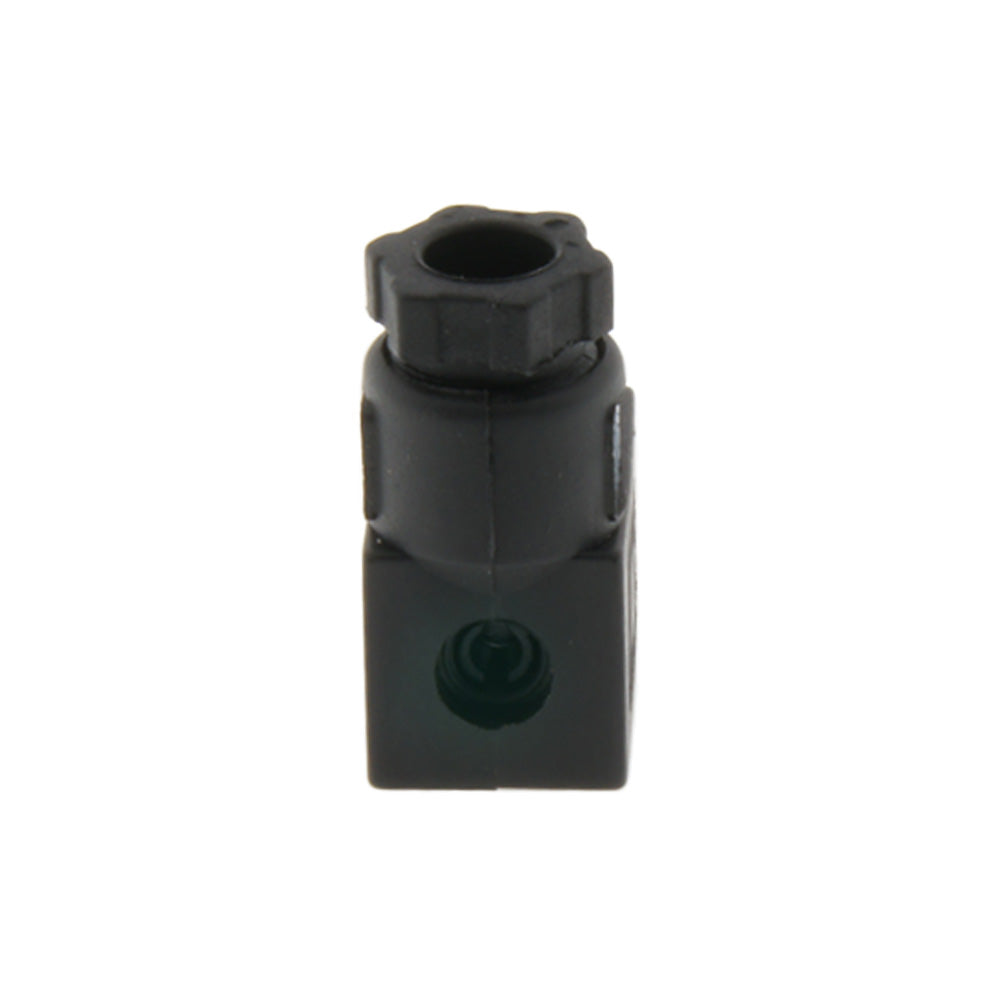

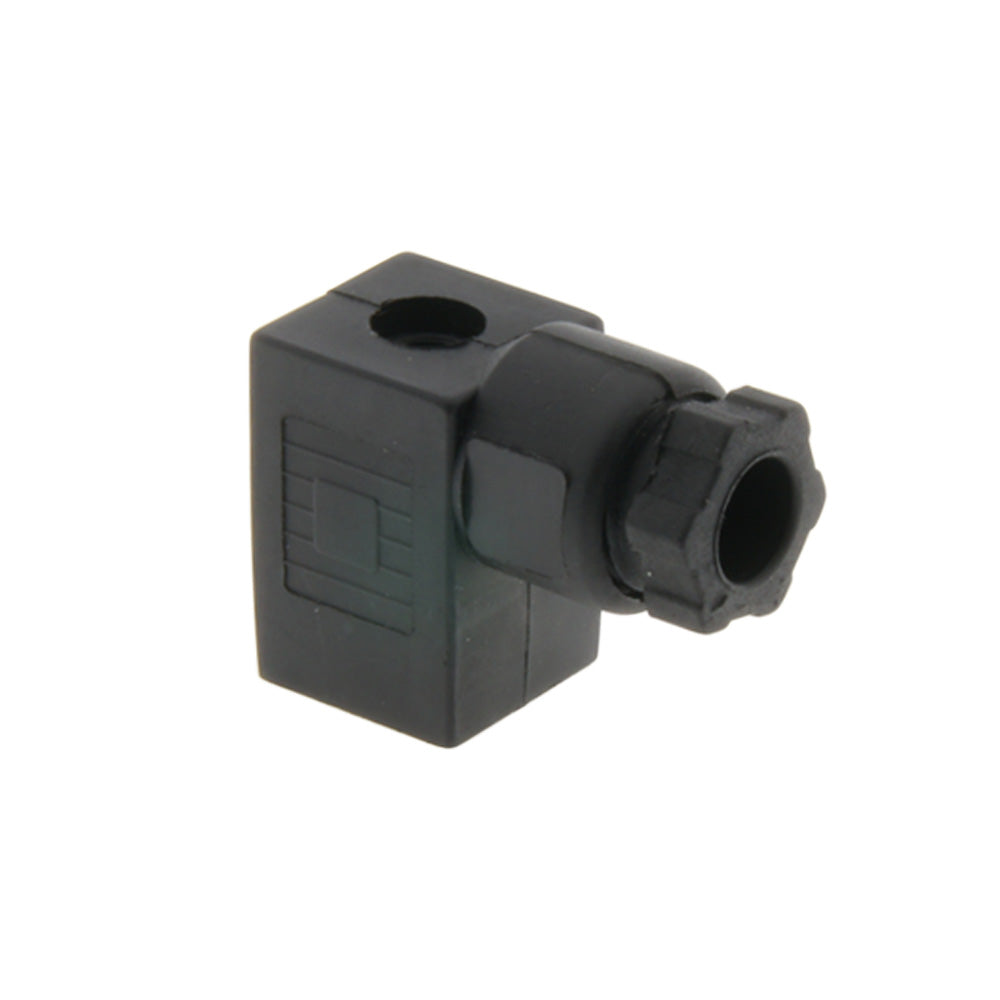

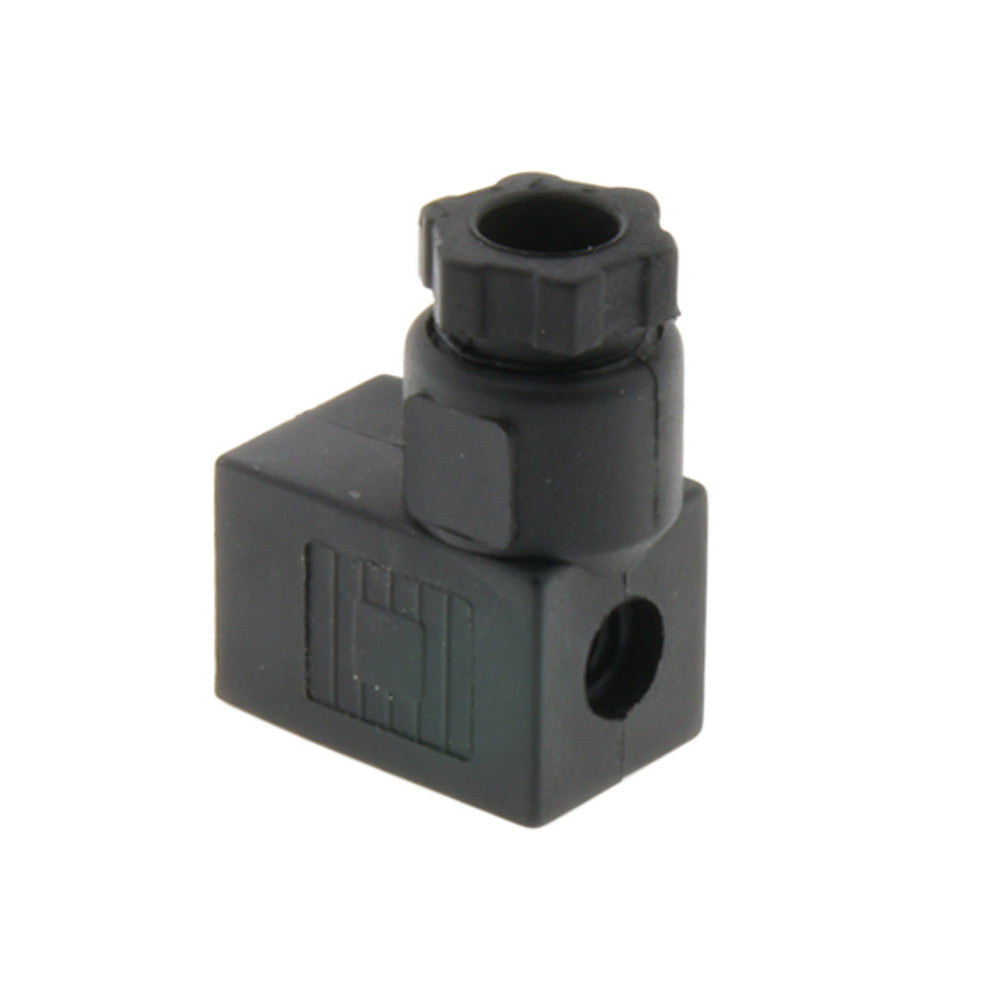

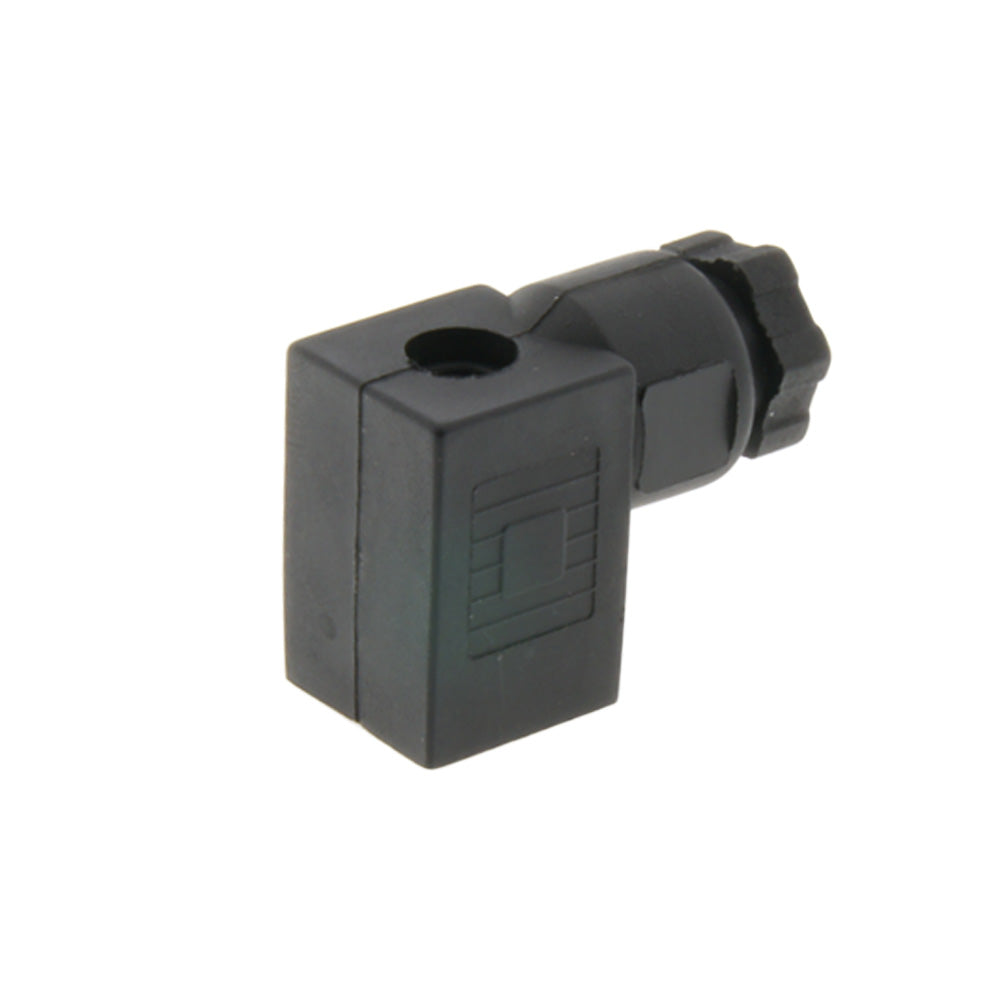

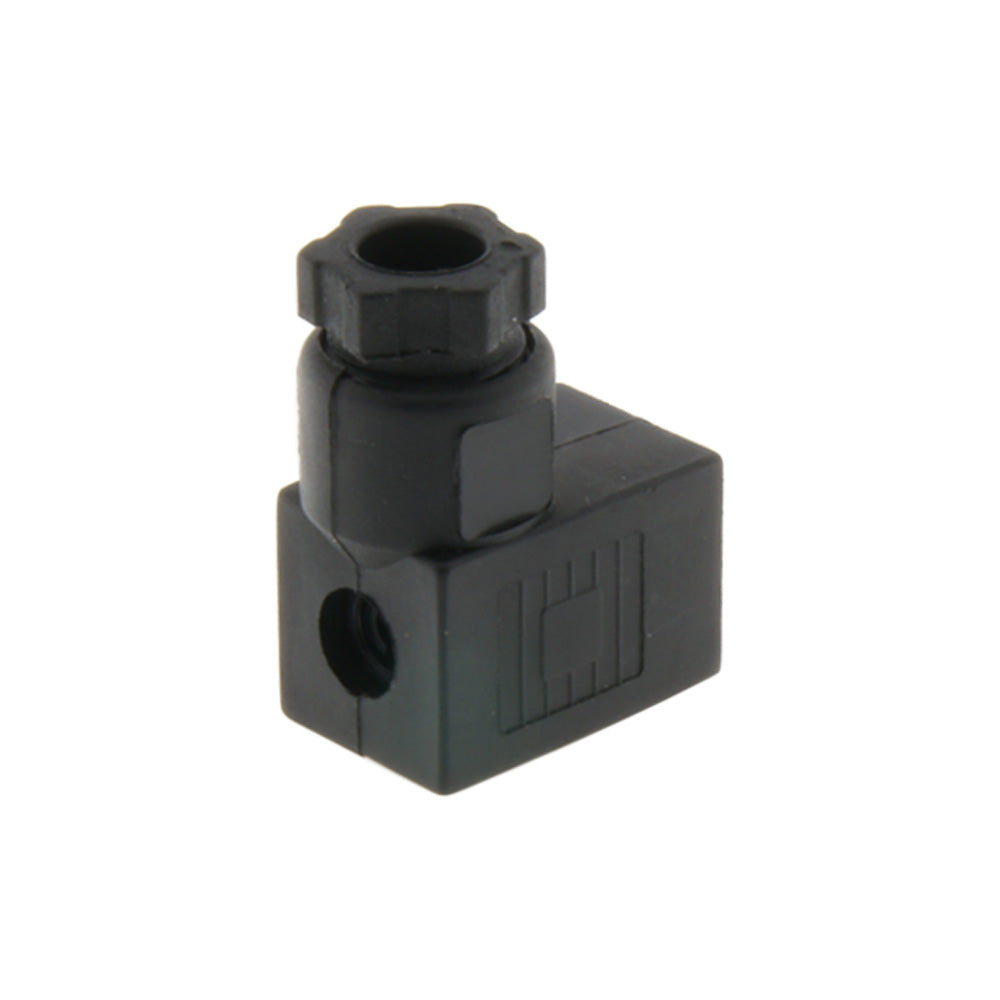

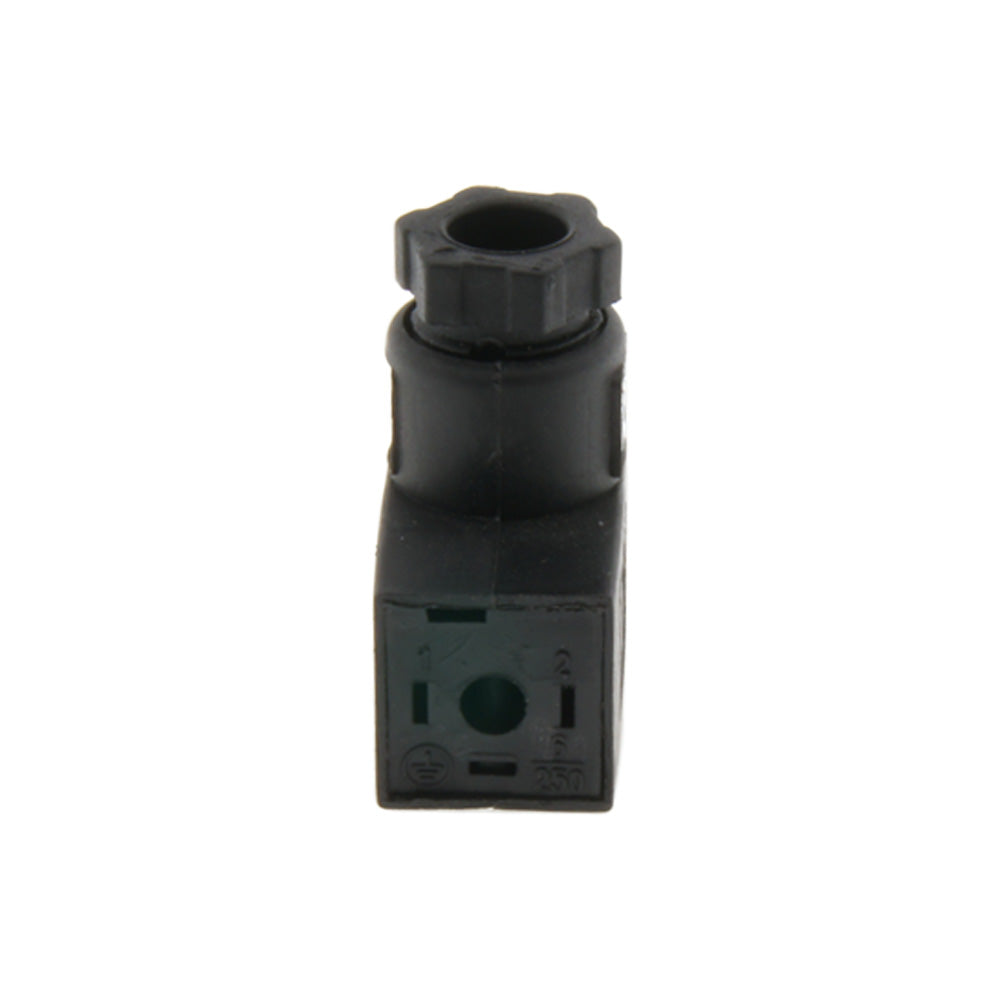

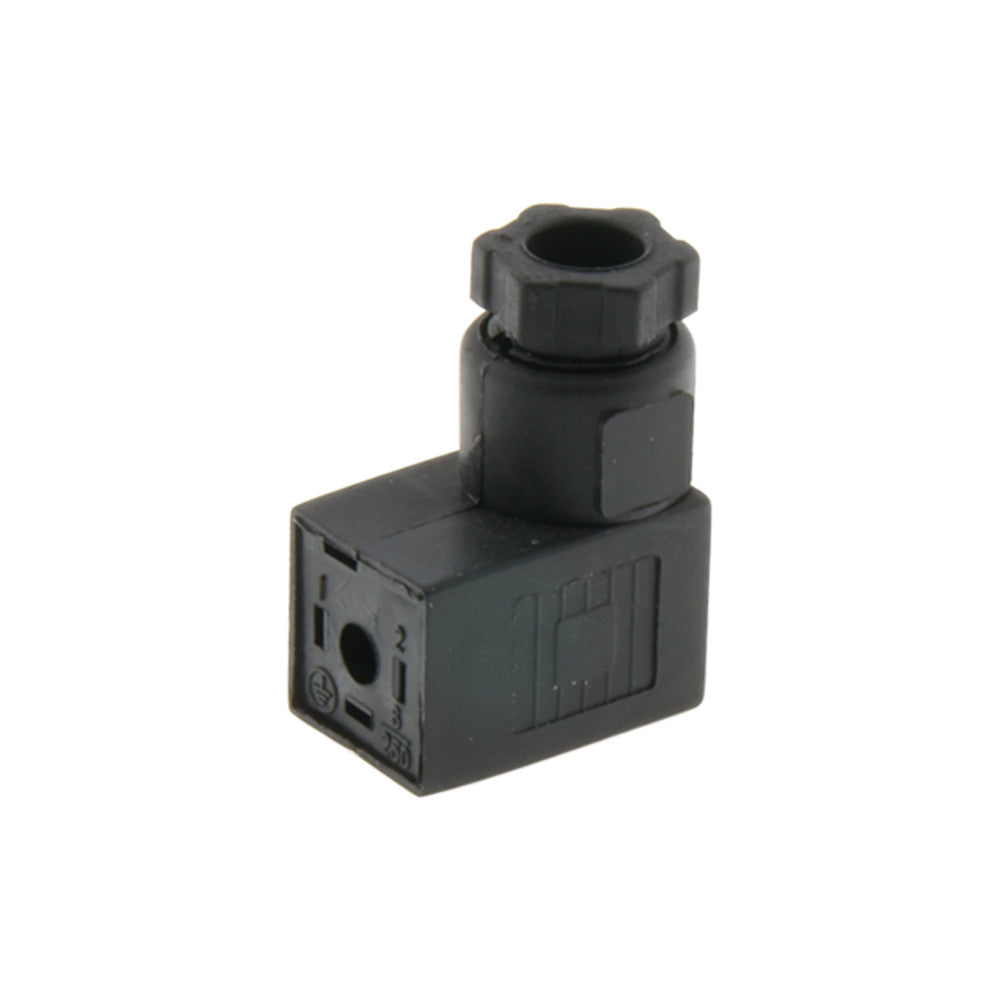

DIN - C connector (IP65). Suitable for solenoid valves with a DIN - C connector for voltages from 12V up to 400V.

Contains 2 pieces

View all
$6.69 USD
excl VAT
In stock Ships in 50d Not available Not available
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 50 days. Up to 50 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Expected delivery in 52–54 business days
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD (excl VAT)

We sell only to registered businesses

Customers rate us: 4.80 / 5

666 reviews at TrustedShops

Description
Specifications
Related products

Description

DIN-C connector (DIN43650C) for solenoid valves.

Parameters

ParameterValue
Type43650C
Pin distanceDIN - C mm
Version2+1 earth
Protection ClassIP65
Voltage12-400V AC/DC
Nominal current10A
Max. cable size≤3x1.5mm2
Fixing screwM3x28

Dimensions


Installation

  • Connect the terminals (1) and (2) to the connector. With AC, polarity is not important. Always connect to the ground, don't use the piping as earthing.
  • Mount the connector and make sure no moisture can enter between coil and connector.
  • Use a round cable. Make sure that drops cannot slide along the cable into the connector.
