Solenoid Valve G3/8'' NC Brass FKM -1-10bar/-15-145psi 24VDC 2875 239086

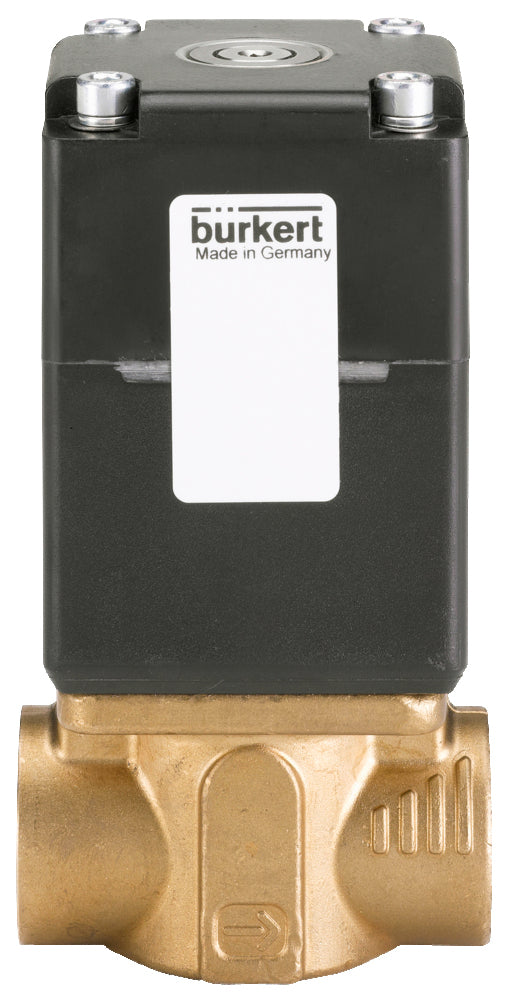

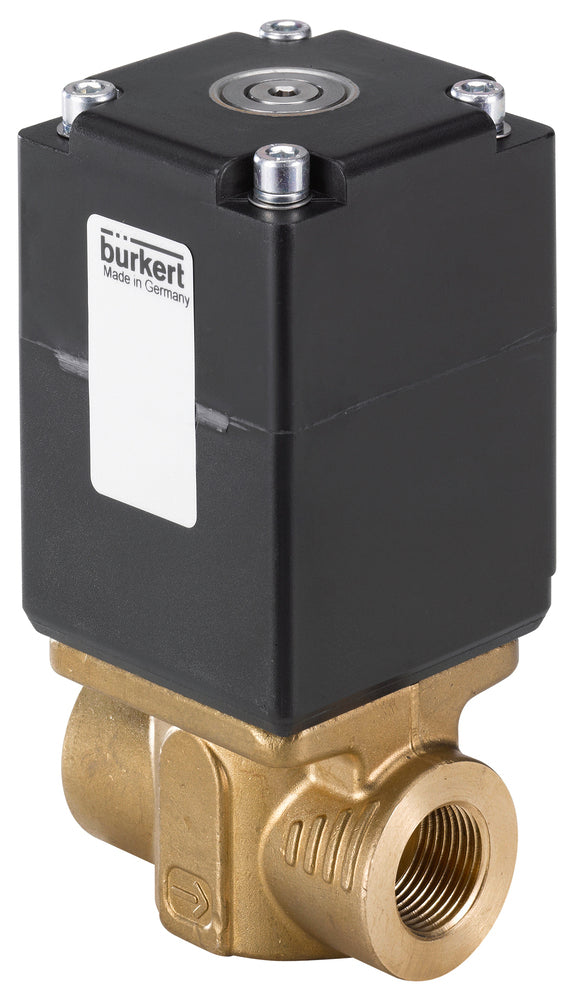

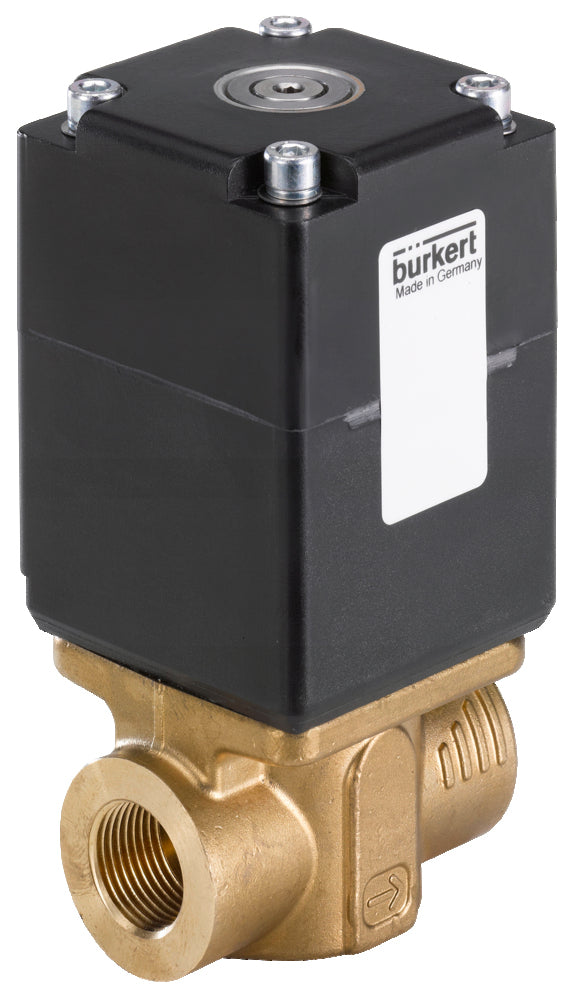

Burkert 2/2 way solenoid valve (type 2875) with G 3/8 inch threads and a 24 V DC coil. The circuit function of the solenoid valve is normally closed (voltage = open). The valve is direct operating, so no differential pressure required. Suitable for max media temperatures of 90 °C (194 °F) and a pressure range of -1 to 10 bar (-15 to 145 psi). Housing of brass with FKM sealing and a 3 mm orifice. The Kv-value is 0.25 m3/h (4.17 l/min at dp = 1 bar water).
Note: DIN connector not included.
- Regular price
- $323.91 USD
Description
This is a Burkert direct operating 2/2 way solenoid valve with G 3/8 inch threads and a 24 V DC coil. The valve has a brass housing with FKM sealing and an orifice size of 3 mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. As it is direct operating, no pressure differential over the valve is needed to open the valve. Suitable for a pressure range of -1 to 10 bar (-15 to 145 psi) and a maximum temperature of 90 °C (194 °F). The valve has a Kv-value of 0.25 m3/h, this translates to a flow rate of 4 l/min at a differential pressure of 1 bar (for water). In imperial units: Cv = 0.29, which means 0.29 GPM @ 1 psi pressure drop. For many applications it is enough to select a valve based on the thread size and orifice diameter. For more accurate sizing, use the Kv-value with our easy to use valve sizing calculator. The brass housing is durable, suitable for neutral fluids and resistant to many chemicals. The FKM (fluorine rubber or Viton) sealing has excellent chemical properties, is suited for most oils and solvents but it cannot handle hot water or steam. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. The valve has an IP65 rating if properly connected.
Pros:
- Good protection against the environment thanks to the IP65 rating
- Solenoid valves open and close very fast compared to many other valve types
- Compact valve design
- Response time less than 25 ms
Cons:
- Solenoid valves are very sensitive to dirt and can only be used with clean liquids and gases
- The coil may get hot when energized. A well ventilated environment is recommended
- DIN connector not included
Series:
The Bürkert 2875 is a direct operated plunger solenoid valve and is primarily used for applications where flow rate control is necessary (proportional control). The valve works from 0 to 25 bar and has a 3/8 inch or 1/2 inch port size (BSP or NPT). The orifice sizes ranging from 2 to 9.5 mm. For smaller flow rates, types 2871 and 2873 provide a solution. The flow can be controlled using a digital controller (for example the Bürkert 8605 or 8611 types). Explosion-protected coils are optional. Please note that the correct sizing of the valve (Kv) is critical in flow control setups. For advice on which valve to choose and if the 2875 valve is right for you, please read our article about proportional solenoid valves or contact our technical support.
Please note: this product is made to order and can unfortunately not be returned.
