G3/4'' Brass 24VDC Proportional Solenoid Valve 6223 238975
Notice: This product is discontinued

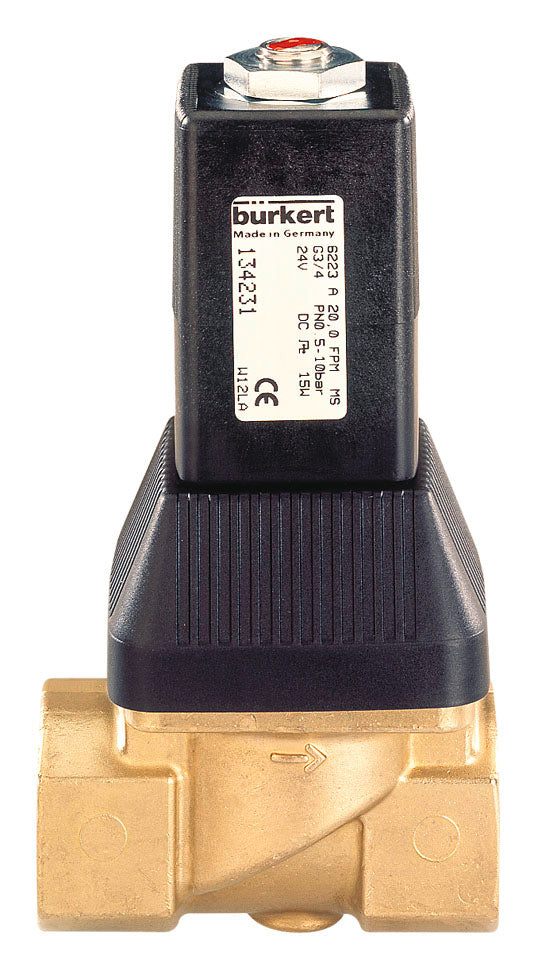

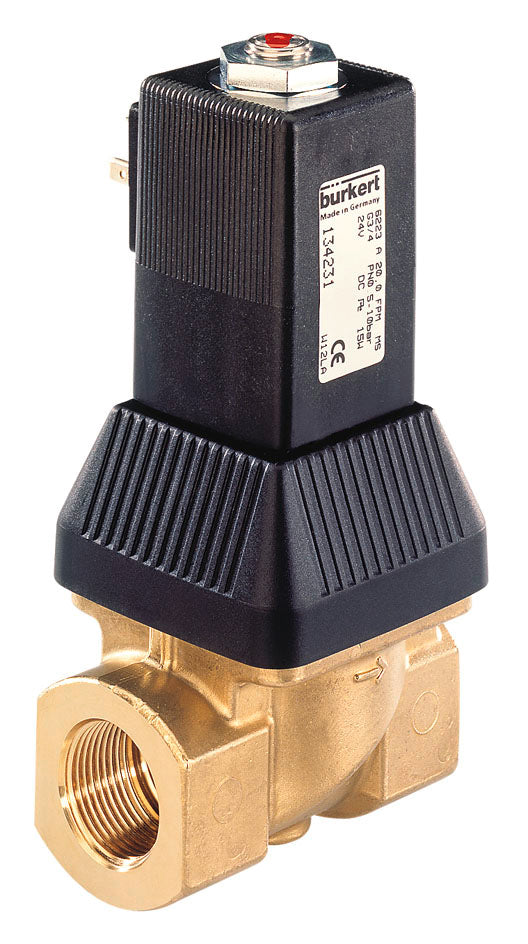

Bürkert 2/2-way solenoid valve (type 6223) with G3/4'' threads and a 24V DC coil. Designed for proportional flow control. Normally closed (voltage = open) and indirect operating, so a small differential pressure required. Housing of brass with FKM sealing and a 20 mm orifice.
Note: DIN connector not included
Notice: This product is discontinued
Description
Bürkert indirect operating 2/2-way solenoid valve with G3/4'' inner threads and 24V DC (direct current) coil. Designed for proportional flow control through a PWM signal. The duty cycle of the signal determines the coil current, which directly correlates to the plunger position. Optionally, the valve can also be driven with DC voltage. The valve has a brass housing with FKM sealing and an orifice size of 20 mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. The brass housing is durable, suitable for neutral fluids and resistant to many chemicals. The FKM (fluorine rubber or viton) sealing has excellent chemical properties, is suited for most oils and solvents but it cannot handle hot water or steam. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. The valve can be proportionally controlled by using a digital controller such as, for example, the Bürkert 8605 or 8611 types.
Important advantages
- Suitable for proportional control with PWM for larger flow rates
- Very good flow characteristics thanks to the low hysteresis and good operating sensitivity
- It can also function as a normal fully open/closed valve
- Bürkert design: proven reliability & durability
6223 series
The Bürkert 6223 is an indirect-operated proportionally controlled valve and is primarly used for flowrate control for large flowrates with relatively high open and close frequencies. To open and close, the valve makes use of the pressure difference over the inlet and outlet ports. Therefore, always a minimal pressure differential is required. The valve works from 0.5 to 10 bar and the port size varies from 3/8" to 1". The orifice sizes can be DN 10, DN 13 or DN 20. The flow can be controlled using a digital controller (for example the Bürkert 8605 or 8611). Please note that the size of the valve may be more critical in flow control setups. For advice on which valve to choose and if the 6223 valve is right for you, please read our article about proportional solenoid valves or contact our technical support.
