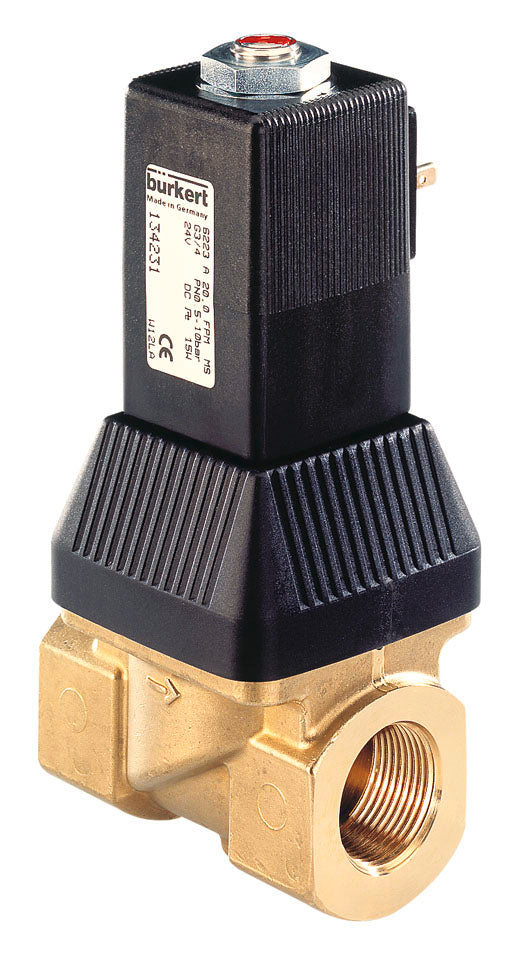

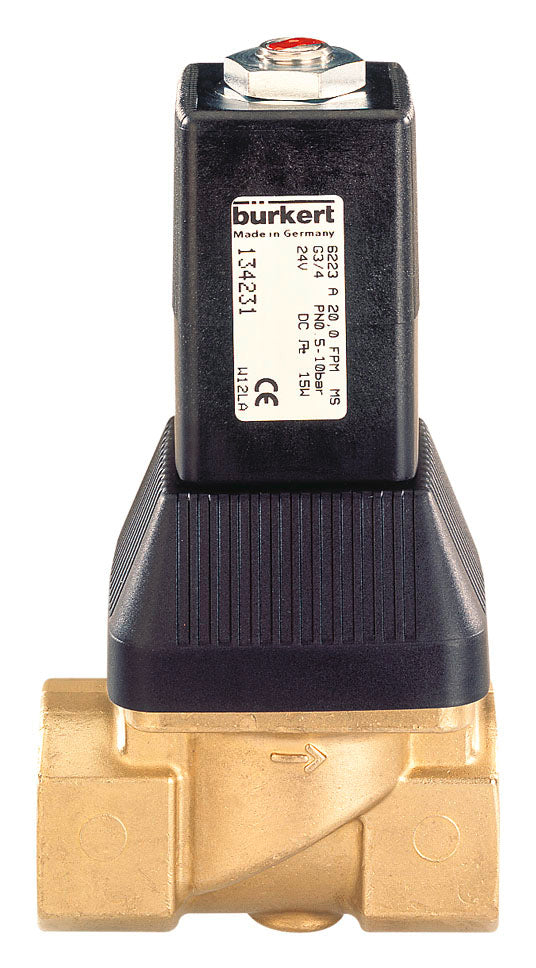

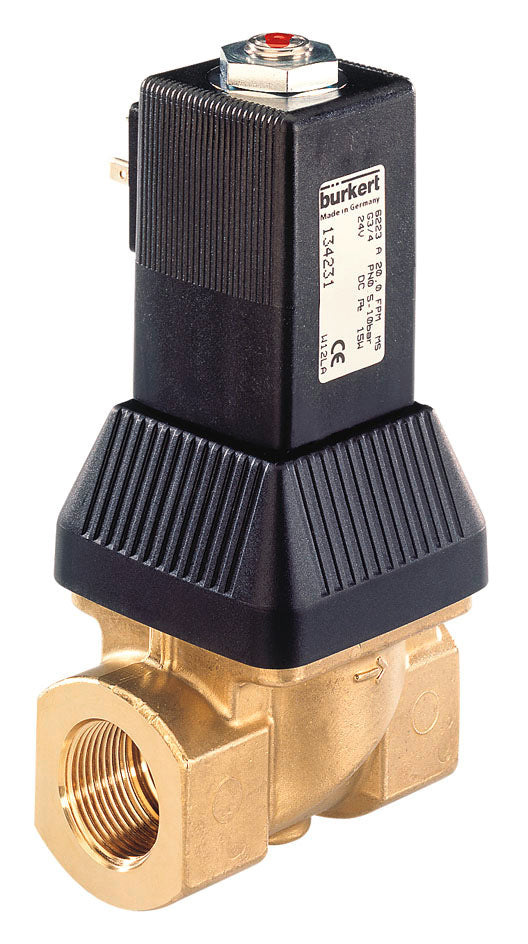

Solenoid Valve G3/4'' NC Brass FKM 0.5-10bar/7-145psi 24VDC Oxygen Fat/Oil Free 6223 234455
Burkert 2/2 way solenoid valve (type 6223) with G 3/4 inch threads and a 24 V DC coil. The circuit function of the solenoid valve is normally closed (voltage = open). The valve is indirect operating, so a small differential pressure required. Suitable for max media temperatures of 90 °C (194 °F) and a pressure range of 0.5 to 10 bar (7 to 145 psi). Housing of brass with FKM sealing and a 20 mm orifice. The Kv-value is 5.4 m3/h (90.02 l/min at dp = 1 bar water). The valve is fat and oil free.
Note: DIN connector not included.
- Regular price
- $681.26 USD
Description
This is a Burkert indirect operating 2/2 way solenoid valve with G 3/4 inch threads and a 24 V DC coil. The valve has a brass housing with FKM sealing and an orifice size of 20 mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. Suitable for a pressure range of 0.5 to 10 bar (7 to 145 psi) and a maximum temperature of 90 °C (194 °F). The valve has a Kv-value of 5.4 m3/h, this translates to a flow rate of 90 l/min at a differential pressure of 1 bar (for water). In imperial units: Cv = 6, which means 6 GPM @ 1 psi pressure drop. For many applications it is enough to select a valve based on the thread size and orifice diameter. For more accurate sizing, use the Kv-value with our easy to use valve sizing calculator. The brass housing is durable, suitable for neutral fluids and resistant to many chemicals. The FKM (fluorine rubber or Viton) sealing has excellent chemical properties, is suited for most oils and solvents but it cannot handle hot water or steam. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. The valve is fat and oil free, meaning it won't contaminate the media. Therefore, it's suitable for laboratory use as well as oxygen. The valve has an IP65 rating if properly connected.
Pros:
- Oil and fat free, so the valve does not contaminate the medium
- Good protection against the environment thanks to the IP65 rating
- Silicone free, so the valve does not contaminate the medium
- Control enabled with PWM signal
Cons:
- Not suited for low pressure differentials (< 0.5 bar). In case of low pressure or a vacuum, consider a (semi-)direct solenoid valve
- Solenoid valves are very sensitive to dirt and can only be used with clean liquids and gases
- The coil may get hot when energized. A well ventilated environment is recommended
- DIN connector not included
Series:
The Bürkert 6223 is an indirect-operated proportionally controlled valve and is primarily used for flowrate control for large flowrates with relatively high open and close frequencies. Opening and closing rely on the pressure difference between the inlet and outlet ports. Therefore, always a minimal pressure differential is required. The valve works from 0.5 to 10 bar and the port size varies from 3/8 " to 1 ". The orifice sizes can be DN 10, DN 13 or DN 20. The flow can be controlled using a digital controller (for example the Bürkert 8605 or 8611). Please note that the size of the valve may be more critical in flow control setups. For advice on which valve to choose and if the 6223 valve is right for you, please read our article about proportional solenoid valves or contact our technical support.
Please note: this product is made to order and can unfortunately not be returned.
