Wohner QUADRON Cartridge Load Disconnector - 33200

Wohner QUADRON Cartridge Load Disconnector - 33200
Wohner QUADRON Cartridge Load Disconnector - 33200

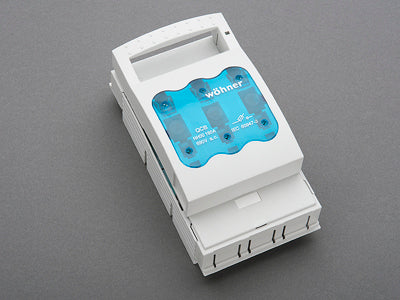

Image may vary slightly
See specifications for accurate information.
Reference: E2BEH
Brand: Wohner
Mfr. Part: 33200

Wohner QUADRON pattern load breaker, construction size fuse inserts NH00, equipment pattern load breaker with safety load switch, rated operating current Ie 160A, 3 poles, degree of protection (IP) IP30, degree of protection (NEMA), top connection, enclosure width 106mm.

View all
$56.95
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 23 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

Wohner QUADRON pattern load breaker, construction size fuse inserts NH00, equipment pattern load breaker with safety load switch, rated operating current Ie 160A, 3 poles, degree of protection (IP) IP30, degree of protection (NEMA), top connection, enclosure width 106mm.

Downloads

Specifications

Number of poles
3
Rated operation current Ie (A)
160
Max. rated operation voltage Ue AC (V)
690
Rated insulation voltage Ui (V)
800
Construction size fuse inserts
NH00
With error protection
No
Housing width (mm)
106
Housing depth (mm)
83
Height of housing (mm)
176
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
Degree of protection (NEMA)
Other
