Trilux Aviella Downlight/Spotlight/Floodlight - 6864940

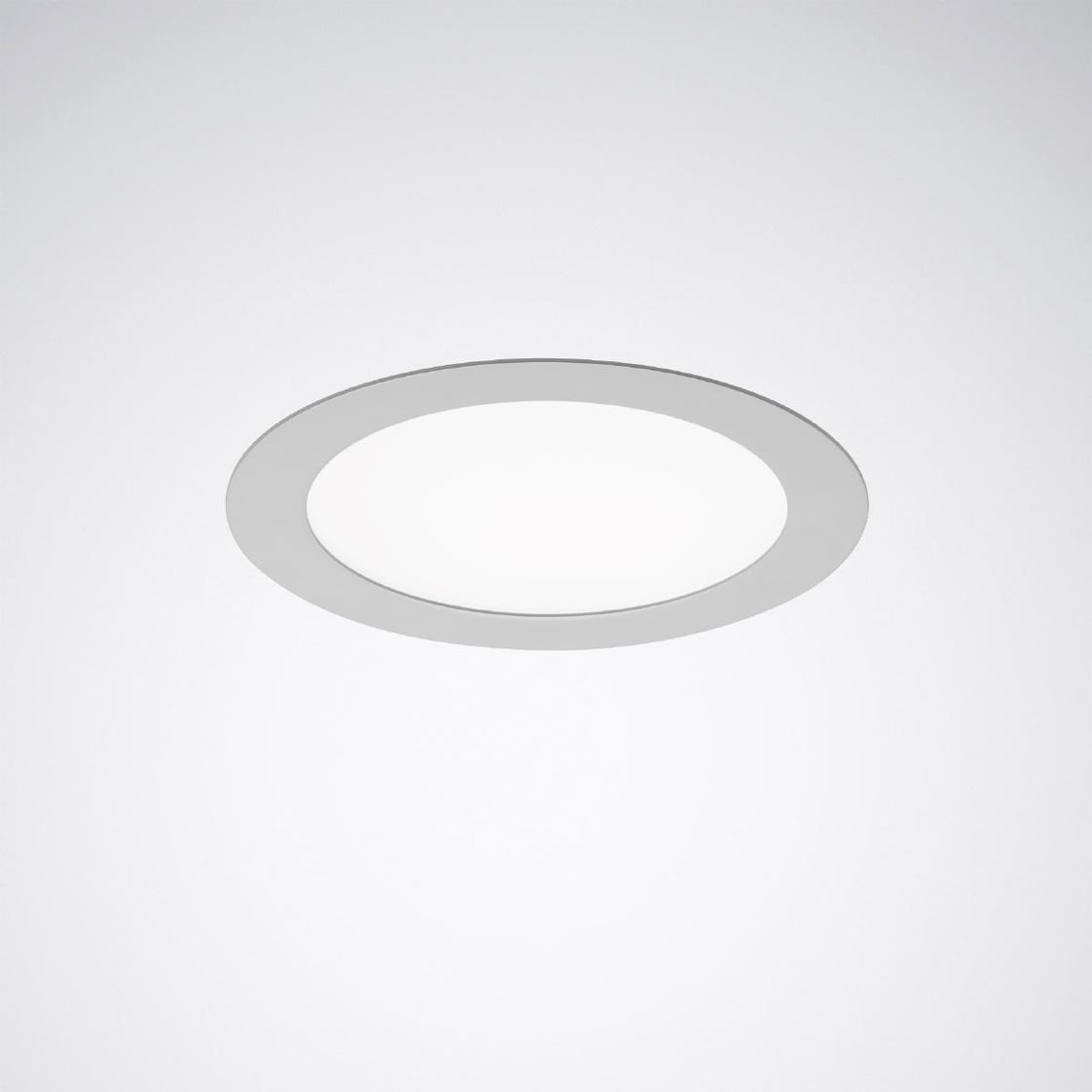

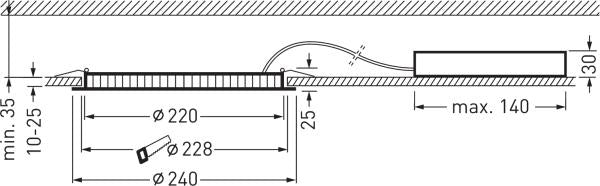

This is a round built-in LED downlight. It can be installed in the ceiling without tools thanks to quick assembly springs. The ceiling opening is Ø 228 mm, and the installation depth is 45 mm. It comes with an opal cover glass made from PMMA. It features a symmetrical wide light distribution. The fixture luminous flux is 2000 lm, power consumption is 24.00 W, and the fixture efficiency is 83 lm/W. The light color is neutral white, color temperature (CCT) is 4000 K, and the general color rendering index (CRI) Ra is > 80.

The average specified lifespan L80(tq 25 °C) is 35,000 h, and the average specified lifespan L70(tq 25 °C) is 50,000 h. The fixture housing is made from die-cast aluminum. The ceiling ring is powder-coated white (RAL 9016). The external dimensions of the ceiling ring are Ø 240 mm, and the fixture height is 24 mm. The permitted ambient temperature (ta) is -20 °C to +25 °C.

The protection category (EN 61140) is II, the protection class (DIN EN 60529) is IP20, and the room-side protection class is IP44. It has an impact resistance in accordance with IEC 62262: IK05, and the test temperature for the glow-wire test in compliance with IEC 60695-2-11 is 650 °C. The weight is 0.6 kg.

It comes with an external auxiliary device that is switchable. The fixture is suitable for use on a 230 V DC power supply. The auxiliary device can be replaced in accordance with the ecological design requirements (EU Regulation 2019/2020). The fixture complies with the fundamental requirements of the applicable EU directives and the product safety law. It has a CE marking. In addition, an independent inspection agency has awarded the ENEC certificate to the fixture.
