Spelsberg ALR 88-4 Terminal Block Enclosure IP66 - 16040501

Notice: This product is discontinued

Discontinued
Spelsberg ALR 88-4 Terminal Block Enclosure IP66 - 16040501
Spelsberg ALR 88-4 Terminal Block Enclosure IP66 - 16040501
Reference: E3W4A
Brand: Spelsberg
Mfr. Part: 16040501

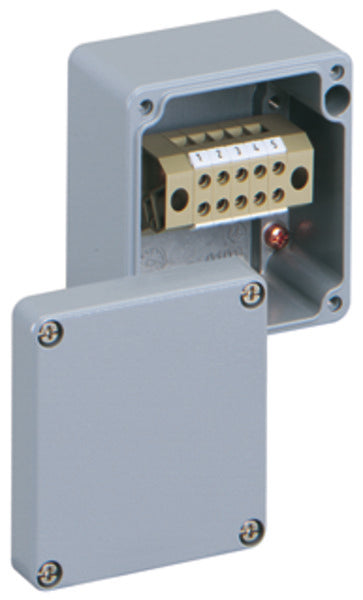

Industrial-grade aluminum terminal block enclosure with IP66 protection rating for secure wire connections. Features 5-pole terminal block supporting 4mm² wire cross-section, 400V AC insulation rating, and IK09 impact resistance. Powder-coated aluminum construction with internal mounting points. Dimensions: 75 x 80 x 57mm.

View all
Note: product cannot be returned

Notice: This product is discontinued

Description
Specifications
Downloads

Description

Industrial-grade aluminum terminal block enclosure with IP66 protection rating for secure wire connections. Features 5-pole terminal block supporting 4mm² wire cross-section, 400V AC insulation rating, and IK09 impact resistance. Powder-coated aluminum construction with internal mounting points. Dimensions: 75 x 80 x 57mm.

Pros:

  • High IP66 protection rating for harsh environments
  • Robust aluminum construction with powder coating
  • Integrated 5-pole terminal block for 4mm² wires
  • IK09 impact resistance rating

Downloads

Compliance and Certification (EN)
pdf
Download
Compliance and Certification (EN)
pdf
Download

Specifications

Number of connection clamps
5
Max. conductor cross section (mm²)
4
Length (mm)
80
Material plate thickness cabinet (mm)
4
Extension possible
No
Number of inlets
0
Type of inlet
Other
Materiali
Aluminium
Halogen free
Yes
Surface protectioni
Anodised
With cover
Yes
Cover attachment
Screwed
With transparent cover
No
Sealable
Yes
Circuit integrity
None
Working temperature (°C)
-35 °C to 75 °C
Impact strength
IK09
Explosion-tested version
No
For Ex-zone gas
None
For Ex-Zone dust
None
