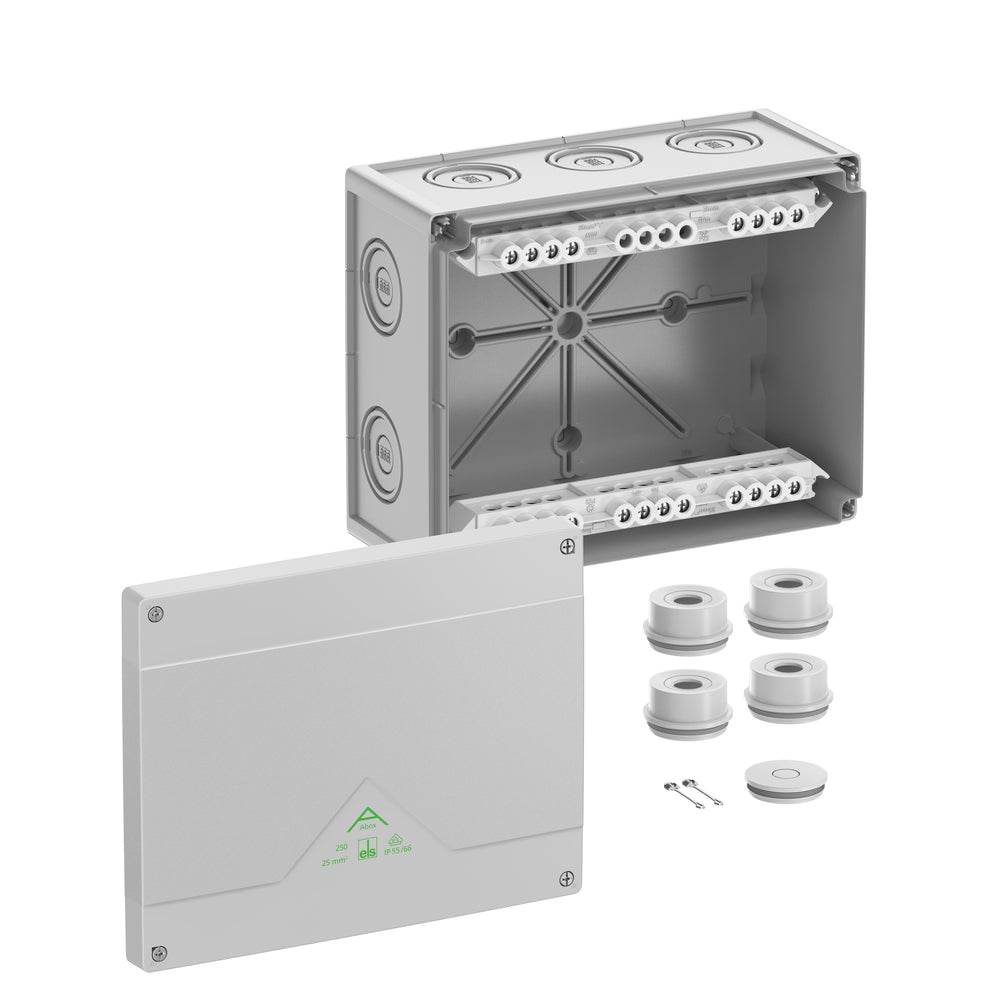

Spelsberg Abox 250-25 Junction Box IP66 - 82542001
Notice: This product will be discontinued in the future
Professional-grade junction box with IP55/IP66 protection rating and IK07 impact resistance. Features 5-pole terminals supporting up to 25mm² cables, with connection capacity of 12x10mm², 8x16mm², or 4x25mm² solid/flexible copper conductors. Rated for 690V AC/DC with Class II protection. Includes breakout membranes for M20/M25/M40/M50 cable entries and mounting holes. Gray UV-resistant housing measures 252x202x120mm.
Notice: This product will be discontinued in the future
Description
Professional-grade junction box with IP55/IP66 protection rating and IK07 impact resistance. Features 5-pole terminals supporting up to 25mm² cables, with connection capacity of 12x10mm², 8x16mm², or 4x25mm² solid/flexible copper conductors. Rated for 690V AC/DC with Class II protection. Includes breakout membranes for M20/M25/M40/M50 cable entries and mounting holes. Gray UV-resistant housing measures 252x202x120mm.
Pros:
- High IP66 protection rating for harsh environments
- Versatile cable entry options with multiple knockouts
- Large terminal capacity up to 25mm²
- Ammonia-resistant certification (DLG approved)
