Solenoid Valve G3/4'' NC Brass EPDM 0-10bar/145psi 24VAC Anti-Waterhammer Drinking Water 6213 246279

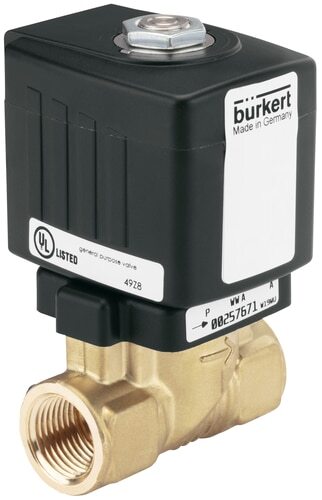

Burkert 2/2 way solenoid valve (type 6213) with G 3/4 inch threads and a 24 V AC coil. The circuit function of the solenoid valve is normally closed (voltage = open). The semi-direct operating valve opens without needing differential pressure and requires only a slight pressure differential for full opening. Suitable for max media temperatures of 100 °C (212 °F) and a pressure range of 0 - 10 bar (145 psi). Housing of brass with EPDM sealing and a 13 mm orifice. The Kv-value is 3.6 m3/h (60.01 l/min at dp = 1 bar water). Low risk of water hammer thanks to dampened closing. Suitable for drinking water.
Note: DIN connector not included.
- Regular price
- $228.52 USD
Description
This is a Burkert semi-direct operating 2/2 way solenoid valve with G 3/4 inch threads and a 24 V AC coil. The valve has a brass housing with EPDM sealing and an orifice size of 13 mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. The semi-direct operating valve opens without needing differential pressure and requires only a slight pressure differential for full opening. Suitable for a pressure of 0 - 10 bar (145 psi) and a maximum temperature of 100 °C (212 °F). The valve has a Kv-value of 3.6 m3/h, this translates to a flow rate of 60 l/min at a differential pressure of 1 bar (for water). In imperial units: Cv = 4, which means 4 GPM @ 1 psi pressure drop. For many applications it is enough to select a valve based on the thread size and orifice diameter. For more accurate sizing, use the Kv-value with our easy to use valve sizing calculator. The brass housing is durable, suitable for neutral fluids and resistant to many chemicals. The EPDM (ethylene propylene diene monomer rubber) sealing is suited for neutral fluids and many chemicals, but it has poor resistance to oils and fats. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. The valve's design prevents water hammering. The valve is KTW-W270 certified for drinking water. The valve is VDE certified according to EN 60730, confirming its compliance with general safety standards for electric controls. The valve has an IP65 rating if properly connected.
Pros:
- This valve satisfies all European drinking water requirements
- Good protection against the environment thanks to the IP65 rating
- Solenoid valves open and close very fast compared to many other valve types
- Compact design with high flow rate
- A damped design ensures reduced noise levels
- Low risk on water hammer, thanks to the dampened closing
Cons:
- Solenoid valves are very sensitive to dirt and can only be used with clean liquids and gases
- The coil may get hot when energized. A well ventilated environment is recommended
Series:
The Bürkert 6213 valve is a semi-direct operated valve. The plunger of the solenoid is coupled to the rubber membrane via a spring. The valve opens at zero bar but requires a minimal pressure differential for full opening. Orifices up DN 40 and port sizes up to 2 inch are available. All 6213 valves satisfy protection class IP65 and feature a damped housing design for quiet closing. The standard brass housing satisfies all European drinking water requirements. A special version (HP00) which opens the valve without differential pressure is available for gas and vacuum applications. For reduced energy requirement, all coils can be delivered with electronic power reduction.
Please note: this product is made to order and can unfortunately not be returned.
