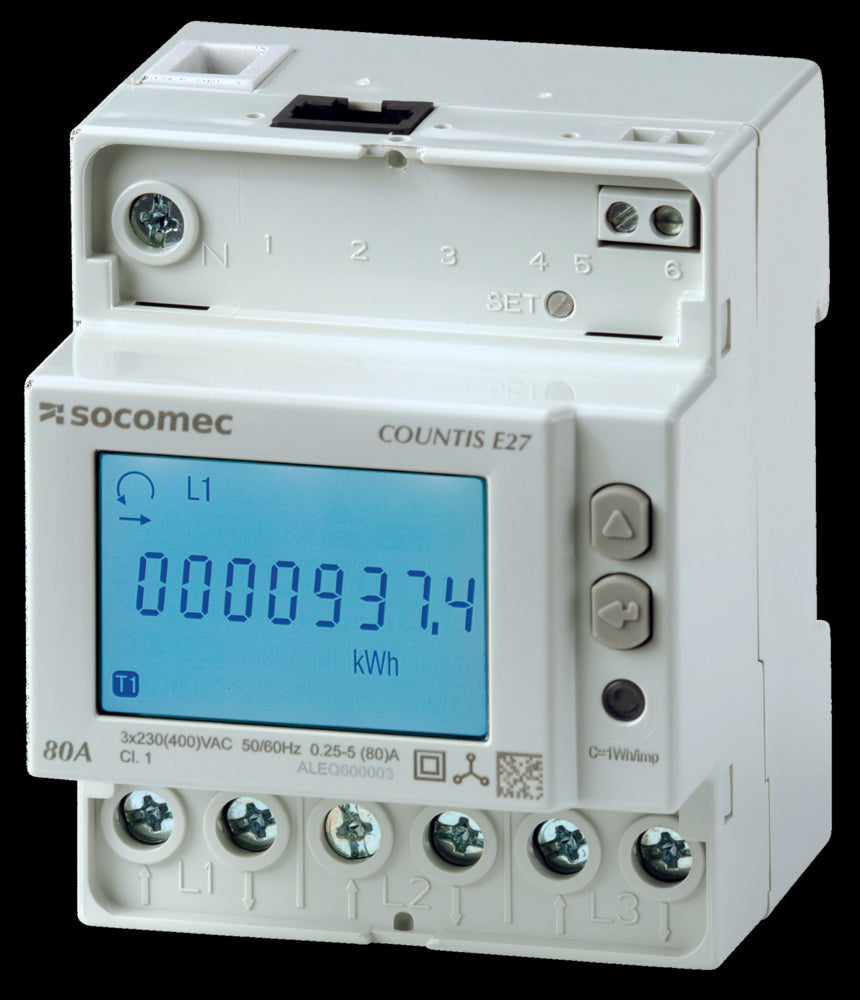

Socomec COUNTIS Electricity Meter - 48503054

Socomec COUNTIS Electricity Meter - 48503054
Socomec COUNTIS Electricity Meter - 48503054
Image may vary slightly
See specifications for accurate information.
Reference: T23JT
Brand: Socomec
Mfr. Part: 48503054

Socomec COUNTIS electricity meter direct measurement, pole type three conductor/four conductor, meter type electronic, display type digital, rated voltage (Un) L-L 320 - 480V, rated voltage (Un) N-L 184 - 276V, rated current (In) 80A, max current (Imax) 80A, frequency 50 - 60Hz, pulse rate 10Imp/kWh.

View all
$540.31
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 3 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

Socomec COUNTIS electricity meter direct measurement, pole type three conductor/four conductor, meter type electronic, display type digital, rated voltage (Un) L-L 320 - 480V, rated voltage (Un) N-L 184 - 276V, rated current (In) 80A, max current (Imax) 80A, frequency 50 - 60Hz, pulse rate 10Imp/kWh.

Downloads

pdf
Download

Specifications

Type of meter
Electronic
Nominal current (In) (A)
80
Max. current (Imax) (A)
80
Nominal voltage (Un) N-L (V)
184 V to 276 V
Nominal voltage (Un) L-L (V)
320 V to 480 V
Frequency (Hz)
50 Hz to 60 Hz
Accuracy class
B
Pole type
Three conductor/four conductor
Model
Direct measurement
Energy type
Effective power and blind power
Suitable for
Purchase/supply
Tariff type
Two-tariff
Tariff control
External
Measurement type load profile
No
Escapement mechanism
No
Calibrated
Yes
Approval
Domestic
Pulse output
Electrical
Pulse type
S0
Pulse rate (Imp/kWh (kvarh))
10 Imp/kWh (kvarh) to 10 Imp/kWh (kvarh)
Type of indication
Digital
Mounting method
DRA (DIN-rail adapter)
Width in number of modular spacings
4
Type of interface
Other
EEC40 signature
No
With lock code
No
Number of positions total (counter)
8
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
