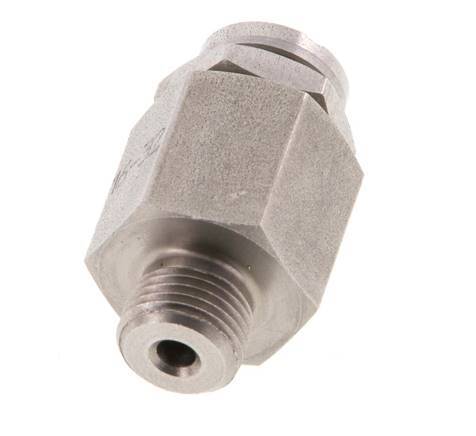

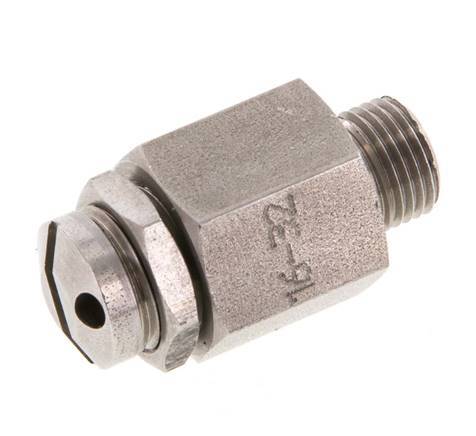

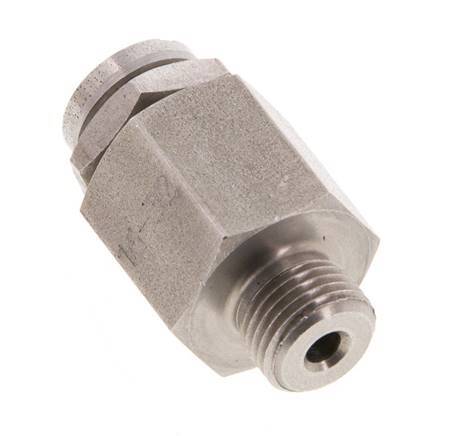

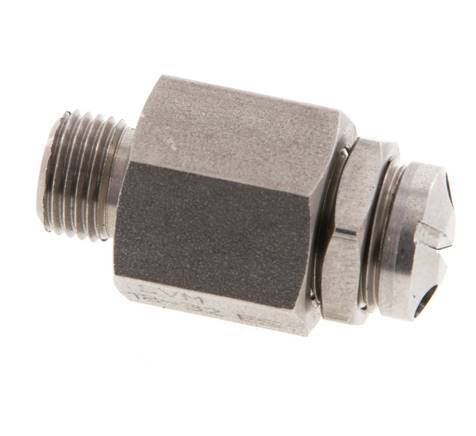

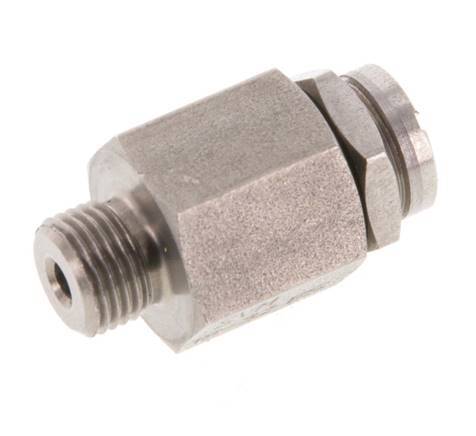

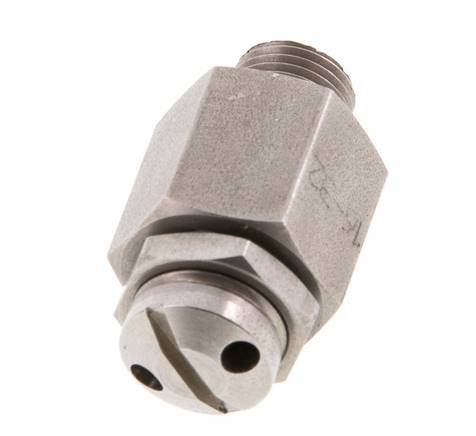

G 1/8'' Stainless steel 303 Adjustable Safety Valve 16-32 bar (232.06-464.12 psi)
The G 1/8 inch stainless steel 303 adjustable safety valve is a valve that is used to control the pressure in a system by venting once the set pressure has been achieved. The set pressure can be manually set between 16-32 bar (232.06-464.12 psi). Stainless steel 303 housing material with a FPM/FKM sealing. Suitable for a temperature range of -10 °C to 180 °C (14 °F to 356 °F).
- Regular price
- $29.84
Description
The G 1/8 inch stainless steel 303 adjustable safety valve that is used to control the pressure in a system by venting once the set pressure has been achieved. The valve opens using a spring-based mechanism to protect your system from being subjected to pressures that exceed the maximum safety levels. The set can be manually set between 16-32 bar (232.06-464.12 psi). This model has G 1/8 inch ports and the housing material is stainless steel 303 with a FPM/FKM sealing. This valve blows the gas off freely into the atmosphere, because of this it is only suitable for compressed air and other non-toxic and non-flammable gases. The maximum blow-off capacity is 95.98 m3/h. The temperature range of this safety valve is between -10 °C to 180 °C (14 °F to 356 °F).
Pros:
- The set pressure can be manually adjusted between 16-32 bar
- Suitable for all non-toxic and non-flammable gases
- Reliable FPM/FKM sealing
- Small form factor
- High blow-off capacity of 95.98 m3/h
Cons:
- Not suitable for liquids
- Blows freely into the atmosphere
SFL-M series
The SFL-M series are brass and stainless steel pressure relief valves designed to protect your system from over-pressurizing. The valves are available in manually adjustable pressures between 0.5 and 60 bar (7.25 and 870.23 psi) and come with various corresponidng blow-off capacaties. The valves have a FPM/FKM sealing for a tight and secure fit. They are suitable for compressed air and other non-toxic, non-inflammable gases. The gases are blown off freely into the atmosphere.
