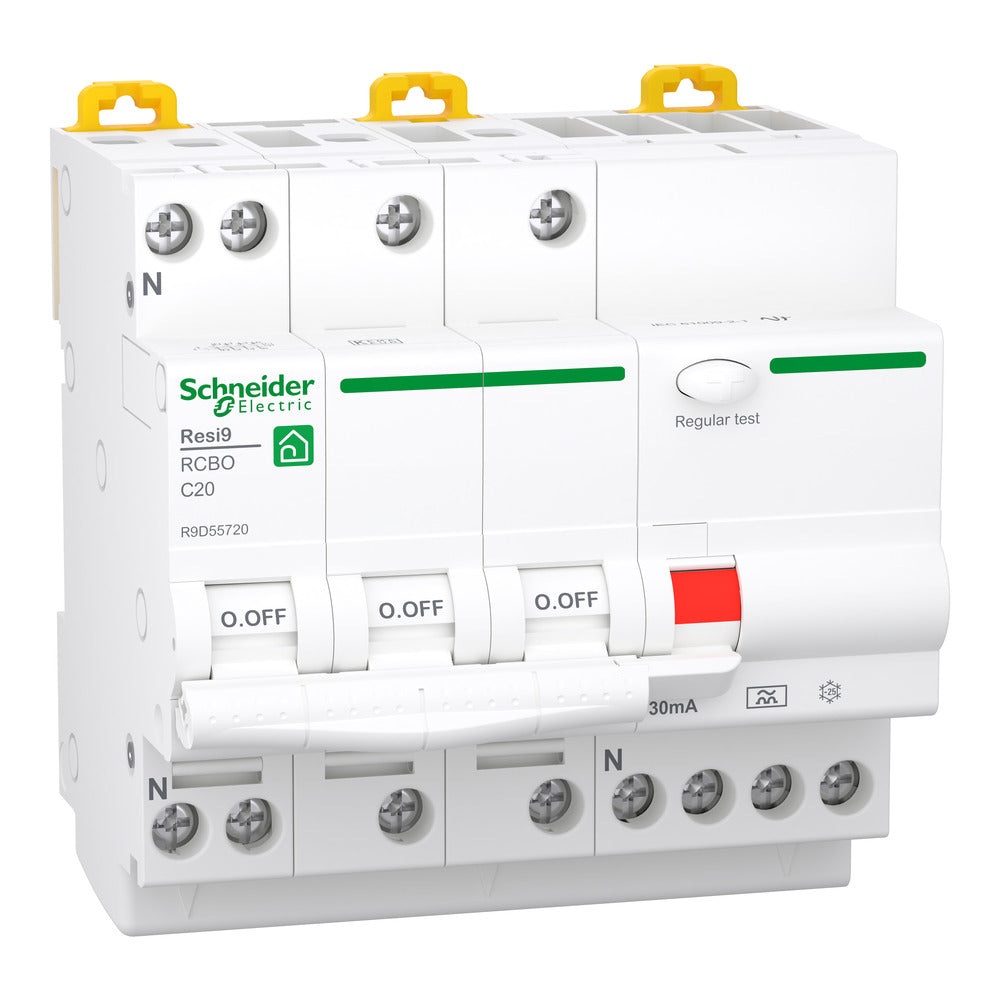

Schneider Resi9 3P+N 20A C-Curve RCBO 30mA 6kA - R9D55720
A combined residual current circuit breaker with overcurrent protection (RCBO) featuring 3-pole plus neutral protection, 20A nominal current with C-curve characteristics, and 30mA type A residual current sensitivity. Provides integrated protection against short circuits, overloads, and electrical shock hazards with a breaking capacity of 6000A according to EN/IEC 61009-2-1 standards. DIN-rail mountable with 90mm width.
- Regular price
- $95.80 USD
We sell only to registered businesses
Description
A combined residual current circuit breaker with overcurrent protection (RCBO) featuring 3-pole plus neutral protection, 20A nominal current with C-curve characteristics, and 30mA type A residual current sensitivity. Provides integrated protection against short circuits, overloads, and electrical shock hazards with a breaking capacity of 6000A according to EN/IEC 61009-2-1 standards. DIN-rail mountable with 90mm width.
Pros:
- Combined RCBO functionality saves installation space
- High breaking capacity of 6000A for enhanced protection
- Clear status indication with front visual indicator
- Compliant with EN/IEC 61009-2-1 standards
