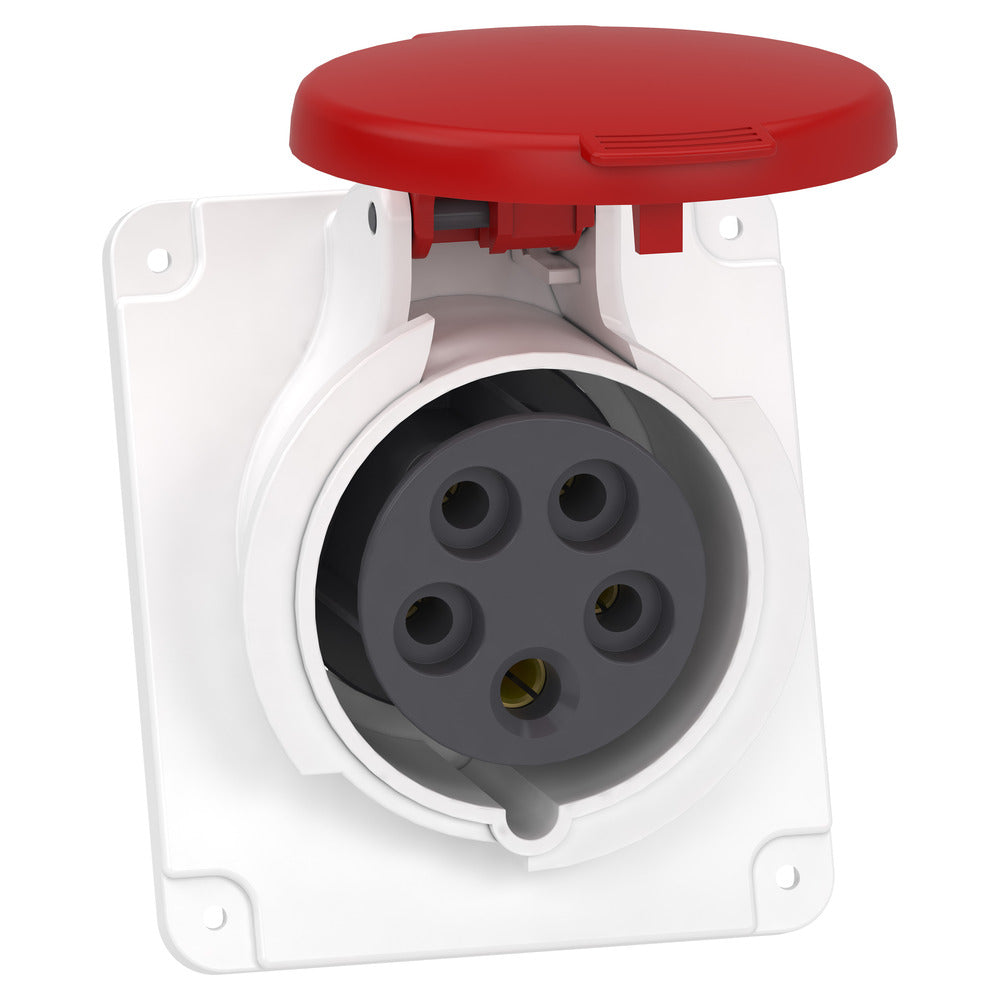

Schneider PratiKa 16A 5P Angled Panel Socket 400V IP44 - PKF16F435
Industrial angled panel mount socket from Schneider's PratiKa series featuring 3P+N+E poles configuration, 16A nominal current, and 400V AC operating voltage. Designed with IP44 protection rating and IK08 impact resistance. Features screw terminal connections supporting 1-4mm² flexible or rigid cables. Base plate dimensions: 90x100mm. 6h clock position with grey housing (RAL 7035) and red voltage indicators.
- Regular price
- $12.44 USD
We sell only to registered businesses
Description
Industrial angled panel mount socket from Schneider's PratiKa series featuring 3P+N+E poles configuration, 16A nominal current, and 400V AC operating voltage. Designed with IP44 protection rating and IK08 impact resistance. Features screw terminal connections supporting 1-4mm² flexible or rigid cables. Base plate dimensions: 90x100mm. 6h clock position with grey housing (RAL 7035) and red voltage indicators.
Pros:
- Versatile indoor/outdoor use with IP44 protection rating
- Compatible with both flexible and rigid cables
- High impact resistance IK08 rating
- Clear voltage identification with red indicators
