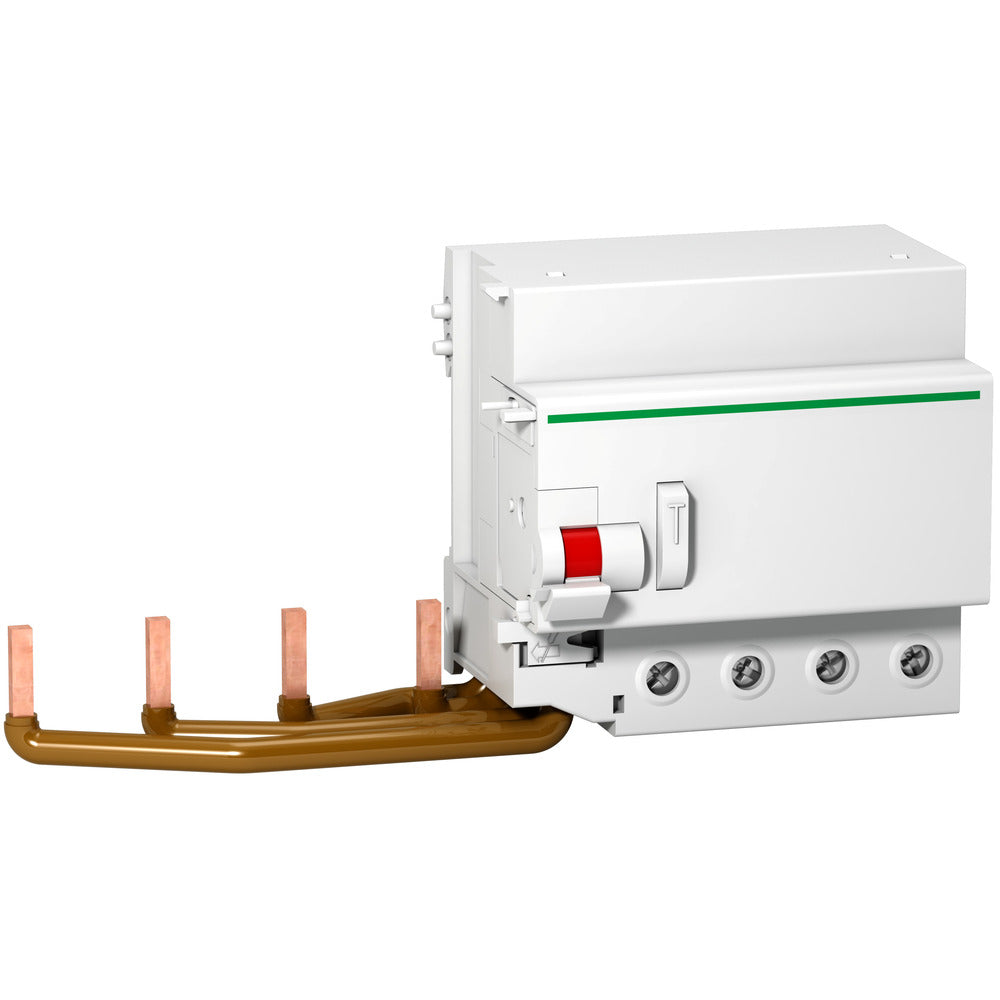

Schneider Electric Vigi C120 4P 125A RCD Type A - A9N18579

Schneider Electric Vigi C120 4P 125A RCD Type A - A9N18579
Schneider Electric Vigi C120 4P 125A RCD Type A - A9N18579
Reference: E3TPQ
Brand: Schneider Electric
Mfr. Part: A9N18579

Modular residual current device with 4-pole protection, rated for 125A and operating voltage of 230-415VAC. Features Type A protection class with 300mA sensitivity and voltage-independent tripping technology. Provides protection against short circuits, cable overload, indirect electrical contact, and fire hazards. Compatible with C120 circuit breakers for complete circuit protection. Compliant with EN/IEC 61009-2-1 standards.

View all
$335.03 USD
excl VAT
In stock Ships in 39d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 39 days. Up to 10 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 41 - 42 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications

Description

Modular residual current device with 4-pole protection, rated for 125A and operating voltage of 230-415VAC. Features Type A protection class with 300mA sensitivity and voltage-independent tripping technology. Provides protection against short circuits, cable overload, indirect electrical contact, and fire hazards. Compatible with C120 circuit breakers for complete circuit protection. Compliant with EN/IEC 61009-2-1 standards.

Pros:

  • 20,000 cycle electrical durability rating
  • Wide operating voltage range (230-415VAC)
  • Voltage-independent tripping technology
  • DIN rail mounting for easy installation

Specifications

Nominal voltage
230..415 V
Nominal current
125 A
Rated fault current adjustable
No
Rated fault current
0.3..0.3 A
Max. delay time
0 ms
Delay adjustable
No
Number of poles
4
Leakage current type
A
Surge current capacity
0.25 kA
Frequency
50/60 Hz
Rated insulation voltage Ui
500 V
Rated impulse withstand voltage Uimp
6 kV
Connectable conductor cross section solid-core
1..50 mm²
Connectable conductor cross section multi-wired
1..35 mm²
Anti-nuisance tripping version
No
With interlocking device
No
Degree of protection (IP)i
IP20
Pollution degree
3
Ambient temperature during operating
25..60 °C
