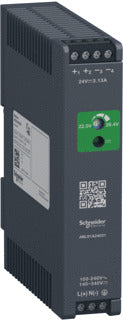

Schneider Electric Modicon DC Power Supply 24V | ABLS1A24031

Schneider Electric Modicon DC Power Supply 24V | ABLS1A24031
Schneider Electric Modicon DC Power Supply 24V | ABLS1A24031
Image may vary slightly
See specifications for accurate information.
Reference: E24U7
Brand: Schneider Electric
Mfr. Part: ABLS1A24031

The single-phase, optimized regulated power supply by Schneider Electrics has a nominal input voltage between 100 and 240v and a rated power of 3.0 a. Compact dimensions.Integrated overload, short-circuit, overvoltage, and undervoltage protection. Wide input voltage range.

View all
$101.29
excl VAT
In stock +40 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 40 days. Up to 25 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 42 - 43 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

The single-phase, optimized regulated power supply by Schneider Electrics has a nominal input voltage between 100 and 240v and a rated power of 3.0 a. Compact dimensions.Integrated overload, short-circuit, overvoltage, and undervoltage protection. Wide input voltage range.

Downloads

Datasheet (EN)
pdf
Download

Specifications

Voltage type of supply voltage
DC
1st secondary output voltage at DC (V)
24 V to 24 V
Max. output current 1 (A)
3.1
Secondary voltage adjustable
Yes
Nominal value output voltage 1 (V)
24
Nominal value output current 1 (A)
3.1
Rated voltage AC (V)
100 V to 240 V
Rated voltage (AC 60 Hz) (V)
100 V to 240 V
Rated voltage DC (V)
140 V to 340 V
Electrical connection
Type of electric connection.
Screw connection
Output voltage stabilized
Yes
Power output (W)
75
Stabilized
Yes
Short-circuit-proof
Yes
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
Suitable for safety functions
No
SIL (IEC 61508)
None
Refurbished
No
Modular version
No
Direct mounting possible
No
Wall mounting possible
No
Rail mounting possible
Yes
Performance level (EN ISO 13849-1)
None
Built-in width (mm)
27
Built-in height (mm)
123.6
