Schneider Electric Merten Anti-vAndalism Wall Outlet (WCD Switchgear) - MTN2300-7060

Notice: This product is discontinued

Discontinued
Schneider Electric Merten Anti-vAndalism Wall Outlet (WCD Switchgear) - MTN2300-7060
Schneider Electric Merten Anti-vAndalism Wall Outlet (WCD Switchgear) - MTN2300-7060
Schneider Electric Merten Anti-vAndalism Wall Outlet (WCD Switchgear) - MTN2300-7060
Schneider Electric Merten Anti-vAndalism Wall Outlet (WCD Switchgear) - MTN2300-7060
Schneider Electric Merten Anti-vAndalism Wall Outlet (WCD Switchgear) - MTN2300-7060
Schneider Electric Merten Anti-vAndalism Wall Outlet (WCD Switchgear) - MTN2300-7060
Image may vary slightly
See specifications for accurate information.
Reference: E35BD
Brand: Schneider Electric
Mfr. Part: MTN2300-7060

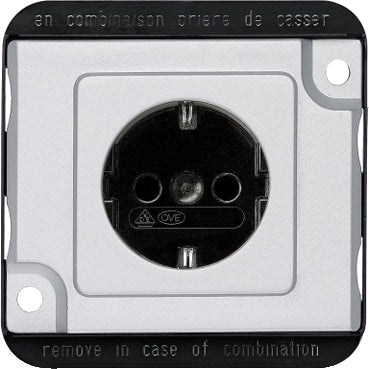

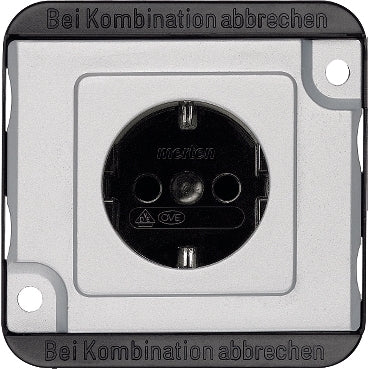

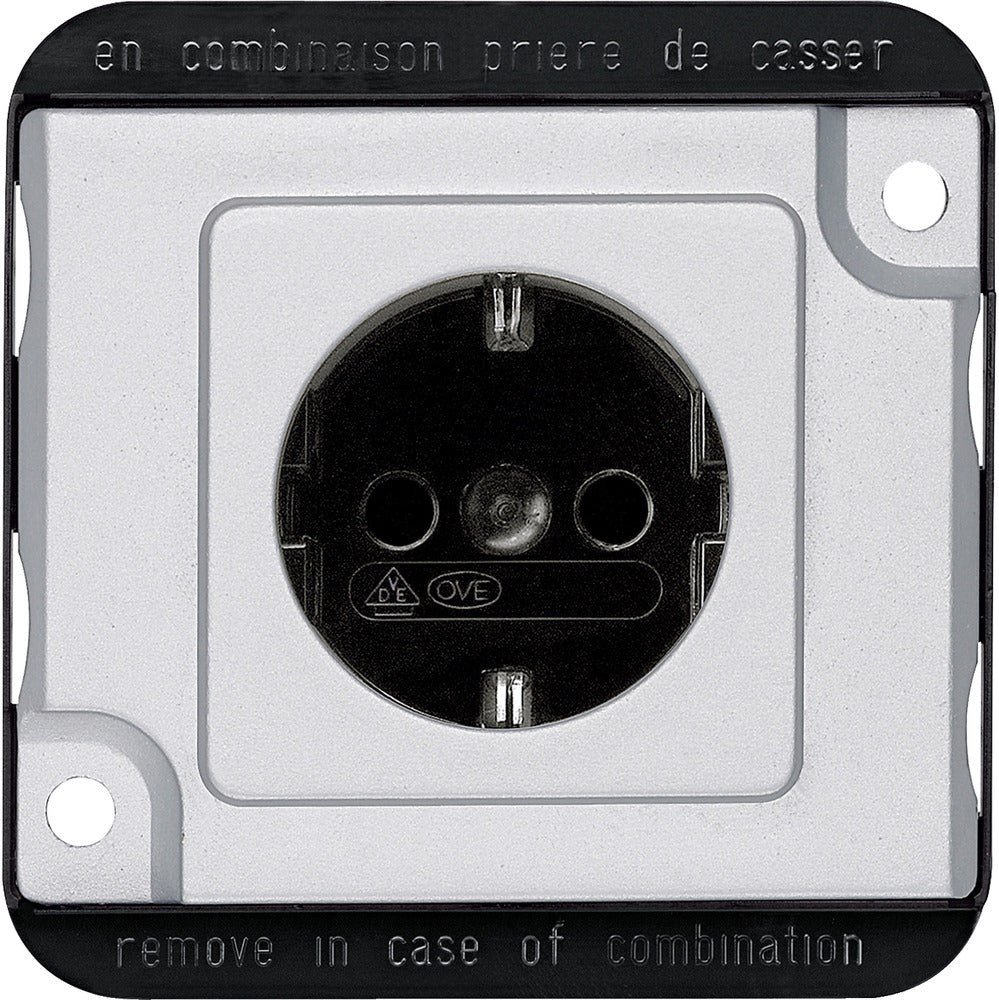

This socket from Schneider Electric Merten features grounding and child protection. The socket is aluminum in color and the protective cover is also aluminum in color. The material of the socket is metal and the socket is connected by means of a plug clamp.

View all

Notice: This product is discontinued

Description
Specifications
Downloads
Related products

Description

This socket from Schneider Electric Merten features grounding and child protection. The socket is aluminum in color and the protective cover is also aluminum in color. The material of the socket is metal and the socket is connected by means of a plug clamp.

Downloads

Specifications

Model
Protective contact (SCHUKO)
Protective contact
Yes
Protective earth pin round
No
Number of active pins (round)
2
Number of active pins (flat)
0
With signal lamp
No
With built-in USB power supply
No
Number of units
1
Number of modules (module system)
0
Number of socket outlets switchable
0
Number of phases
1
Connection type
Push-in clamp
With hinged lid
No
With enhanced contact protection
No
Label space/information surface
No
Color
White
RAL-number (similar)
9016
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
Yes
With function lighting
No
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
With miniature fuse
No
Special power supply
No special power supply
Mounting method
Flush mounted (plaster)
Type of fastening
Mounting with claw and screw
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Thermoplastic
Halogen free
Yes
Surface protection
The type of surface protection of the component.
Other
Surface finishing
Glossy
Anti-bacterial treatment
Yes
With on/off switch
No
With loop through function
Yes
Rotated central insert
No
Nominal current (A)
16
Nominal voltage (V)
250
Frequency (Hz)
50 Hz to 50 Hz
Rated fault current (mA)
0
Suitable for degree of protection (IP)
IP20
Impact strength
IK03
Width of device (mm)
71
Height of device (mm)
71
Depth of device (mm)
40
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Min. depth of built-in installation box (mm)
40
Compatible with Amazon Alexa
No
IFTTT support available
No
