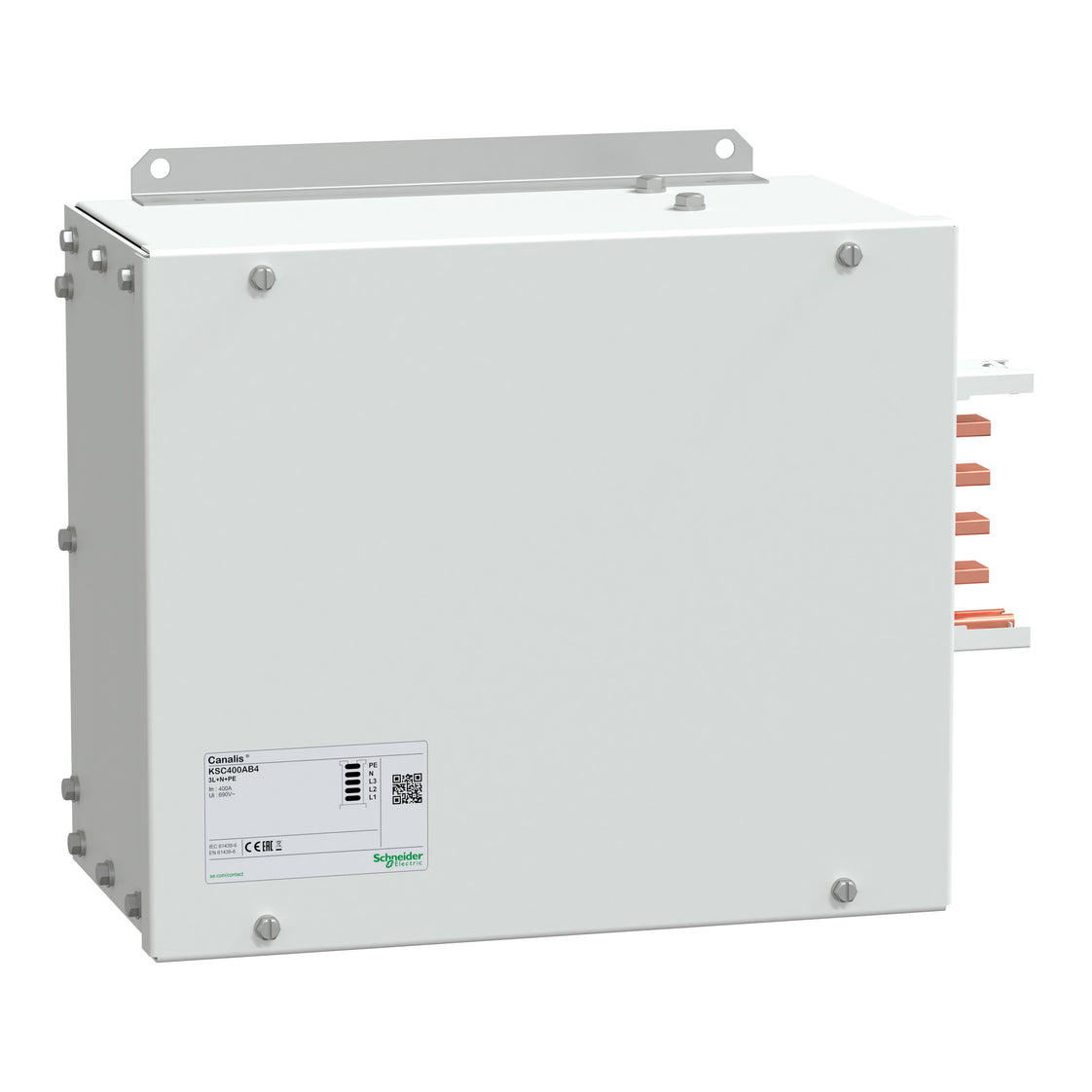

Schneider Electric KS 250A Power Feed Unit - KSA250AB4

Schneider Electric KS 250A Power Feed Unit - KSA250AB4
Schneider Electric KS 250A Power Feed Unit - KSA250AB4
Reference: E3W4W
Brand: Schneider Electric
Mfr. Part: KSA250AB4

Power feed unit designed for Canalis KS busbar system with 250A nominal current capacity and operating voltage range of 230V-690V AC. Features white aluminum construction (RAL 9001) with IP55 protection rating and IK08 impact resistance. Compatible with FL21 series flange plate. Supports left/right mounting with cable lug connection and single circuit design. Compliant with IEC 60439-2, IEC 61439-6, and Green Premium ecolabel standards.

View all
$526.52 USD
excl VAT
In stock Ships in 39d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 39 days. Up to 8 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Expected delivery in 41 - 42 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications

Description

Power feed unit designed for Canalis KS busbar system with 250A nominal current capacity and operating voltage range of 230V-690V AC. Features white aluminum construction (RAL 9001) with IP55 protection rating and IK08 impact resistance. Compatible with FL21 series flange plate. Supports left/right mounting with cable lug connection and single circuit design. Compliant with IEC 60439-2, IEC 61439-6, and Green Premium ecolabel standards.

Pros:

  • Versatile 230V-690V AC operating range
  • High IP55 protection and IK08 impact resistance
  • Flexible left/right mounting options
  • Compliant with multiple IEC standards

Specifications

Rated current at AC 50 Hz
250 A
Power supply position
End
Model
Single
Number of poles
5
Rated voltage at AC 50 Hz (V)
230 V to 690 V
Color
White
RAL-number
9001
Degree of protection (IP)i
IP55
Degree of protection (NEMA)
13
Length
501 mm
Width (mm)i
173.5
Heighti
308 mm
