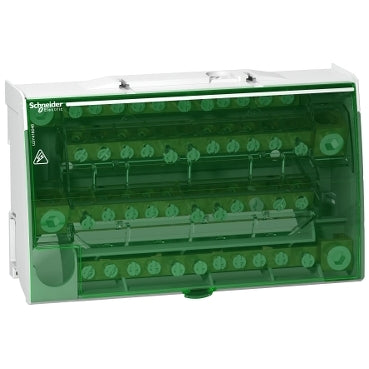

Schneider Electric INS Distribution Terminal Block - LGY416048
Notice: This product will be discontinued in the future
Schneider Electric INS distribution terminal block, conductor cross-section 70mm², 4 poles.
Notice: This product will be discontinued in the future
Description
The Linergy DS distribution blocks can be mounted on a standard DIN rail or on a mounting plate. This product is intended for 4P installations. The number of poles is 4. The total connection capacity is 48 ports (4x12). The Ie nominal operating current is 160A. The nominal peak resistance current is Ipk/60ms is 22kA, Ipk/-ms is 36kA.
The Icw short duration current according to IEC/EN 60947-7-1 is 8.4kA ms/1s. The width in the number of 9mm modules is 18. The connection capacity is 1 x 12mm diameter, 3 x 9mm diameter, or 4 x 6.5mm diameter. The nominal insulation voltage (Ui) is 500V AC and the nominal pulse voltage (Uimp) is 8kV. The Ue nominal operating voltage is 230V AC (Ph/N) or 440V AC (Ph/Ph).
The operating frequency is 50Hz or 60Hz. The degree of pollution is 3. The overvoltage category is III. According to the IEC/EN 60947-1 standard, the dielectric resistance is 2500VAC. The core cross section is 70mm2.
The dimensions are 100mm (H) x 174mm (W) x 50.5mm (D). The weight is 567g. The operating temperature is -25°C to + 55°C. It complies with the IEC/EN 60947-7-1 and IEC/EN 61439-1 & 2 standards.
