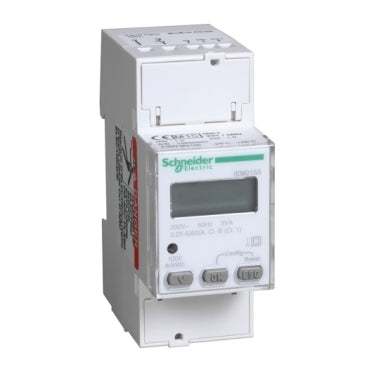

Schneider Electric Electricity Meter - A9MEM2155
Notice: This product is discontinued
Schneider Electric electricity meter direct measurement, pole type 1-phase, meter type electronic, display type digital, rated voltage (Un) N-L 92 - 276V, rated current (In) 63A, max current (Imax) 63A, frequency 45 - 65Hz, pulse rate 1000Imp/kWh, width in module units 2.
Notice: This product is discontinued
Description
The Acti9 iEM2100 series energy meters is a single-phase DIN rail-mounted energy meter designed for basic metering. This product family can be employed to monitor power consumption for each sector, unit or workshop and manage electrical installations for building management. The meter features an 8-character LCD display and a red LED indicator to display measured electrical parameters.
In accordance with the IEC 62053-21 standard, it provides Class 1 active energy accuracy and measures Active and Reactive Power, Active and Reactive Energy, Voltage, and Current. It is suitable for a 230VAC network, with a supply voltage range of 96 to 276 VAC at 50Hz or 60Hz. The meter can directly connect current measurement up to 63A with 32 samples per cycle only in a single phase and Neutral configuration.
The communication protocol used is M-Bus with 3 wire terminal support, and it does not have additional communication ports. The meter offers the capability to switch between 2 tariffs thanks to a dedicated tariff switching input.
The product dimensions are width 36 mm, depth 64 mm, height 90 mm and it weighs 175 g. This version complies with the standard EN 50470-3 class B, Measuring Instruments Directive (MID). It is compatible with power management software to leverage the benefits of the IoT digital power installation.
