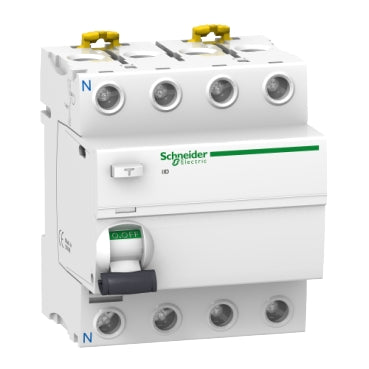

Schneider Electric Acti 9 Residual Current Device - A9R04425
Schneider Electric Acti 9 earth leakage circuit breaker 3, type leakage current A, nom. (measuring) current 25A, DIN rail, rated fault current 300A, nom. (measuring) voltage 400V, short circuit resistance (Icw) 1.5kA, connectable conductor cross-section duck 1 - 35mm², width in module units 4, frequency 50/60Hz.
- Regular price
- $167.01 USD
We sell only to registered businesses
Description
This Acti9 iID is a reliable, modular residual current circuit breaker (RCCB). It is a 4P circuit breaker with 25A In rated current and a sensitivity of 300mA. It has a protection class of type A. This product protects against electrical shock from indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of an earth fault.
It has a unique Visitrip indicator that reduces intervention time by showing the faulty device with a mechanical indicator on the front face. It also has a VisiSafe window with a green strip on the toggle, indicating a full opening of the poles, which allows for downstream maintenance. This product complies with the EN/IEC 61008-1 standard.
The rated breaking and making short circuit capacity (Im/IΔm) is 1500A. The conditional rated short circuit current (Inc/IΔc) is 10kA. The mechanical endurance can reach up to 20000 cycles and the electrical endurance can reach up to 15000 cycles. The operational voltage (Ue) ranges from 380VAC to 415VAC. The rated insulation voltage (Ui) is 500VAC. The rated impulse withstand voltage (Uimp) is 6kV. The frequency is either 50Hz or 60Hz.
This product can be mounted on a DIN rail. It has a width of 8 in 9mm pitches. The color of the product is white (RAL9003). It measures (W) 72mm x (H) 91mm x (D) 73.5mm and weighs 0.37kg. This product has an IP20 degree of protection (as per IEC/EN 60529 standard) and can achieve IP40 once in a modular enclosure. The operating temperature ranges from -25°C to 60°C and the storage temperature ranges from -40°C to 85°C.
