Schneider Electric Acti 9 Electricity Meter - A9MEM3165

Schneider Electric Acti 9 Electricity Meter - A9MEM3165
Schneider Electric Acti 9 Electricity Meter - A9MEM3165
Image may vary slightly
See specifications for accurate information.
Reference: T23KW
Brand: Schneider Electric
Mfr. Part: A9MEM3165

Schneider Electric Acti 9 IEM3000 electricity meter direct measurement, pole type three conductor/four conductor, meter type electronic, type of indication digital, rated voltage (Un) L-L 480V, rated voltage (Un) N-L 173 - 480V, rated current (In) 63A, max current (Imax) 63A, frequency 50 - 60Hz.

View all
Regular price
$389.46
excl VAT

In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 6 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Description
Specifications
Downloads
Related products

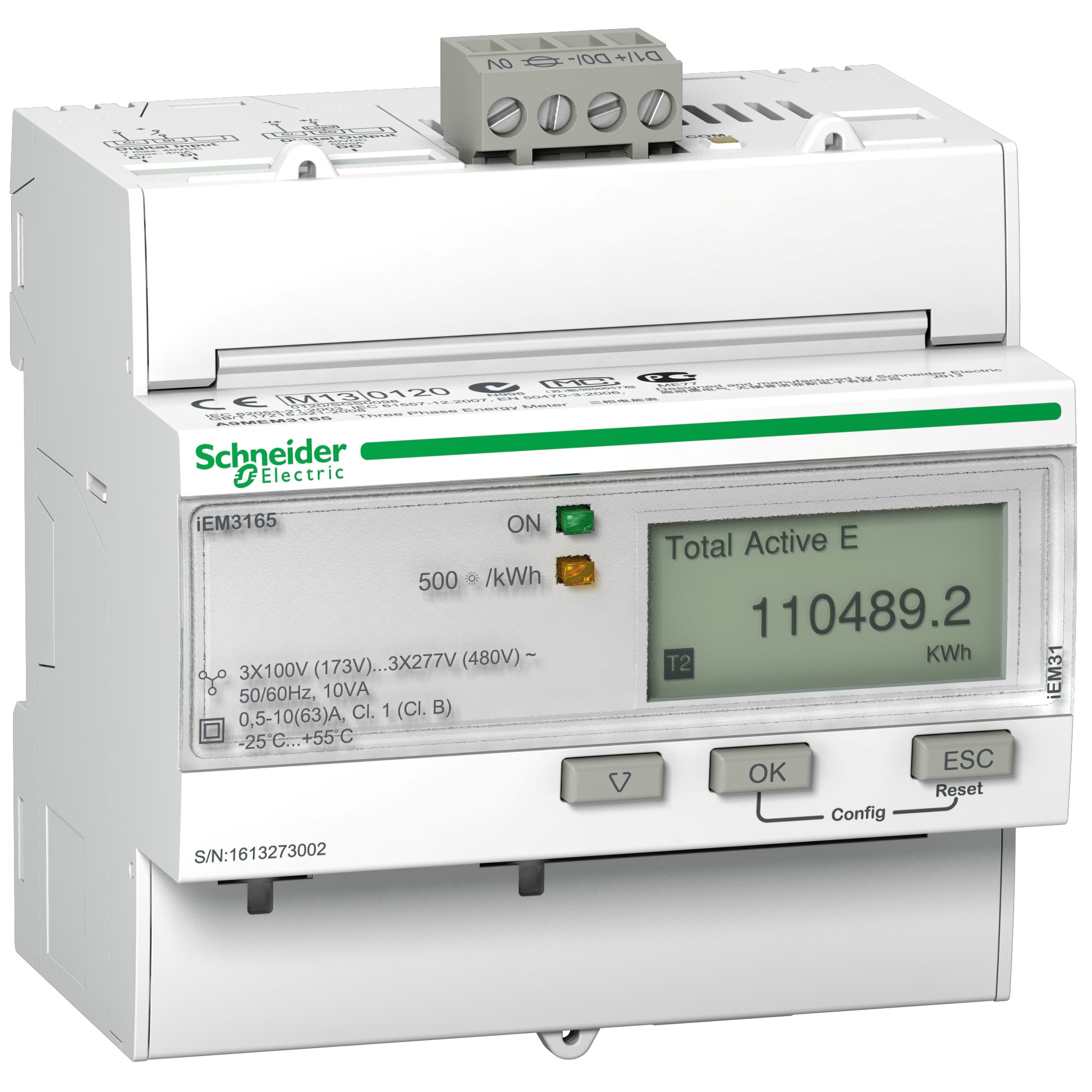

The Acti9 iEM3000 series energy meters are a compelling range of three-phase DIN rail-mounted energy meters with an LCD display. These meters come with additional local signaling that includes a green LED power-on indicator, a flashing yellow LED for accuracy checking, an overload alarm, and communication indicators. This meter is suitable for sub-billing applications and supports four tariff schedules.

It provides the following accuracy classes:

  • Active Energy Class 1 as per IEC 62053-21,
  • Active Energy Class B as per EN 50470-3,
  • Active Energy Class 1 as per IEC 61557-12.

The meter measures Active and Reactive Power, Active and Reactive Energy, Voltage, and Current, complete with four quadrant Energy measurement. It is designed for both 50Hz and 60Hz networks, with a supply voltage range from 100 to 277VAC or 173 to 480VAC. The line rated current for this meter goes up to 63A direct connect, and it supports Single Phase and Neutral, Three Phase, and Three Phase and Neutral configurations. The communication protocol is BACnet, with screw terminal support.

The product comes with one programmable digital input and one programmable digital output, which can function as a pulsed output. It holds certifications from EAC, CE, UL, and MID. Product dimensions are as follows:

  • width is 3.54 inches (90 mm),
  • depth is 2.72 inches (69 mm),
  • height is 3.74 inches (95 mm),
  • the weight is 9.17 oz (260 g).
