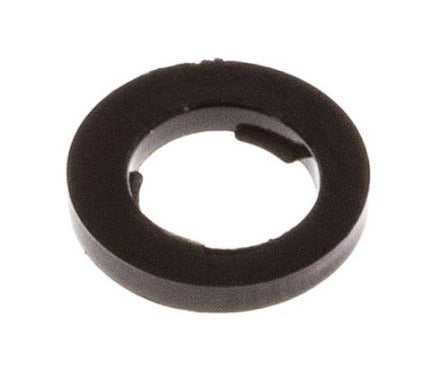

G 3/4" Polyamide Non-detachable Banjo Bolt Spacer 27x32x2.5 mm [20 Pieces]

G 3/4" Polyamide Non-detachable Banjo Bolt Spacer 27x32x2.5 mm [20 Pieces]
G 3/4" Polyamide Non-detachable Banjo Bolt Spacer 27x32x2.5 mm [20 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: S2AKQ-X20
Brand: Tameson

A gasket is used to seal cylindrical threads on a level sealing surface. This gasket is designed for G 3/4" threads. It has an internal diameter of 27 mm, an external diameter of 32 mm and 2.5 mm thickness. Polyamide gaskets are particularly pressure resistant  and dimensionally stable.

Contains 20 pieces

View all
$13.44
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 15 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

A gasket is used to seal cylindrical threads on a level sealing surface. This gasket is designed for G 3/4" threads. It has an internal diameter of 27 mm, an external diameter of 32 mm and 2.5 mm thickness. Polyamide gaskets are particularly pressure resistant  and dimensionally stable.

Pros:

  • Suitable for temperatures from -20 to 80°C
  • Suitable for operating pressure from -0.95 to 15 bar
  • The holding burls allow the ring to maintain its position on its own
  • Polyamide is suitable for water, air, CO2, oils, fuels, solvents, alcohols, lubricants and combustible gases

Downloads

Specifications

Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Outer-diameter (mm)
Outer diameter of the component.
27
Shape
Flat
Inner diameter (mm)
Inner diameter of the component.
32
Thickness (mm)
Thickness of the component.
2.5
Pressure (bar)
-0.95 bar to 15 bar
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
80
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-20
Material quality
The material quality provides more detailed information on the housing material. Choose a housing material that will not corrode from the media and environment.
Polyamide (PA)
