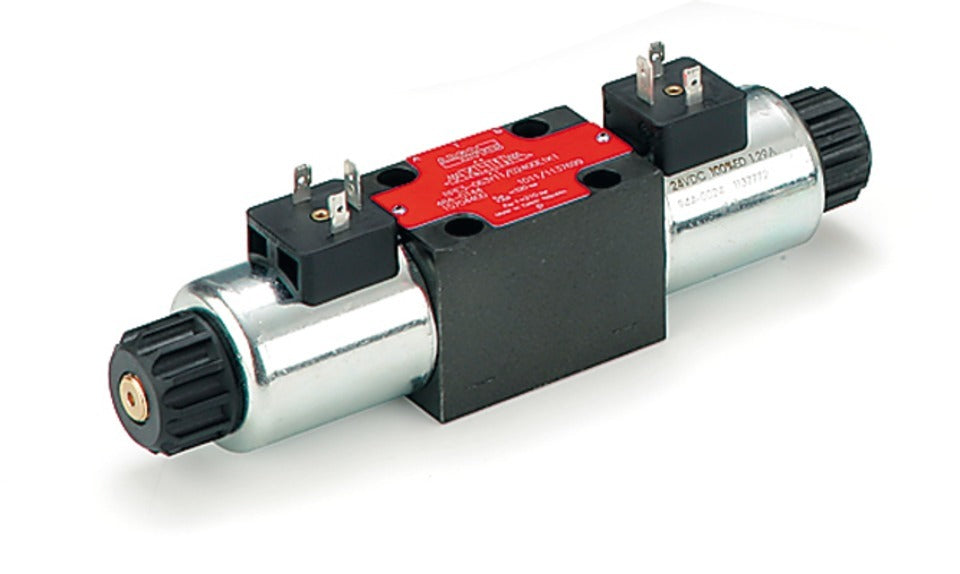

4/3 Way NG6 (D03) 24V DC Hydraulic Solenoid Valve - Argo Hytos RPE3-063C11
Argo-Hytos 4/3 way hydraulic solenoid valve (type RPE3-06) with NG6 (D03) mounting interface and a 24 V DC coil. The initial position of this valve is p open to t, a and b closed. The valve is suitable for a temperature range of -30 to 80 ° C (-22 to 176 ° F) and a max pressure of 350 bar (5075 psi). The valve has a housing of cast iron with NBR (nitrile rubber) sealing. The maximum flow rate is 80 l/min.
- Regular price

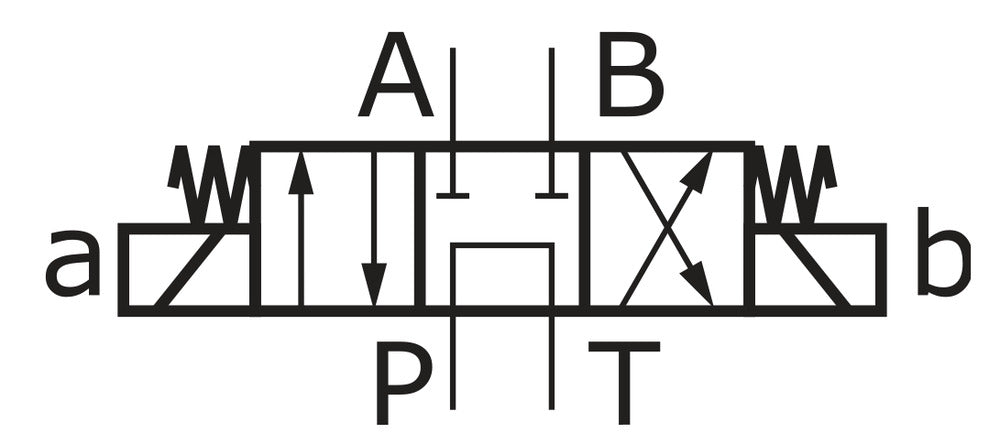

Argo-Hytos direct operating 4/3 way hydraulic solenoid vave with NG6 (D03) mounting interface (the mounting interface NG 6 is standardised according to DIN 24340-A6, ISO 4401-03, CETOP R 35 H-03 and NFPA-D03) and a 24 V DC coil. The valve has a cast iron housing with NBR (nitrile rubber) sealing. In the initial position the flow flows from P to T and the ports A and B are closed. The valve is suitable for systems with a max pressure of 350 bar (5075 Psi) and a operating temperature range of -30 - 80 ° C (-22 - 176 ° F). The valve has a flow rate of 80 l/min and a maximum allowable viscosity of 500 cSt. The NBR (nitrile rubber) sealing is suited for mineral oils. Manual override feature can be used to operate the system during power failure. The manual override can be operated up to 5-10 bar. Since the valve has a maximum operational pressure of 350 bar (5075 psi), it can be used for high pressure applications. The valve has an IP65 rating.
- It is equipped with a robust manual override for easy comissioning and in case of a power outage
- Good protection against the environment thanks to the IP65 rating
- Suitable for high pressures up to 350 bar
- The valves are available with interchangeable DC or AC solenoids
- Requires a continuous electrical current to maintain position
The Argo-Hytos RPE3-06 series hydraulic solenoid valves are used to electrically direct hydraulic fluid to and from a pump/actuator. These valves have 4 ports and can be 2 or 3 positions and conform to DIN 24340-A6, ISO 4401-03, CETOP R 35 H-03 and NFPA-D03 mounting patterns. The valves are operated by either one or two electronic coils, depending on the operational type (4/2- or 4/3-way). These valves have a high transmittance of hydraulic pressure up to 350 bar and an optimized design to minimize pressure drop. The valves are available with interchangeable DC or AC solenoids.
