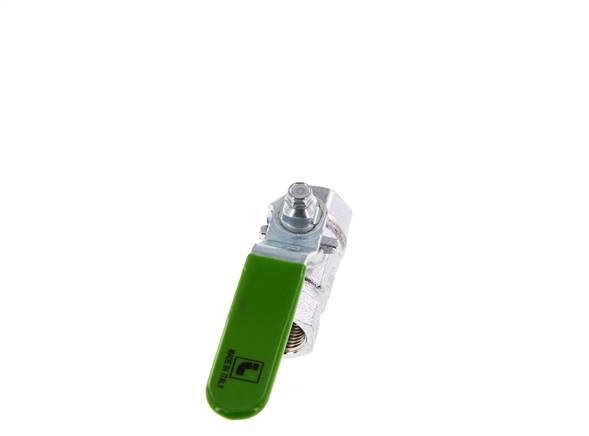

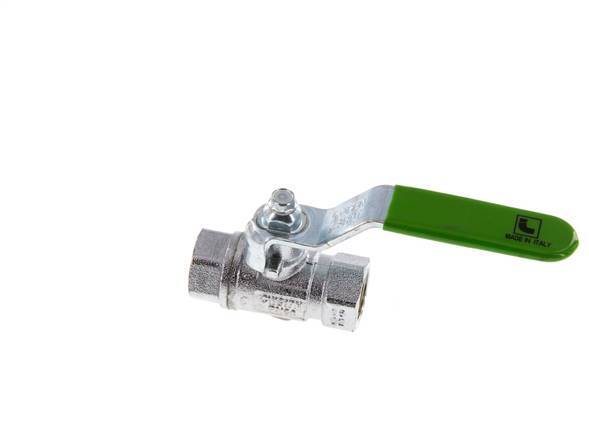

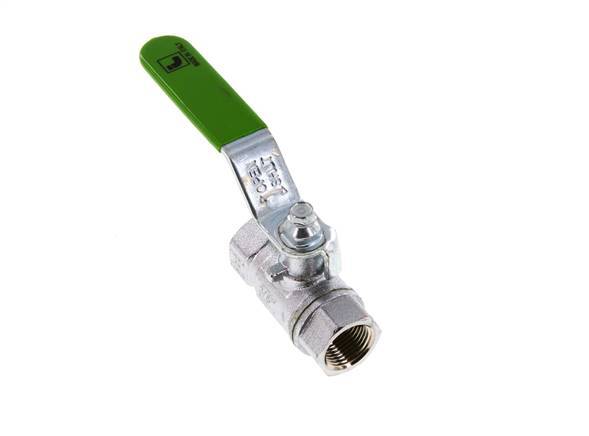

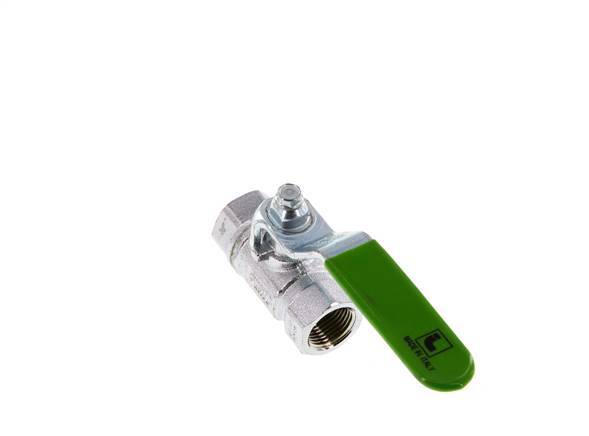

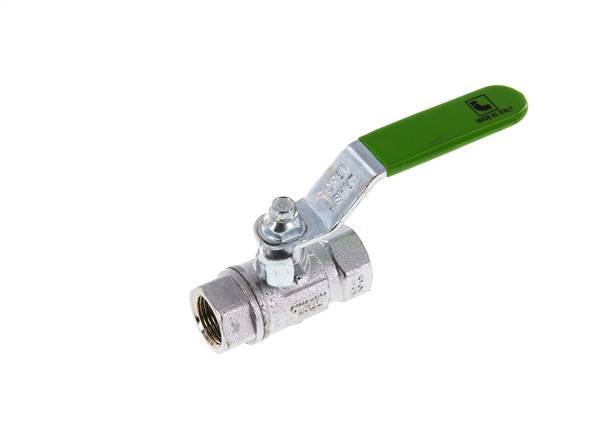

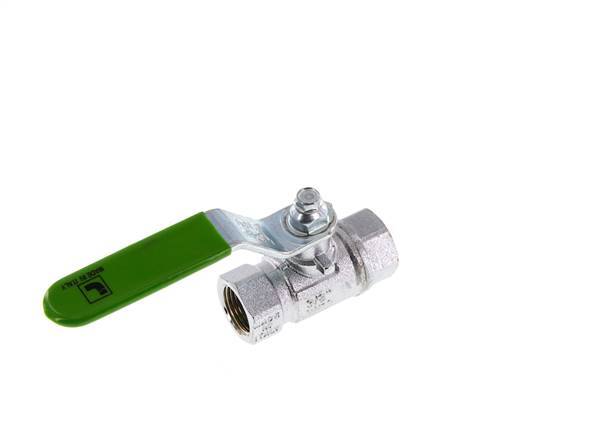

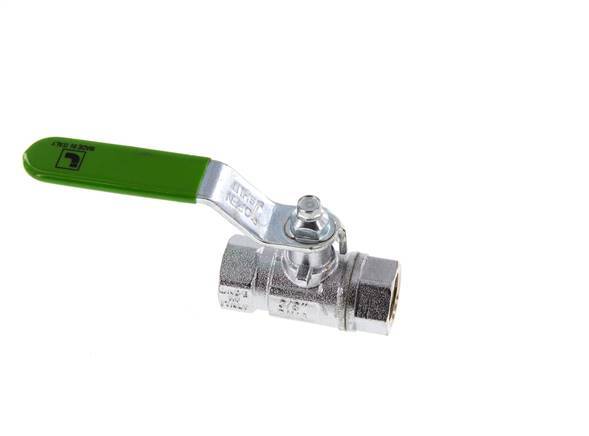

Rp 3/8 inch Drinking Water 2-Way Brass Ball Valve

Rp 3/8 inch Drinking Water 2-Way Brass Ball Valve
Rp 3/8 inch Drinking Water 2-Way Brass Ball Valve
Rp 3/8 inch Drinking Water 2-Way Brass Ball Valve
Rp 3/8 inch Drinking Water 2-Way Brass Ball Valve
Rp 3/8 inch Drinking Water 2-Way Brass Ball Valve
Rp 3/8 inch Drinking Water 2-Way Brass Ball Valve
Rp 3/8 inch Drinking Water 2-Way Brass Ball Valve
Rp 3/8 inch Drinking Water 2-Way Brass Ball Valve
Image may vary slightly
See specifications for accurate information.
Reference: BL2BC-M-DW-038
Brand: Tameson

2-Way drinking water approved brass ball valve with Rp 3/8 inch ports and a handle for on/off flow control. 10 mm nominal diameter and a maximum pressure of 50 bar (725 psi). The valve can be used within a temperature range from -20 to 150 °C (-4 to 302 °F). Chromium-plated brass housing, brass ball and PTFE/NBR seals.

View all
Regular price
$12.17 USD
excl VAT

In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 105 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

Description
Specifications
Downloads
Related products

This 2-way drinking water approved ball valve from Tameson with a nominal diameter of 10 mm is designed for on/off flow control.

The valve has Rp 3/8 inch threaded ports. This is BSPT (British Standard Pipe Taper). With our range of 3/8 inch fittings, the valve can be installed in any pipe.

The housing of the valve is made of chromium-plated brass, the ball is made of brass and the seals are made of PTFE/NBR. The valve can be used within a temperature range from -20 to 150 °C (-4 to 302 °F).

Use the handle to operate the valve. By rotating it 90 degrees, the valve will open or close. If the handle is perpendicular to the pipe, the valve is closed. This valve is not suitable for electrical or pneumatic control. For this purpose, valves with an ISO-Top flange (ISO 5211) are recommended.This valve is not suitable for electrical or pneumatic control. For this purpose, valves with an ISO-Top flange (ISO 5211) are recommended.

Pros:

  • DVGW and KTW approved for drinking water (EN 13828)
  • Wide operating temperature range

Cons:

  • Not suitable for aggressive media
  • Suitable only for manual actuation

BL2BC-M-DW series

The BL2BC-M-DW series includes ball valves with the DVGW and the KTW approval for use in drinking water appliances. The valves are designed to prevent stagnation of the media and bacteria development. The valves are equipped with female threaded ports from 1/4 to 2 inch. The ports conform to BSPT (British Standard Pipe Taper). The housing is made of chromium-plated brass and the seals are PTFE/NBR. The valves are suitable for drinking water and water up to a maximum pressure of 50 bar (725.2 psi). This series is handle operated within the temperature range from -20 to 150 °C (-4 to 302 °F).
