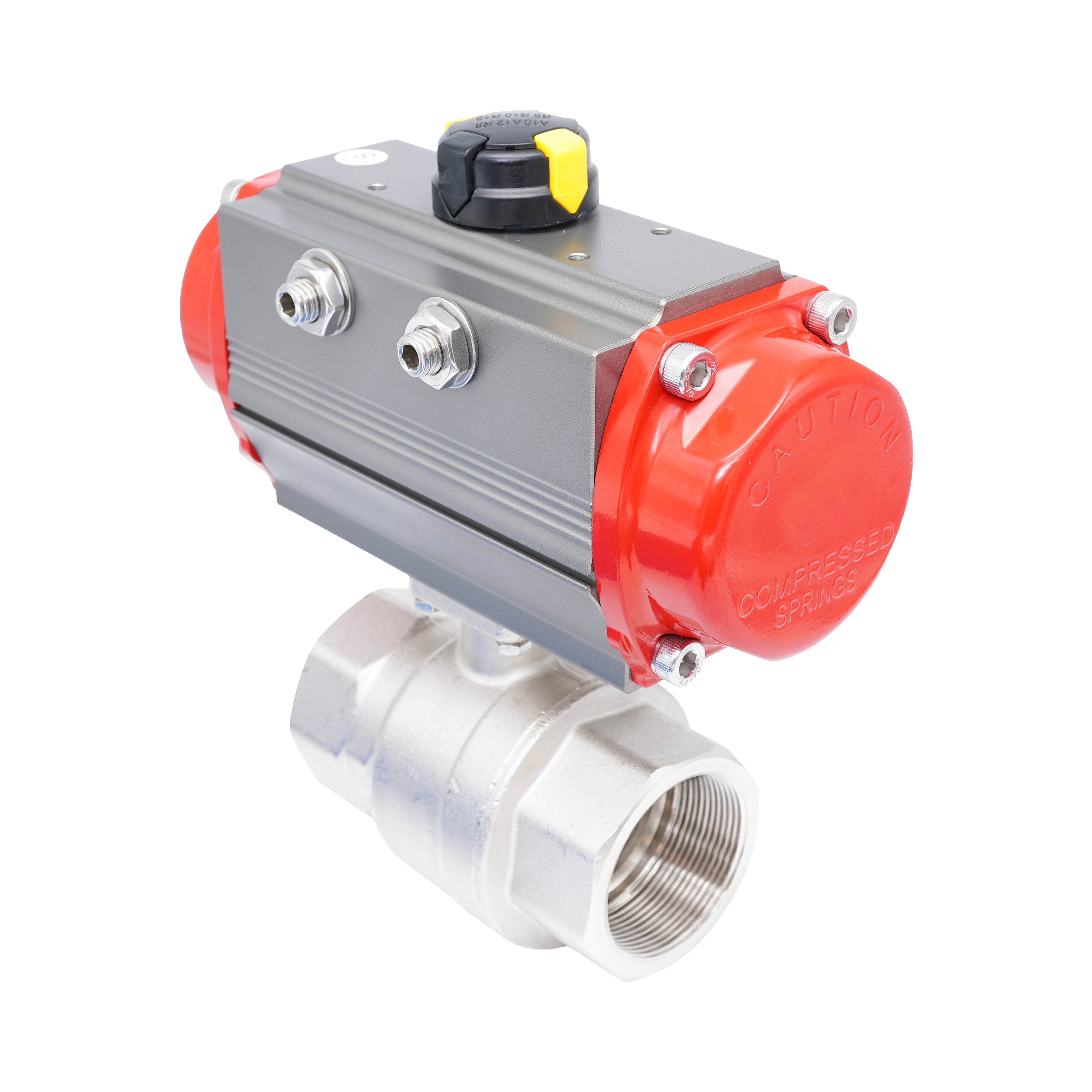

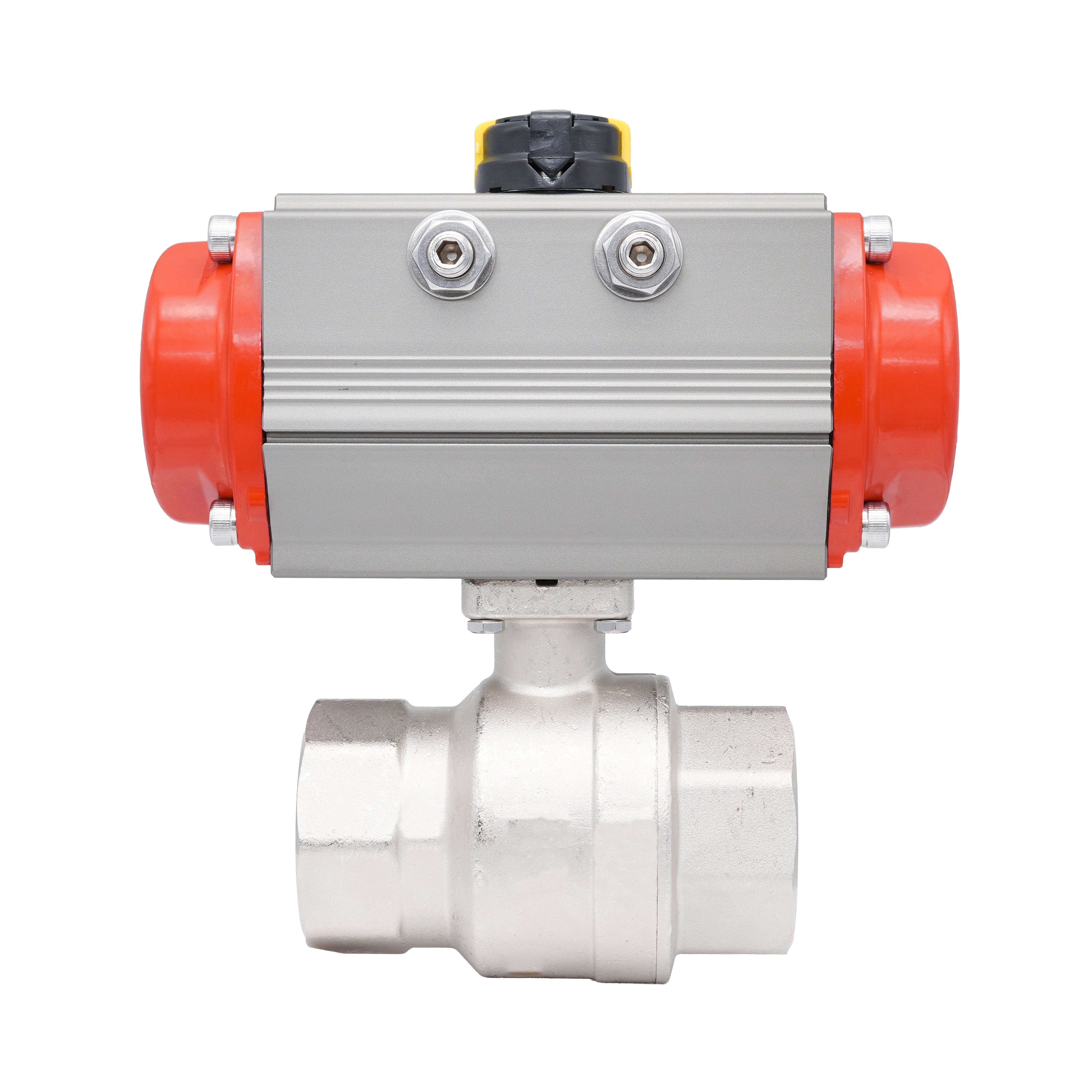

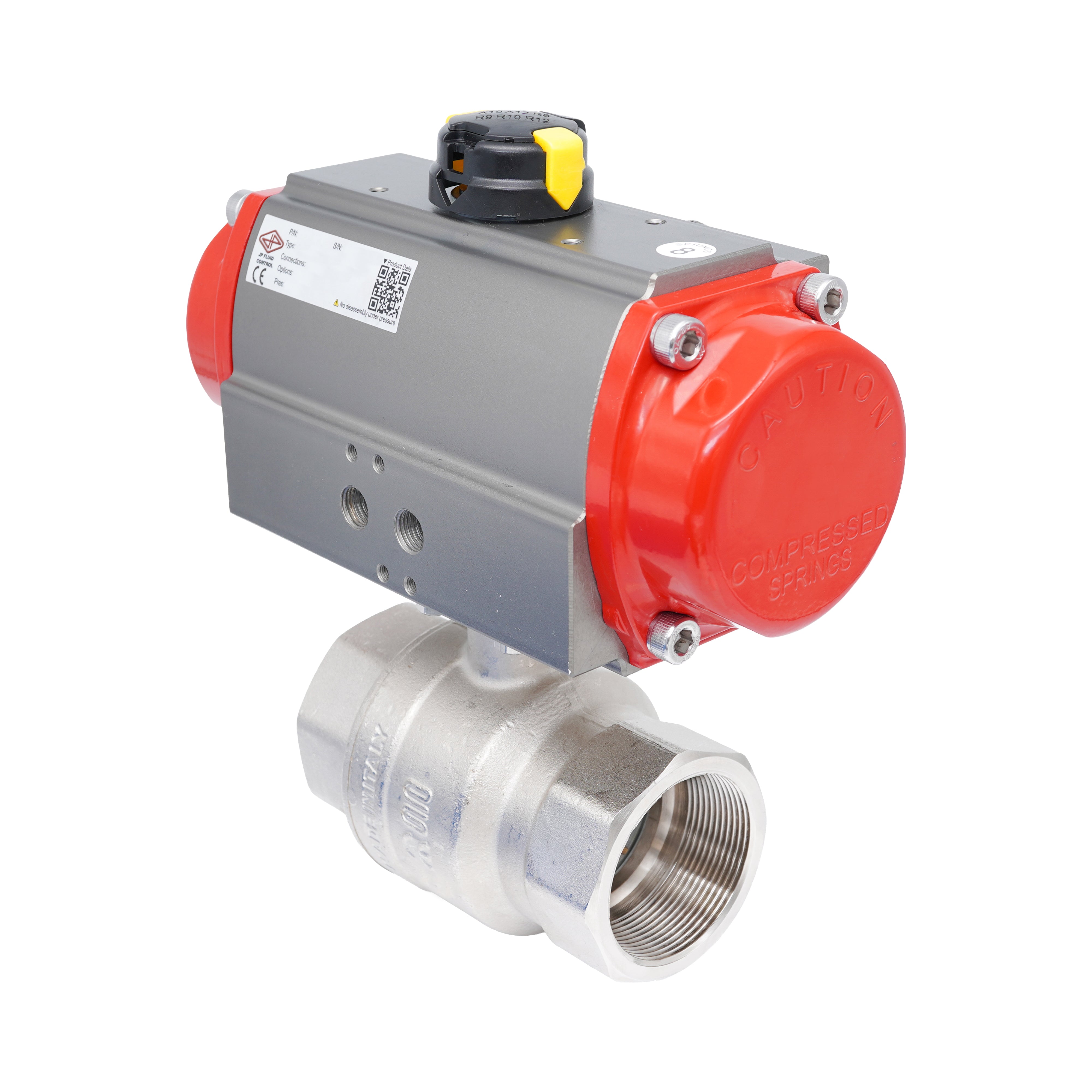

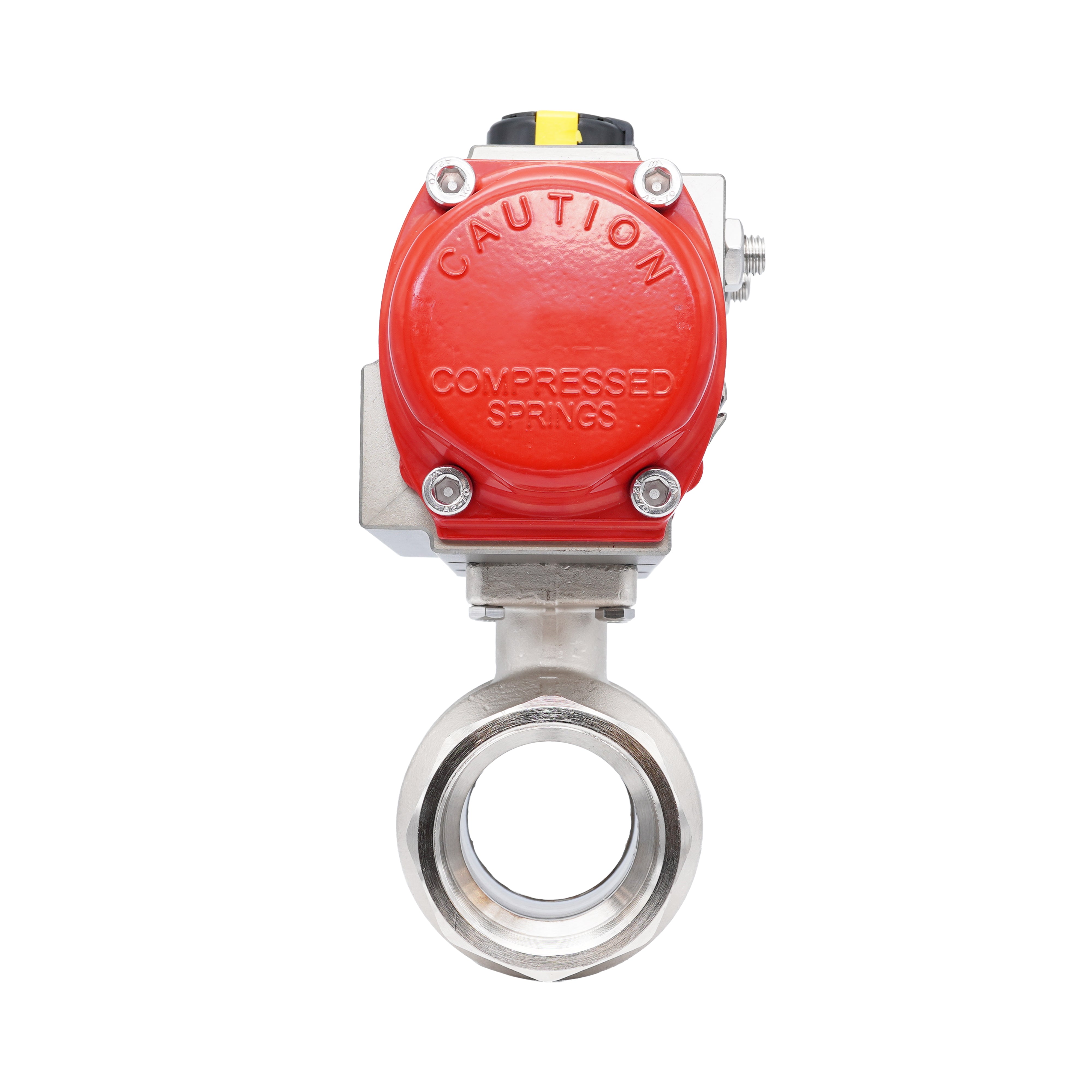

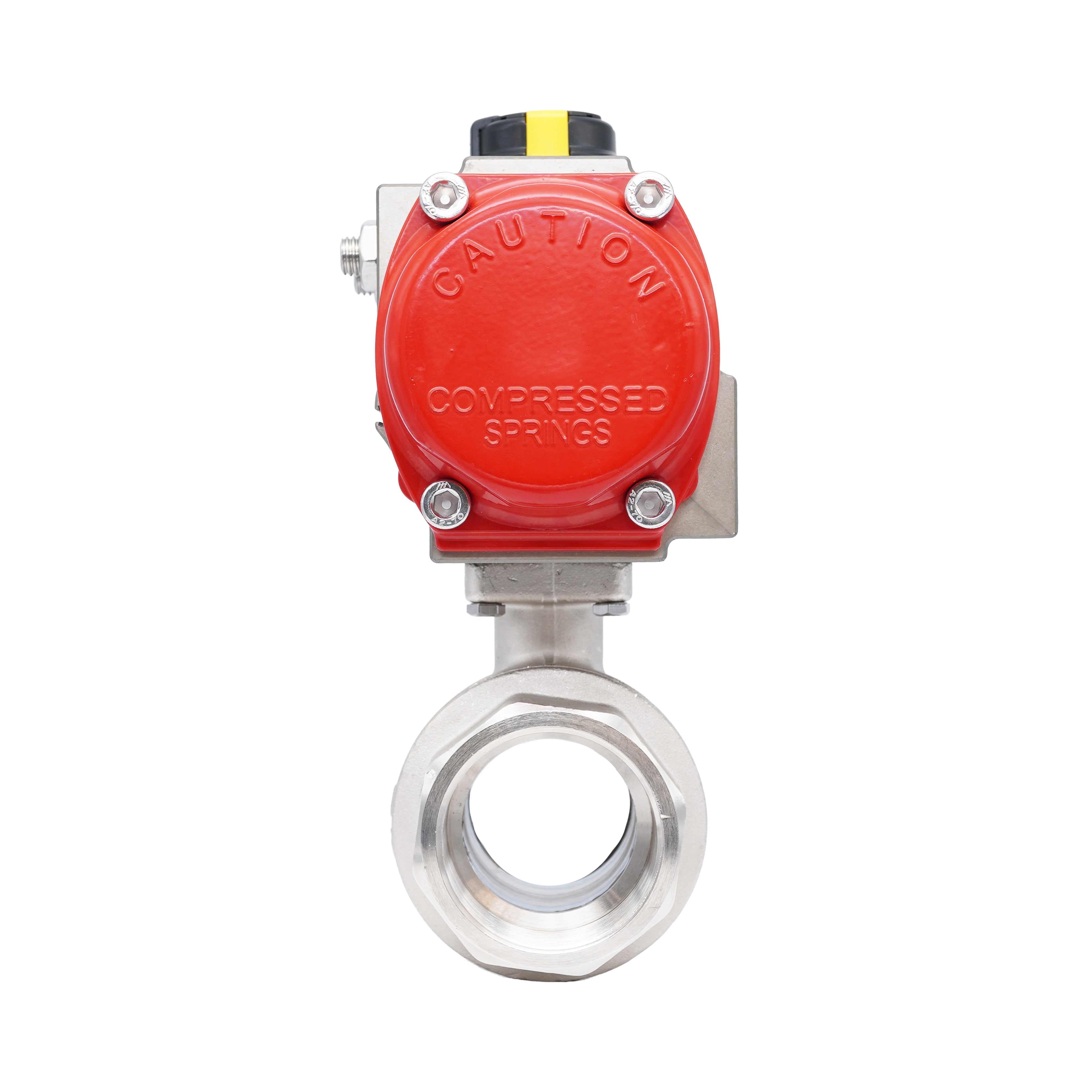

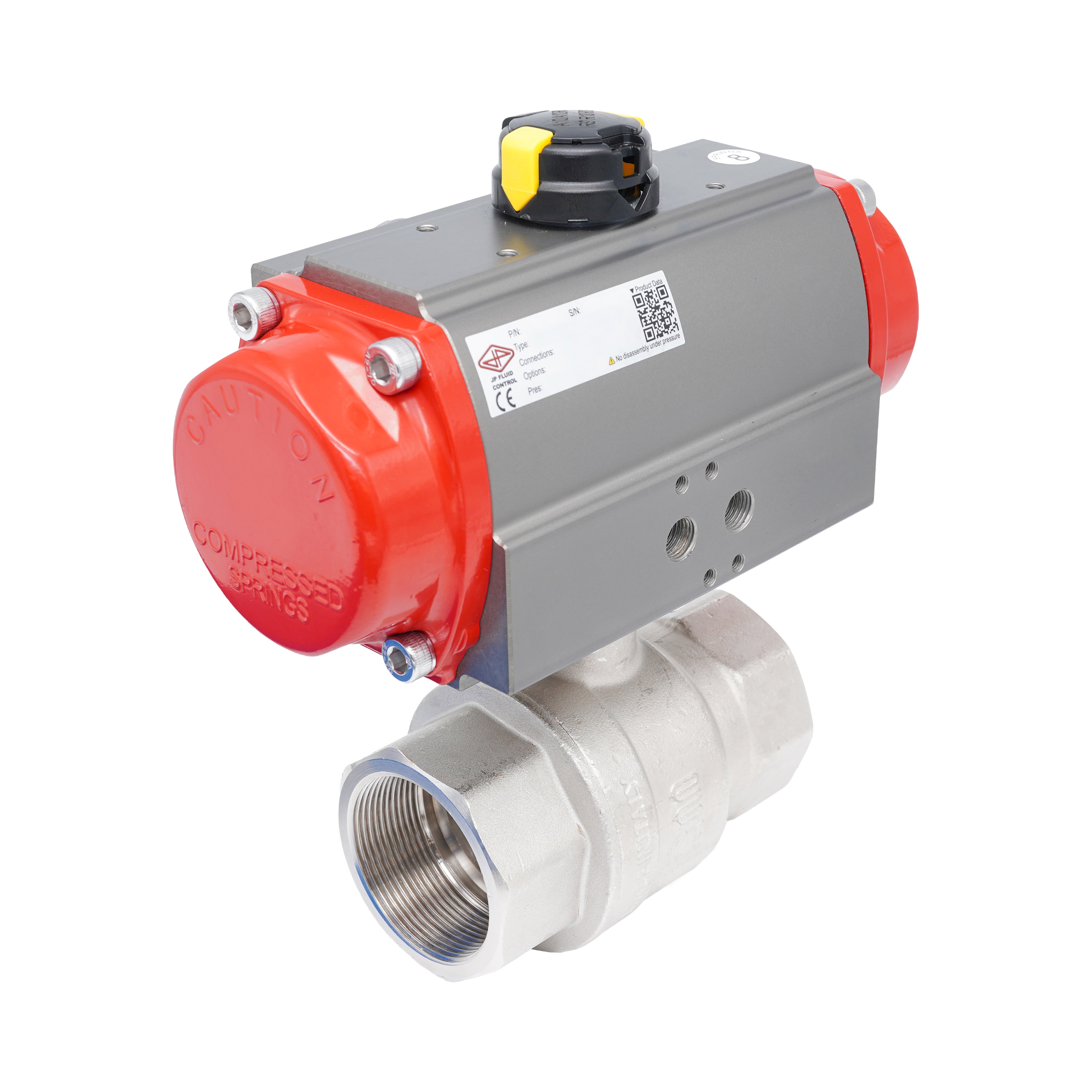

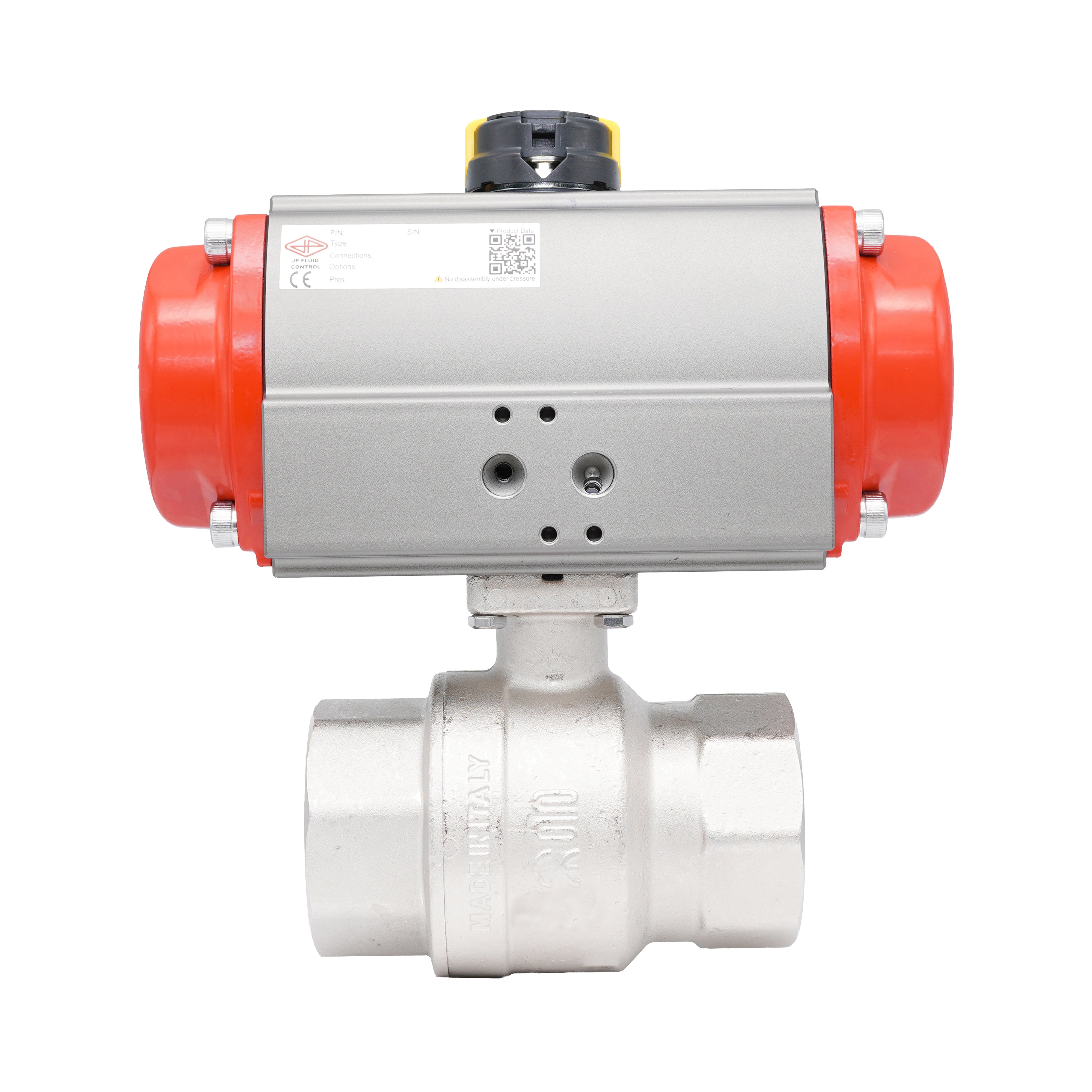

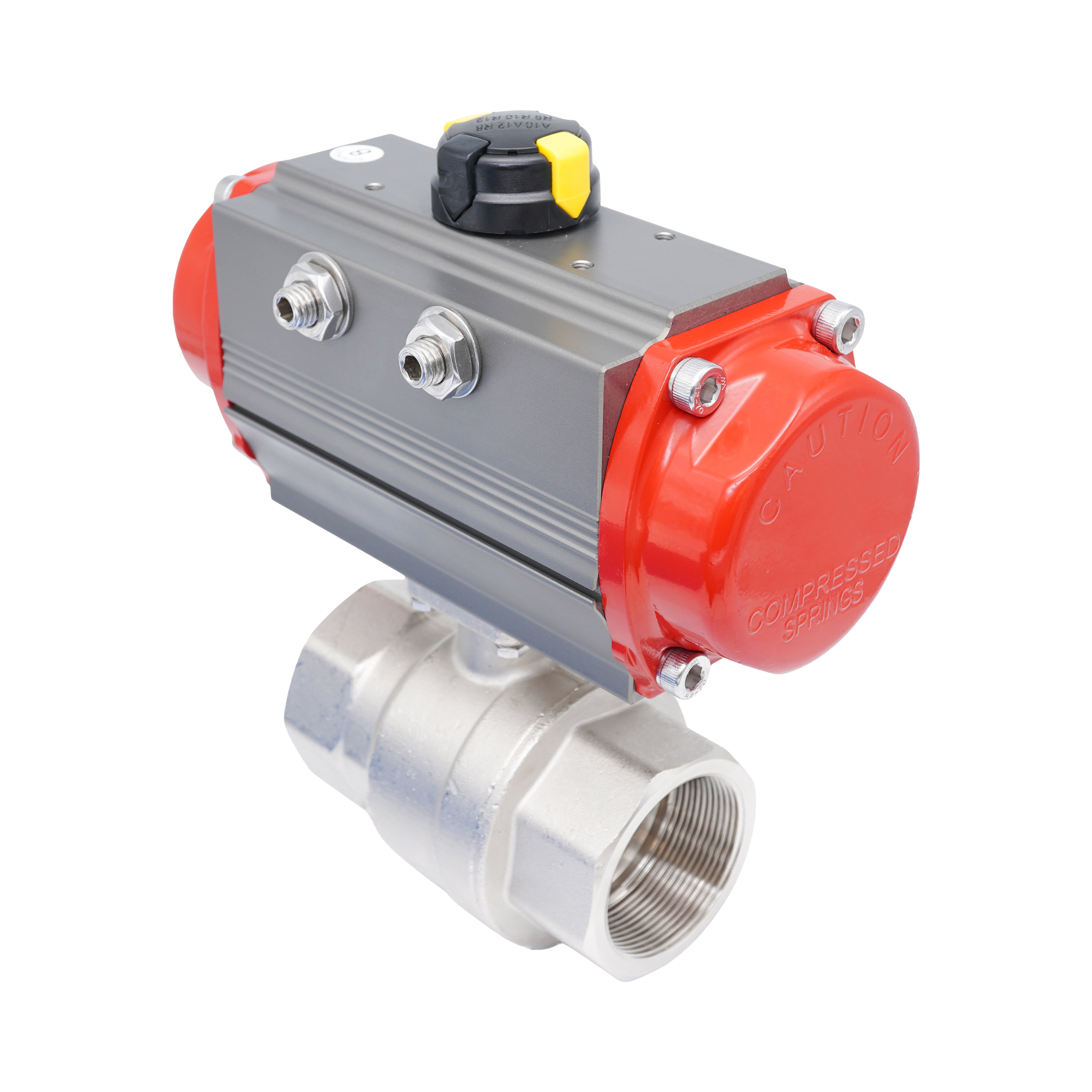

Rp 3" 2-Way Pneumatic Brass Ball Valve - Spring Opening
Reference:
V3M4X
Brand:
TamesonPRO
Mfr. Part:
1141-300 | PR100B
Rp 3" BSP female 2-way pneumatic brass ball valve, spring opening. Fail-safe open on loss of air pressure. PTFE ball seal and EPDM stem seal - suitable for water and compressed air. Rated to 16 bar at 20 °C, media temperature -20 to 130 °C (-4 to 266 °F).
- Regular price
- $1,033.03 USD
excl VAT
We sell only to registered businesses
Description
Specifications
Downloads
Related products
Description
This Rp 3" BSP female 2-way spring opening pneumatic brass ball valve opens automatically on loss of air pressure - suited for applications where a defined open position is required on loss of air pressure.
The actuator operates across an ambient temperature range of -20 to 80 °C, suited for outdoor and industrial environments. No manual override is fitted - the valve cannot be operated without an air supply.
PTFE ball seal and EPDM stem seal make it suitable for water and compressed air. Rated to 16 bar at 20 °C, media temperature range -20 to 130 °C (-4 to 266 °F).
Pros:
- Ambient temperature -20 to 80 °C - suited for outdoor and industrial environments.
- Defined fail-safe position - opens automatically on loss of air pressure.
Cons:
- Suitable only for hot, cold water and compressed air.
- No manual override - valve cannot be operated without air supply.
