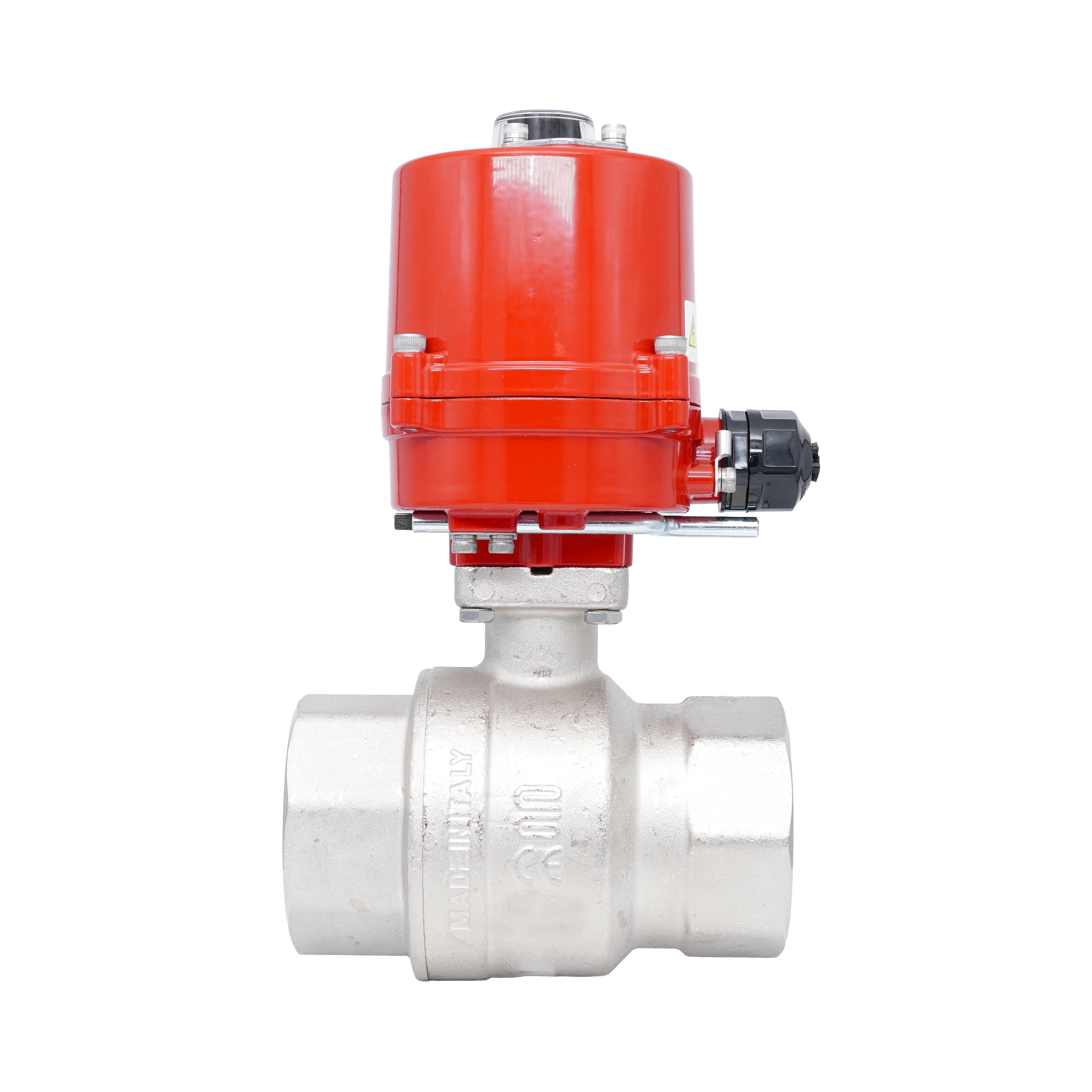

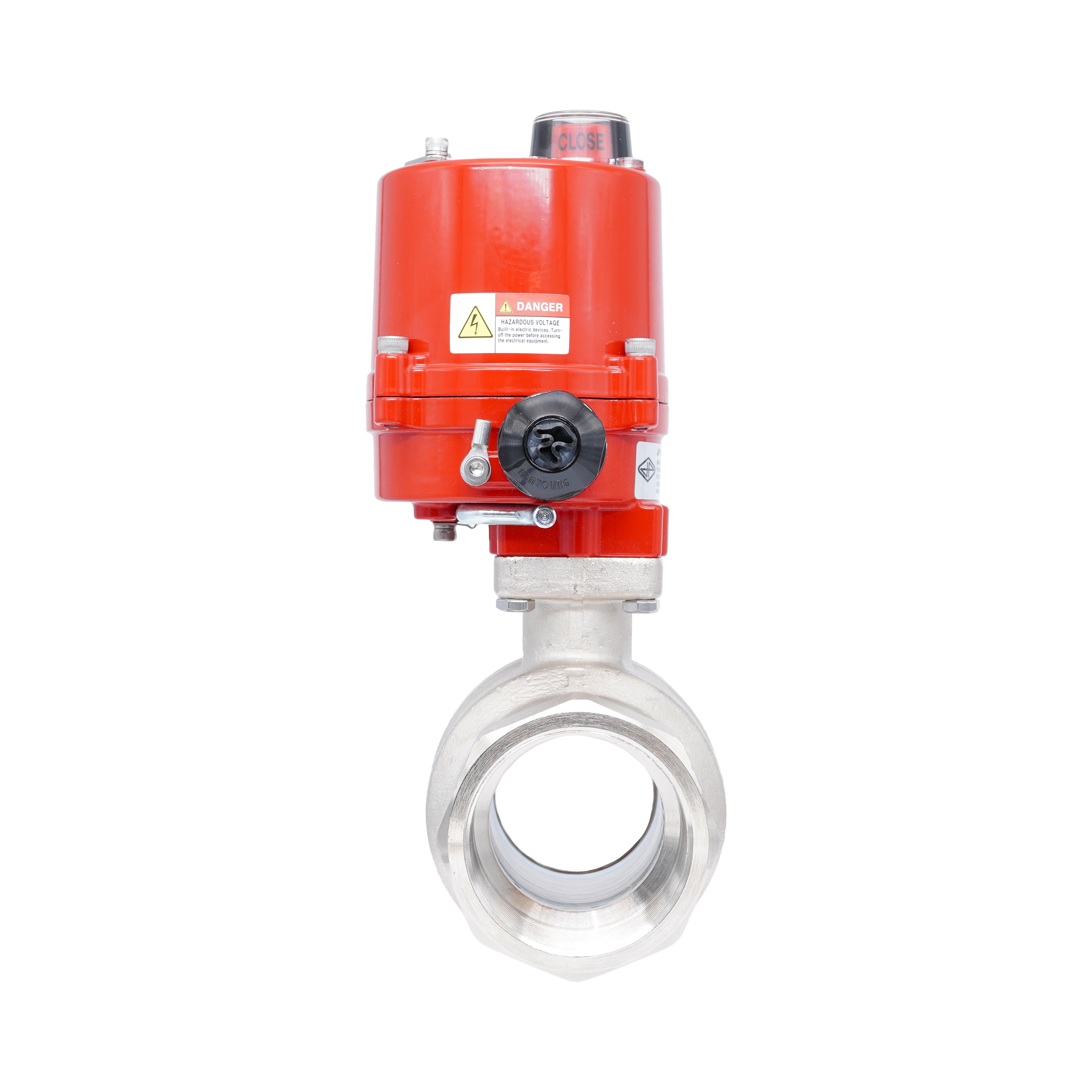

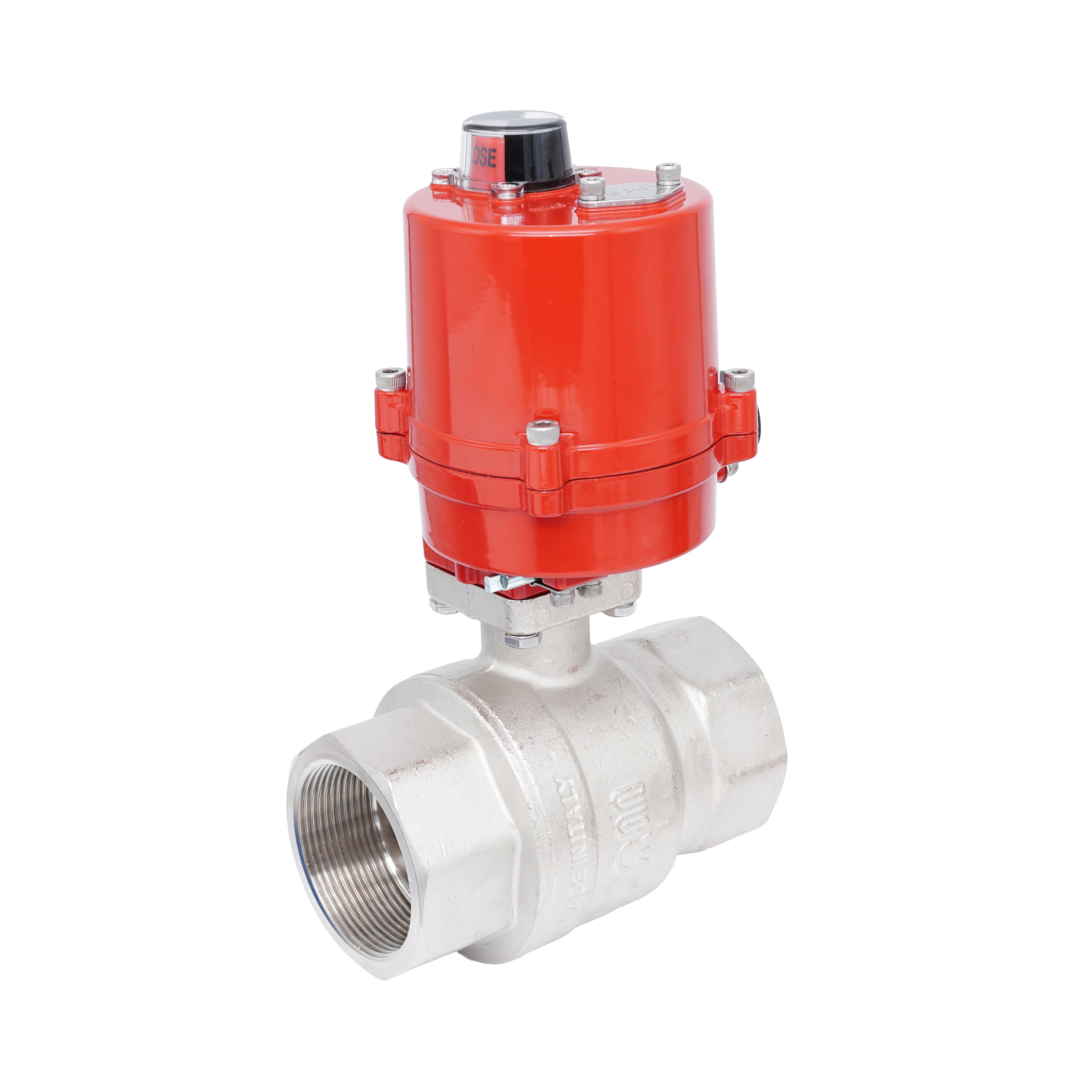

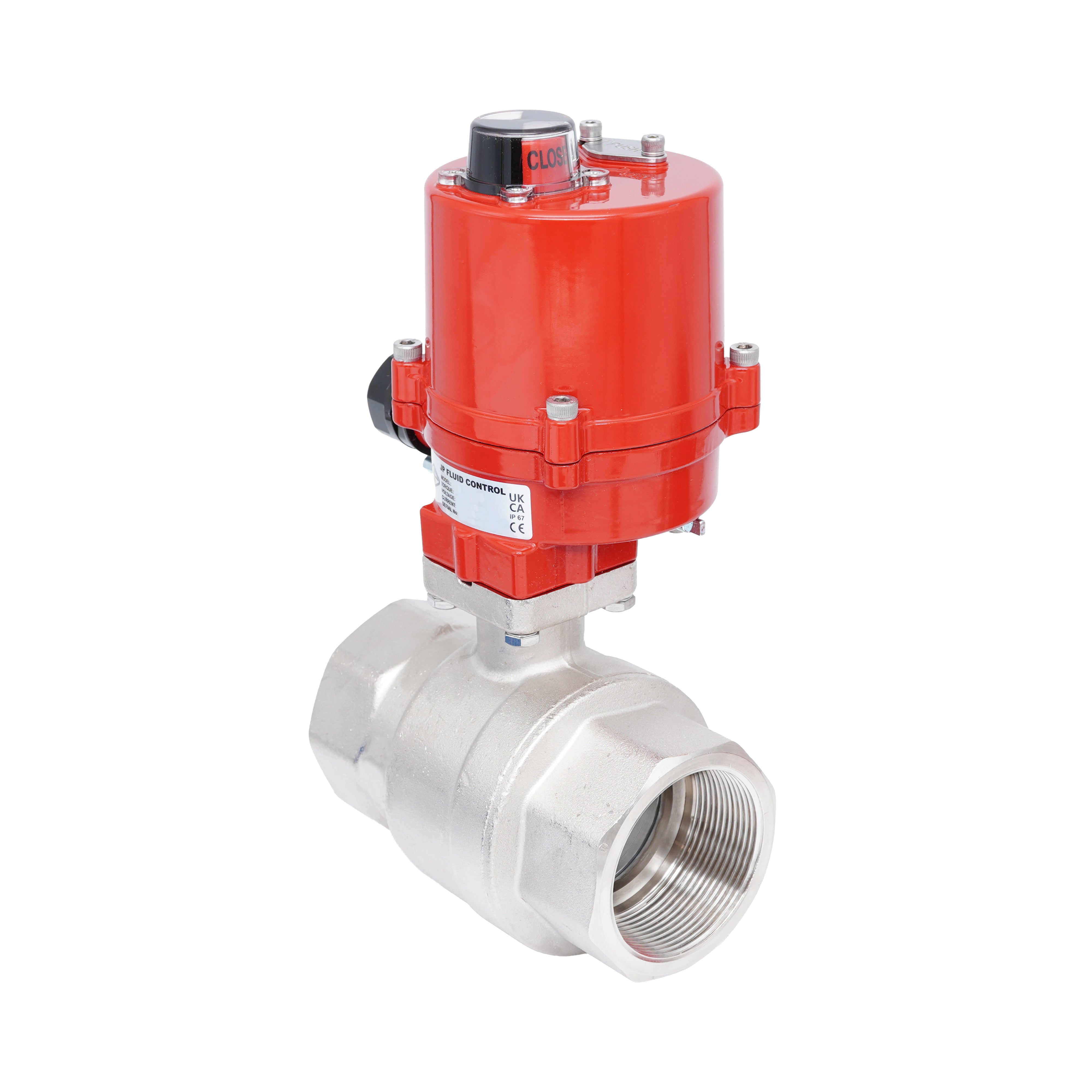

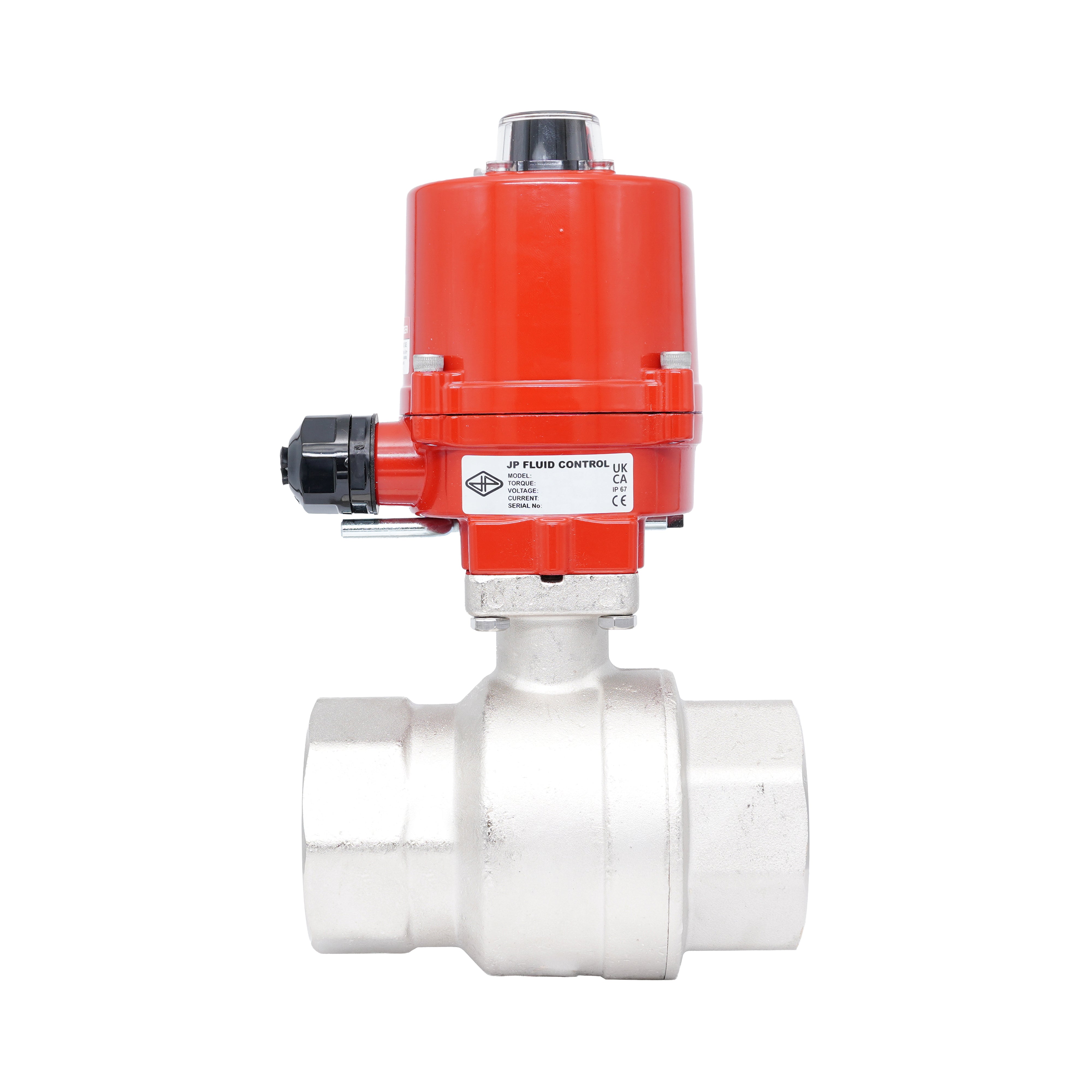

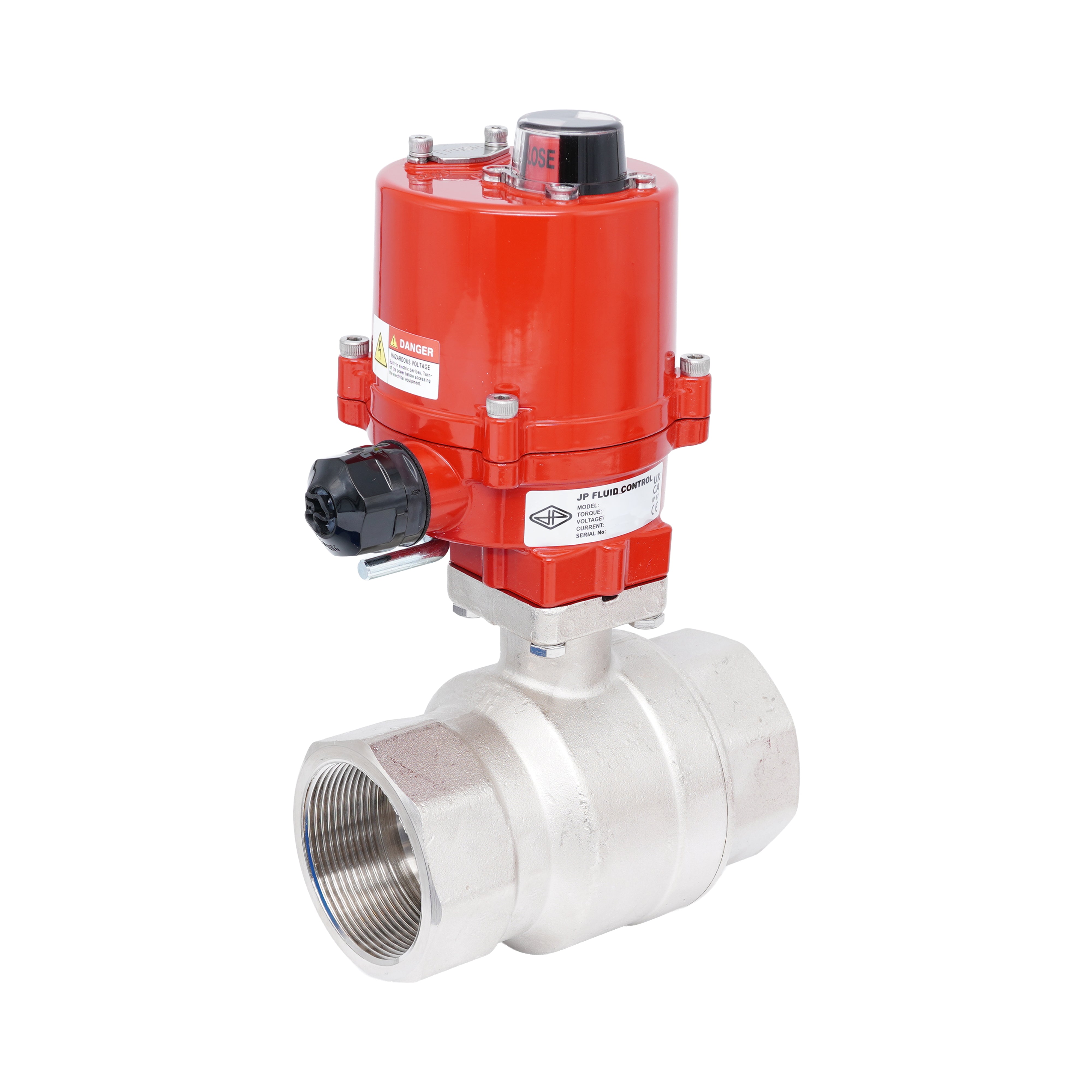

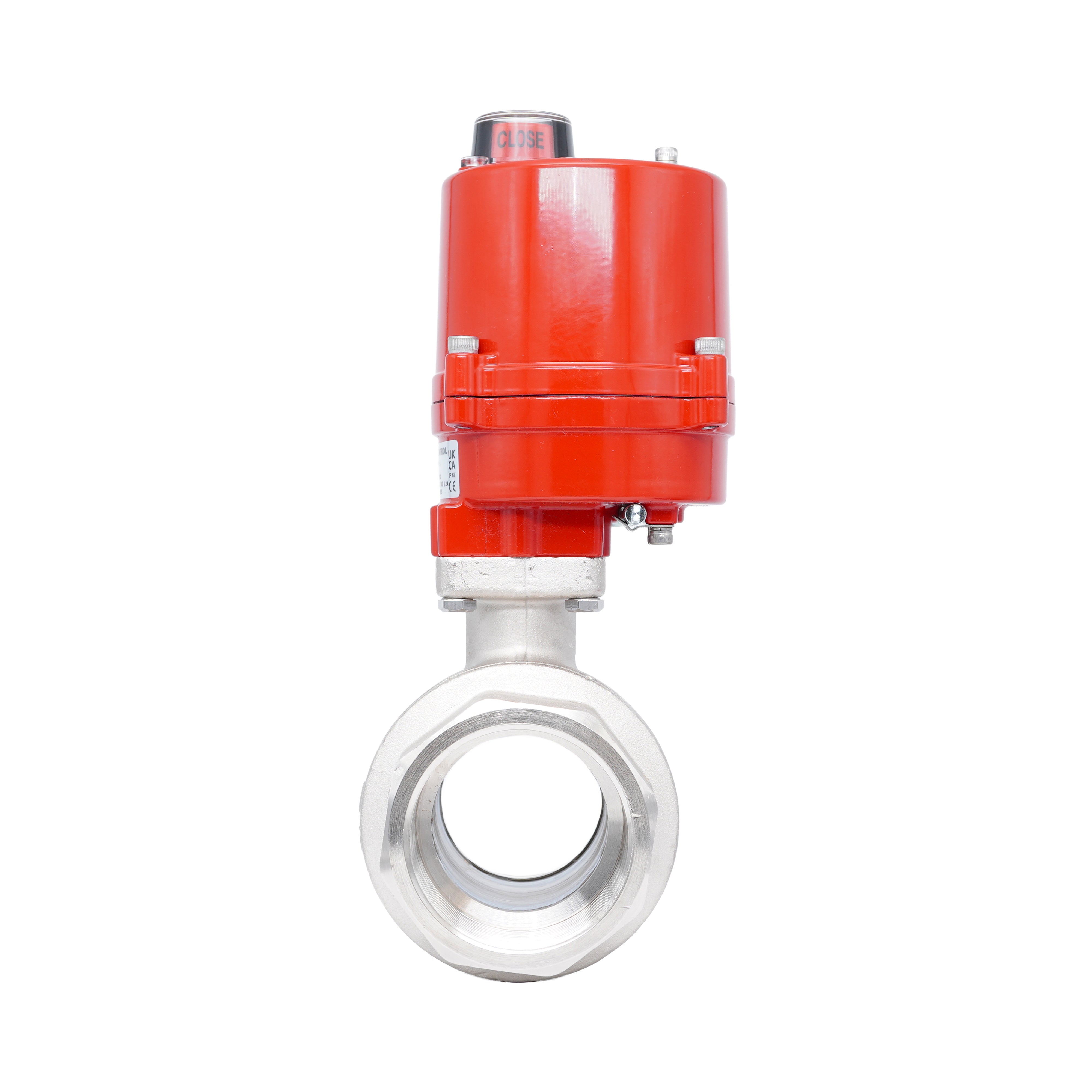

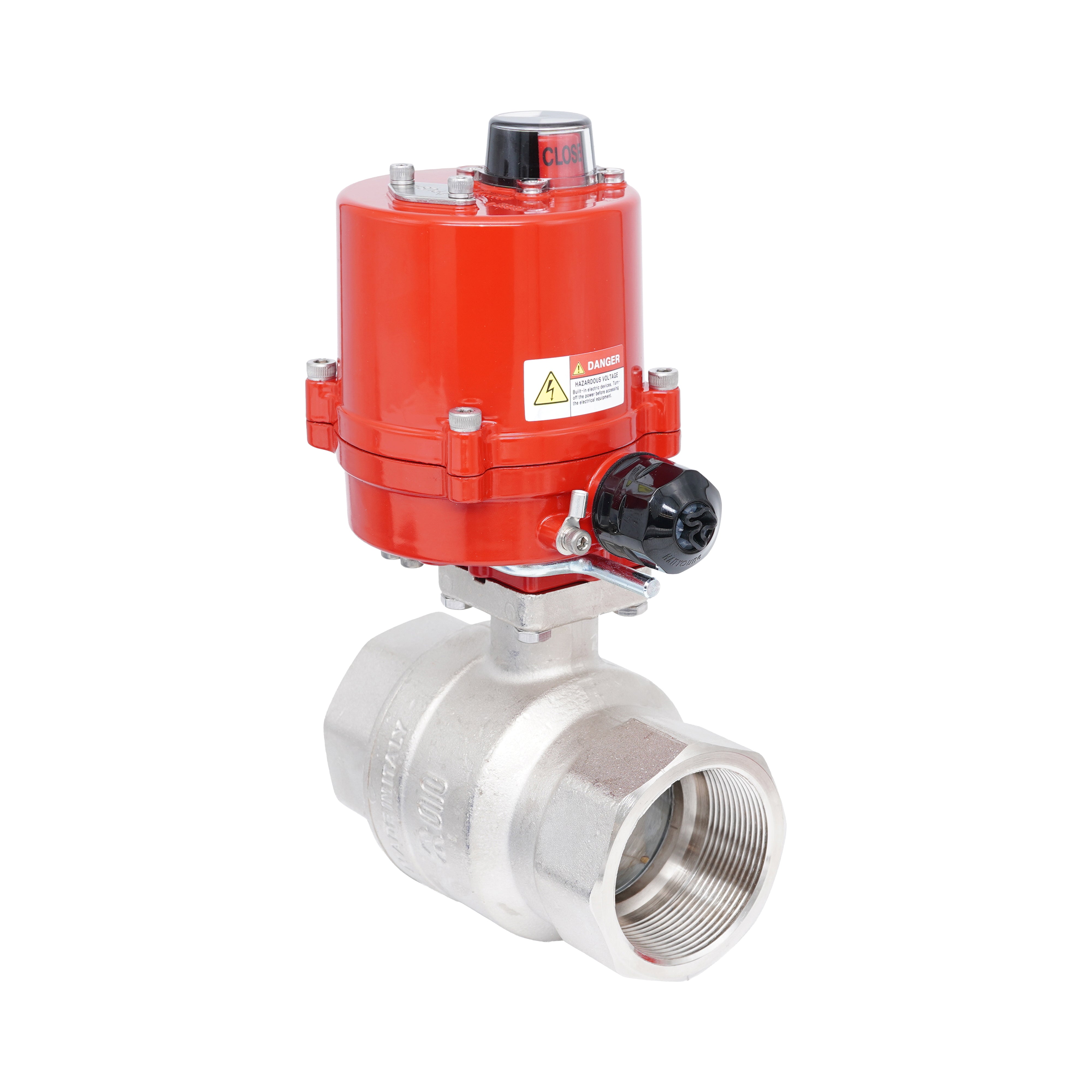

Rp 3" 2-Way Electric Brass Ball Valve 24 V AC/DC
Reference:
V3M4T
Brand:
TamesonPRO
Mfr. Part:
1141-300 | AG-550-B
Rp 3" BSP female 2-way electric brass ball valve, 24 V AC/DC, on/off control. IP67 rated. PTFE ball seal and EPDM stem seal - suitable for water and compressed air. Rated to 16 bar at 20 °C, media temperature -20 to 130 °C (-4 to 266 °F).
- Regular price
- $890.99 USD
excl VAT
We sell only to registered businesses
Description
Specifications
Downloads
Related products
Description
This Rp 3" BSP female 2-way on/off electric brass ball valve operates at 24 V AC/DC. It opens or closes fully in 8 seconds. The actuator is rated IP67, making it suitable for outdoor, wet, and washdown environments. Ambient operating temperature range is -10 to 50 °C.
Open and close limit switches provide end position feedback, confirming the valve state to your control system. A manual override allows the valve to be operated by hand without electrical power - useful during commissioning or power failure.
PTFE ball seal and EPDM stem seal make it suitable for water and compressed air. Rated to 16 bar at 20 °C, media temperature range -20 to 130 °C (-4 to 266 °F).
Pros:
- IP67 rated - suitable for outdoor, wet, and washdown environments.
- Opens/closes in 8 s - fast response for automation.
- End position feedback - open/close limit switch for control system integration.
- Manual override - operable by hand without electrical power.
Cons:
- Suitable only for hot, cold water and compressed air.
- Actuator ambient temperature limited to 50 °C - check pneumatic actuator variants.
