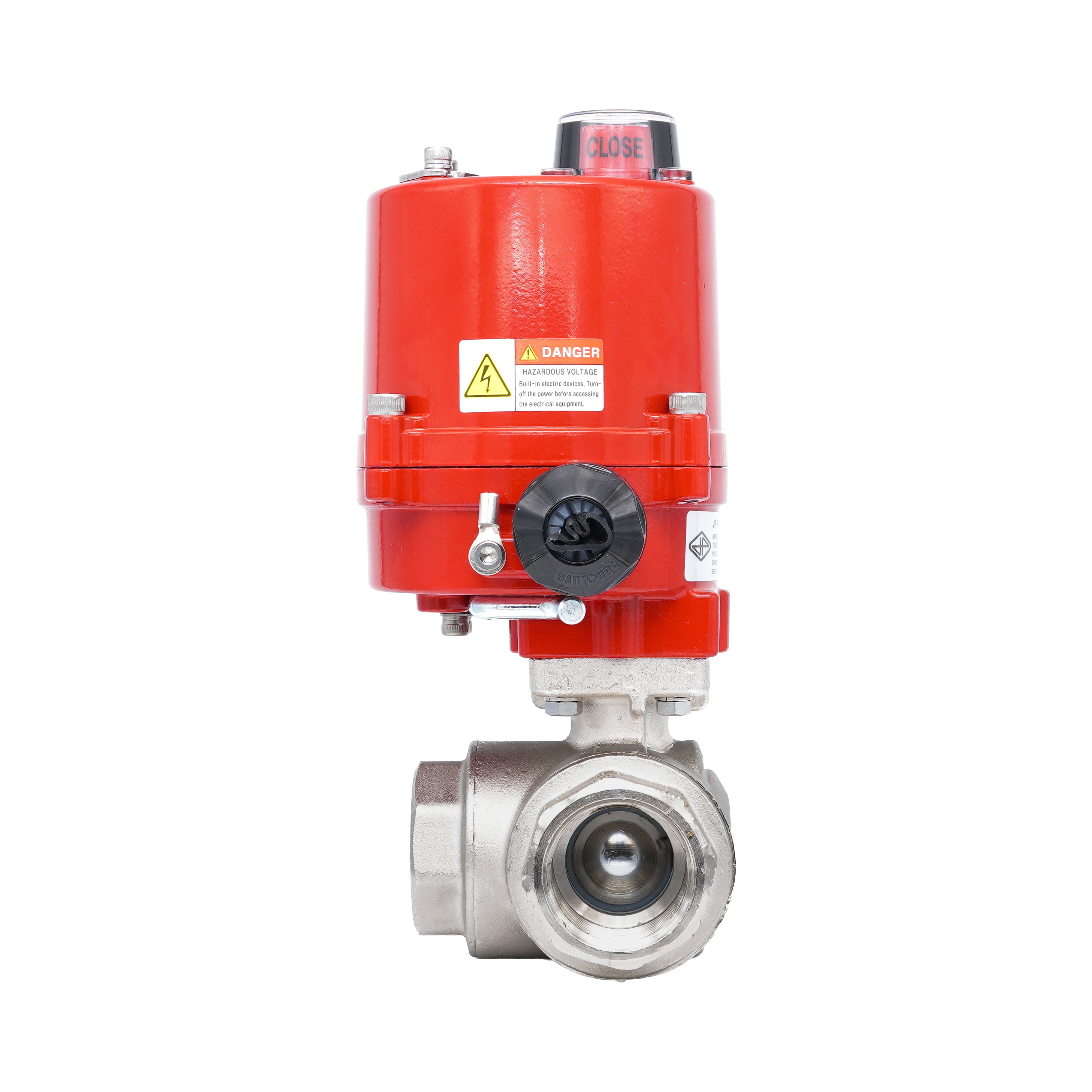

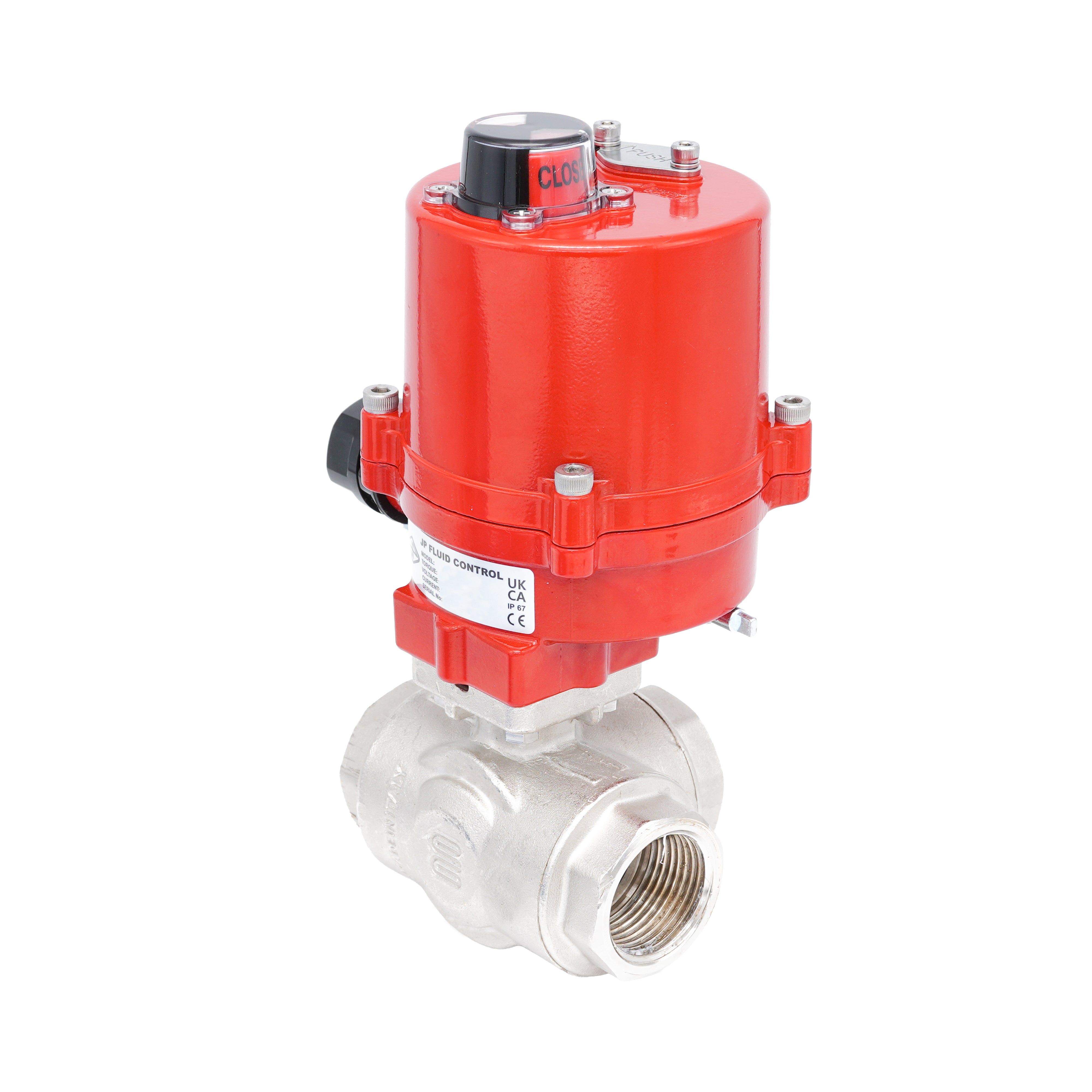

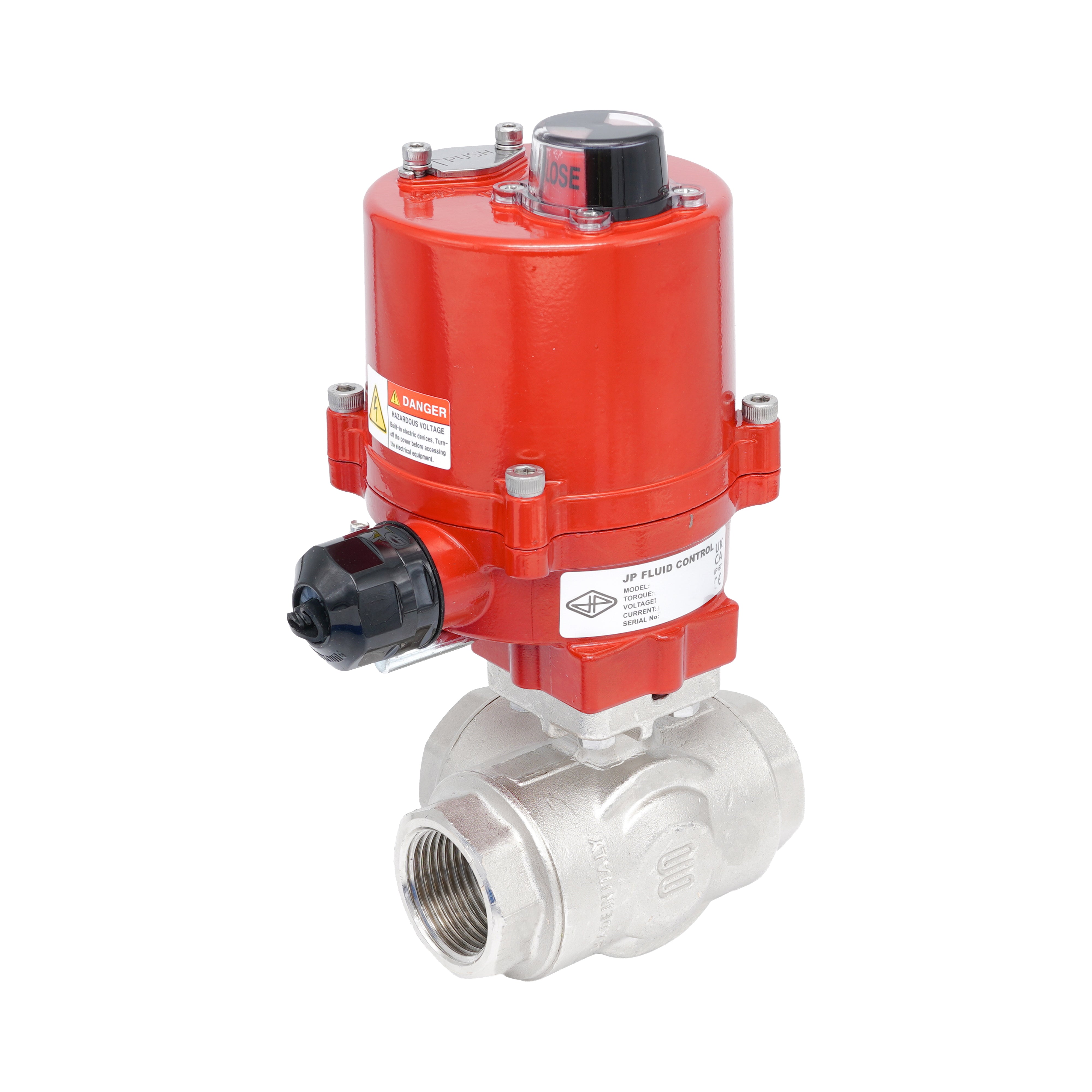

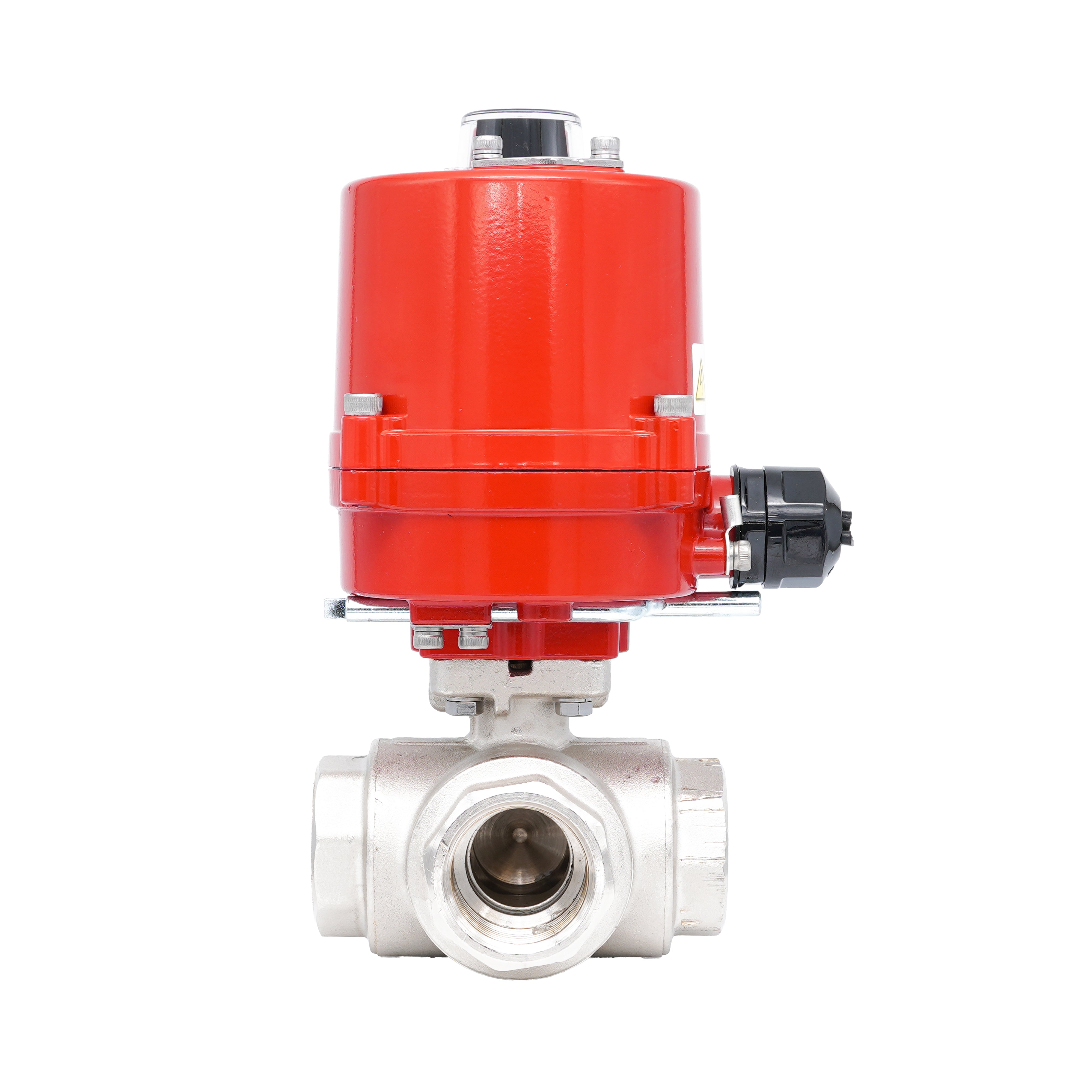

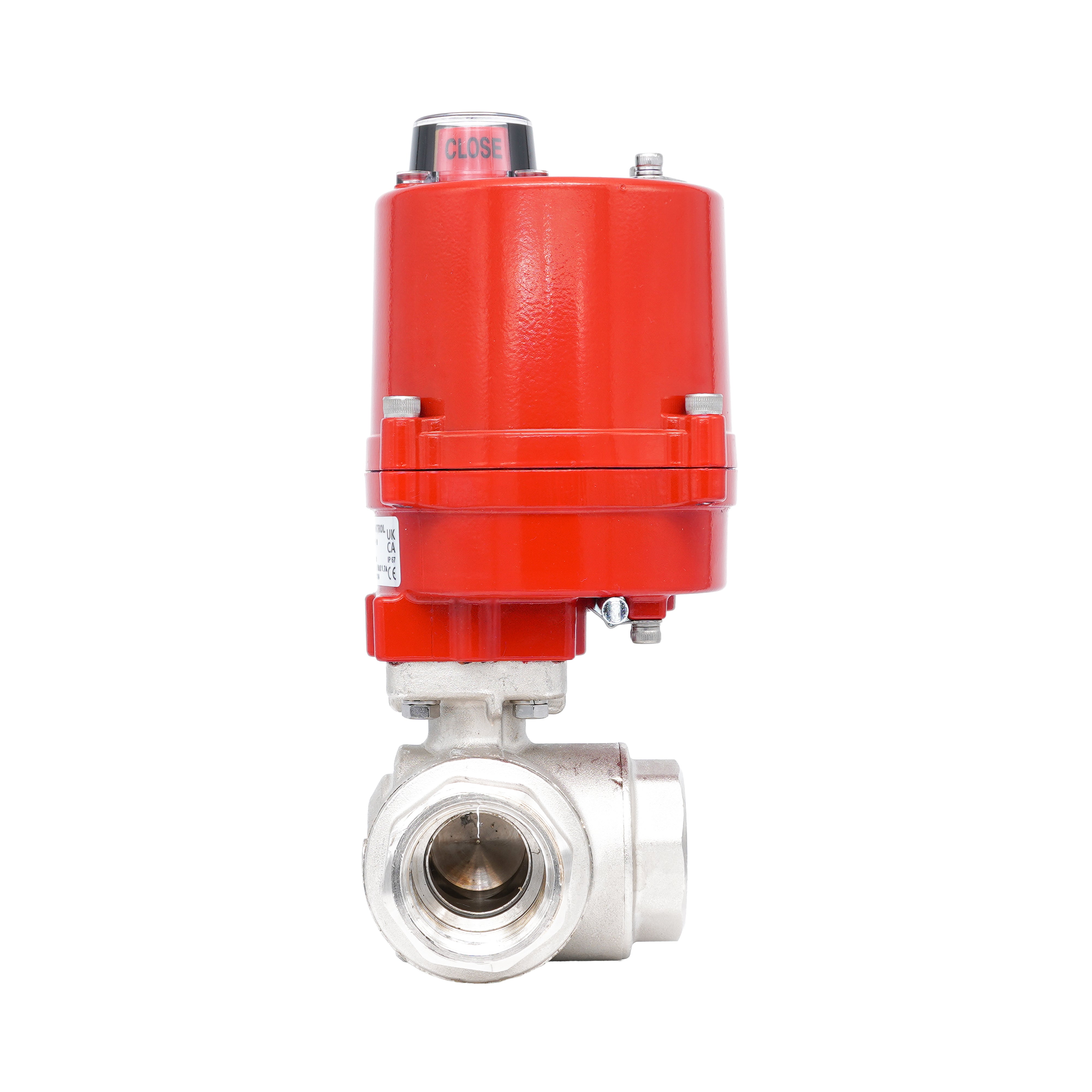

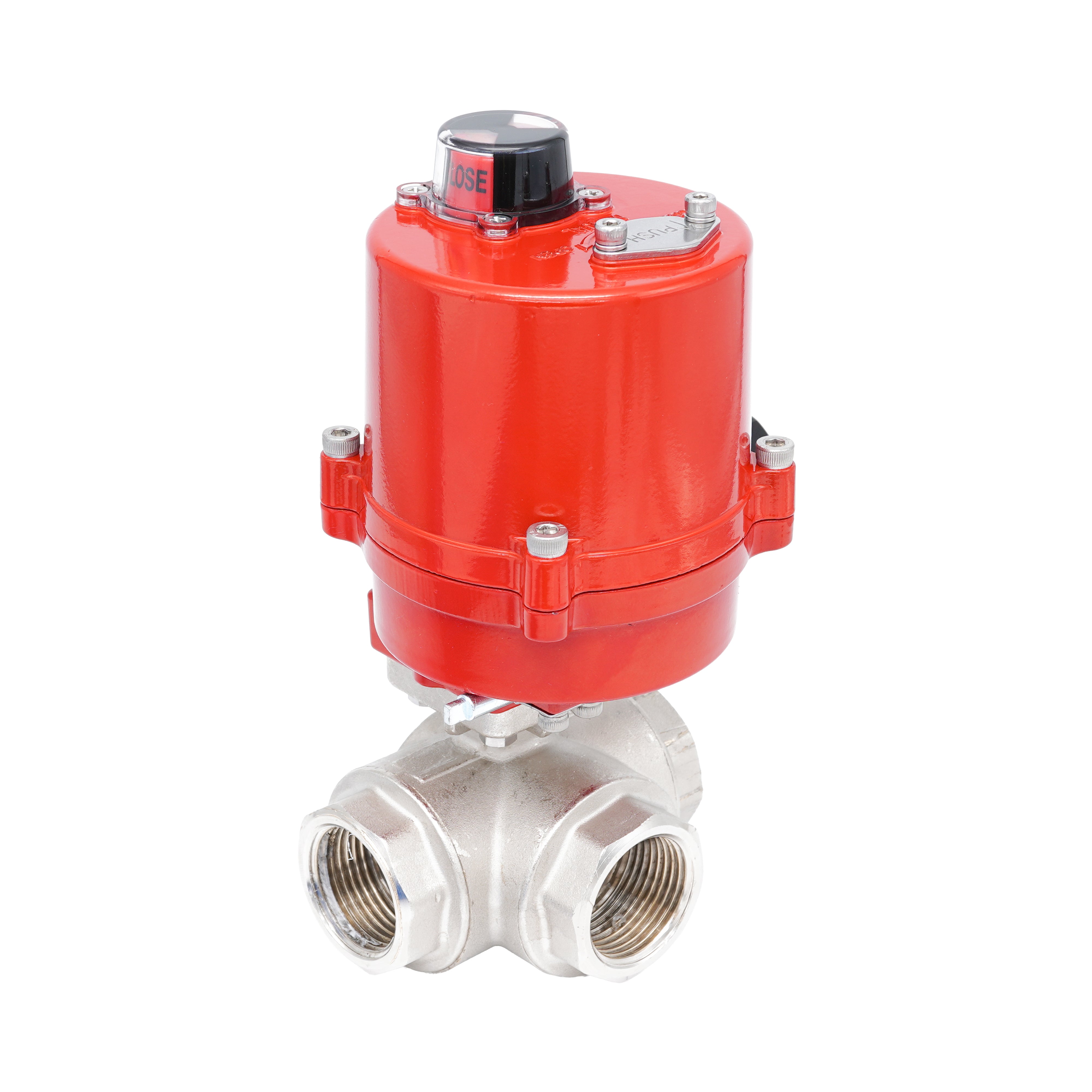

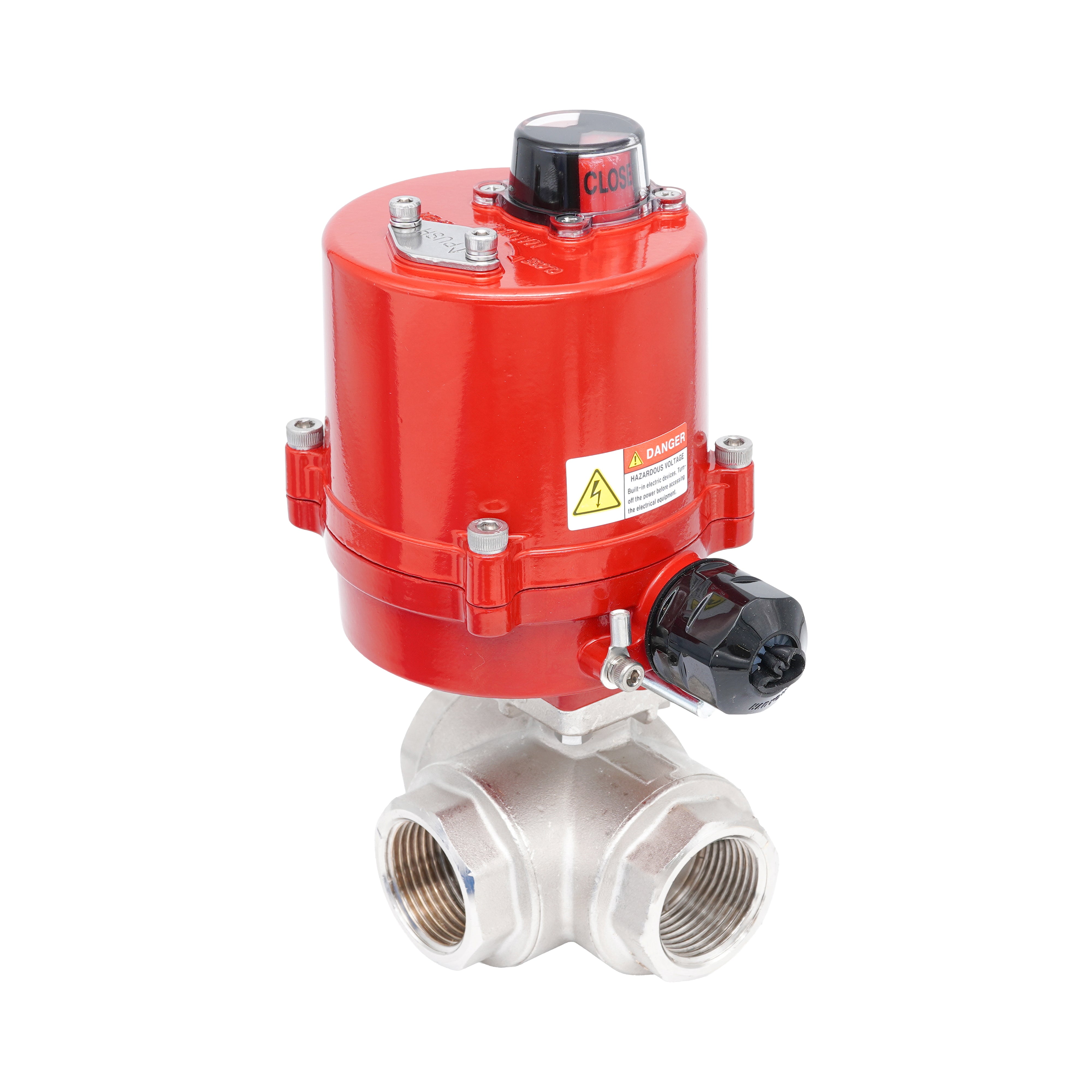

Rp 1/4" L-Bore 3-Way Electric Brass Ball Valve 24 V AC/DC
- Regular price
- $365.63 USD
We sell only to registered businesses
Description
This Rp 1/4" BSP female 3-way L-bore electric brass ball valve operates at 24 V AC/DC, switching between two flow configurations in 8 seconds. The L-bore ball has two positions - switch flow from the inlet to one of two alternative outlet lines. The actuator is rated IP67, making it suitable for outdoor, wet, and washdown environments. Ambient operating temperature range is -10 to 50 °C.
Open and close limit switches provide end position feedback, confirming the valve state to your control system. A manual override allows the valve to be operated by hand without electrical power - useful during commissioning or power failure.
PTFE ball seal and stem seal make it suitable for water, compressed air, oils, fuels, solvents, alcohols, lubricants, and gas. Avoid use with strong acids, ammonia, or seawater. Rated to 40 bar at 20 °C, media temperature range -20 to 130 °C (-4 to 266 °F).
Pros:
- PTFE ball seal and stem seal - suitable for wide range of media.
- IP67 rated - suitable for outdoor, wet, and washdown environments.
- Switches in 8 s - fast flow diversion between two lines.
- End position feedback - open/close limit switch for control system integration.
- Manual override - operable by hand without electrical power.
Cons:
- Brass not suitable for strong acids, ammonia, or seawater - check stainless steel variants.
- Actuator ambient temperature limited to 50 °C - check pneumatic actuator variants.
