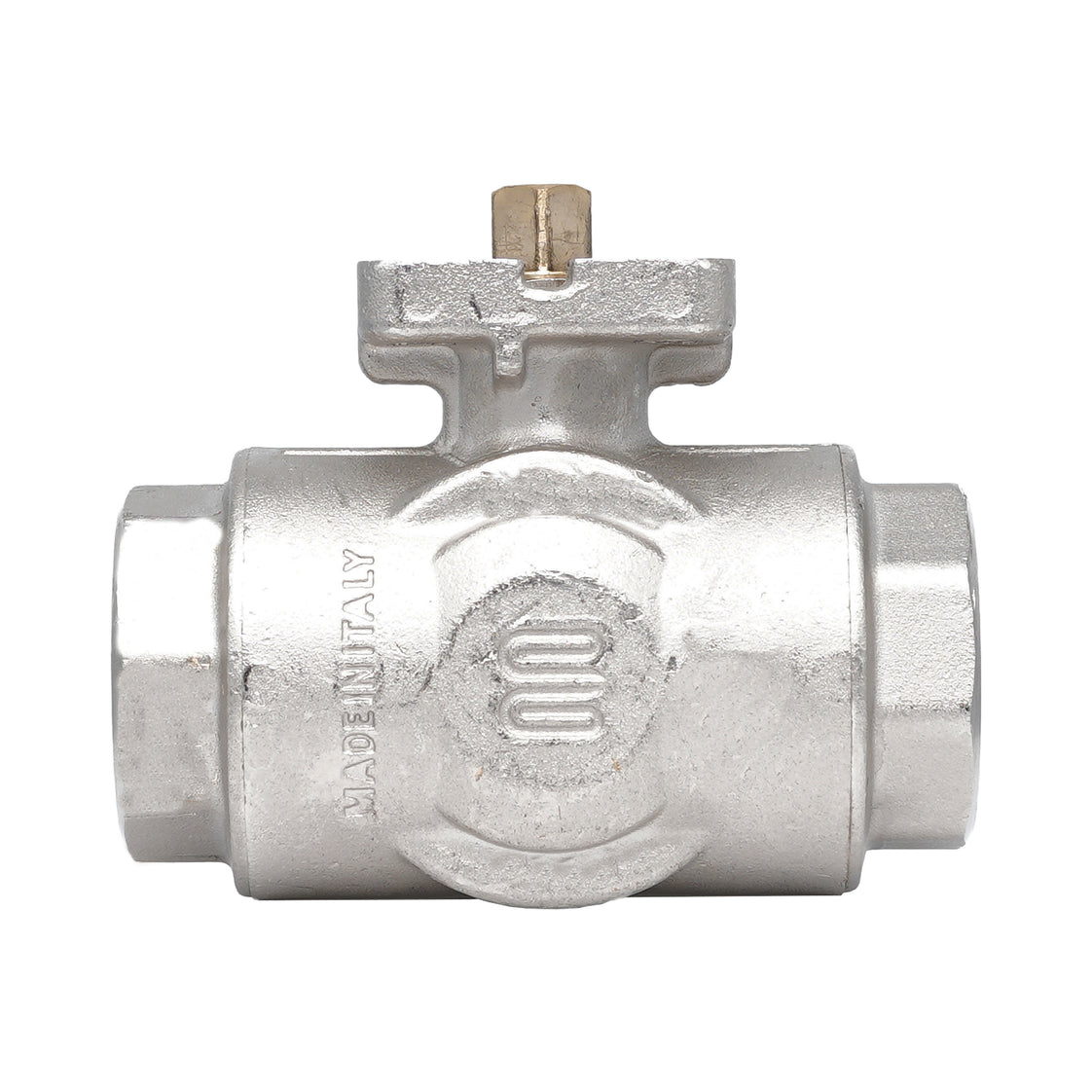

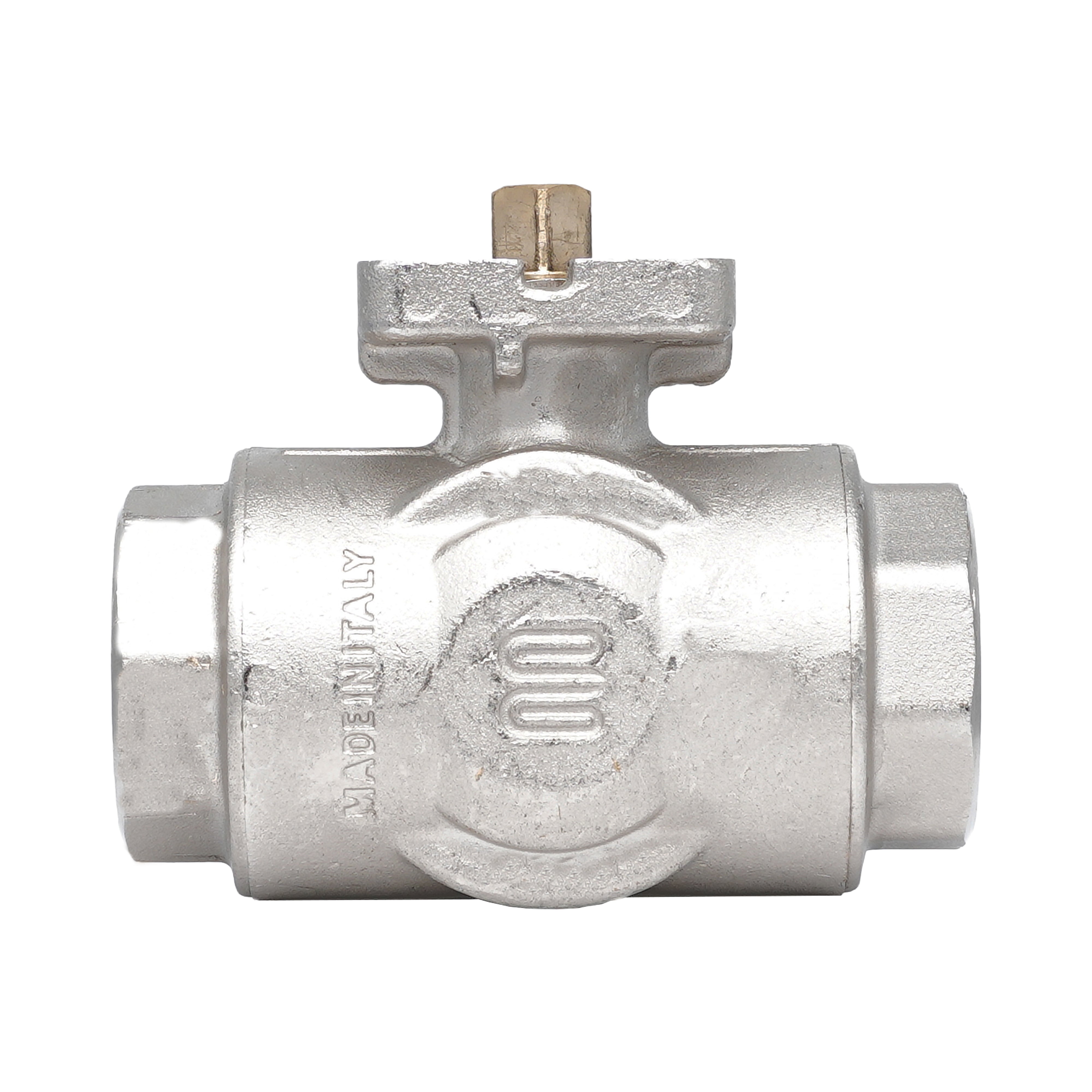

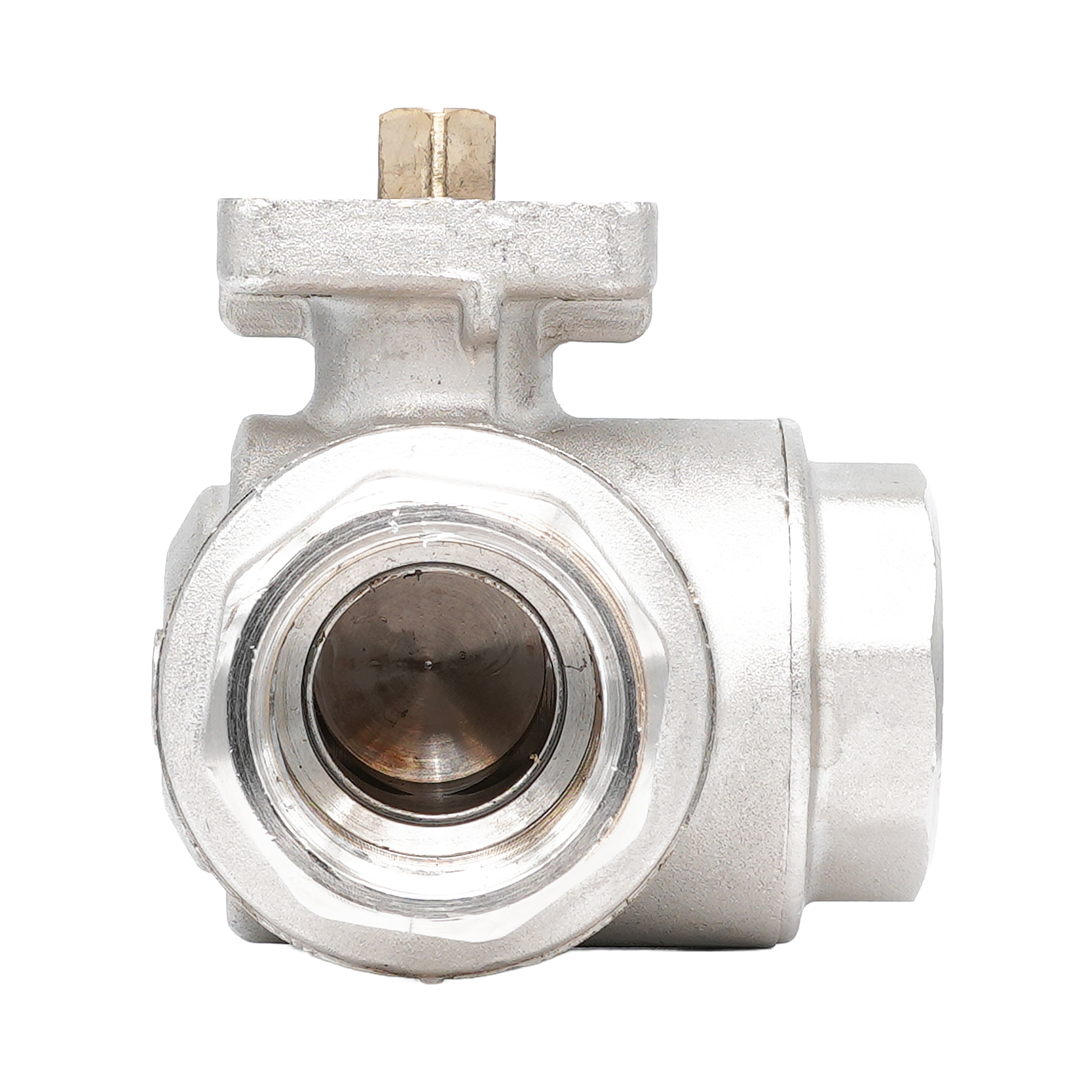

Rp 1/4" 3-way T-Bore Brass Ball Valve ISO-Top F03 PN40
Image may vary slightly
See specifications for accurate information.
Reference:
V3M2H
Brand:
TamesonPRO
Mfr. Part:
1142-014-T
Rp 1/4" BSP female 3-way T-bore brass ball valve (mixing, splitting, and diverting), ISO 5211 F03 mounting flange. PTFE ball seal and stem seal - suitable for water, compressed air, oils, fuels, solvents, alcohols, lubricants, and gas. Rated to 40 bar at 20 °C, temperature range -20 to 130 °C (-4 to 266 °F).
- Regular price
- $77.30 USD
excl VAT
We sell only to registered businesses
Description
Specifications
Downloads
Related products
Description

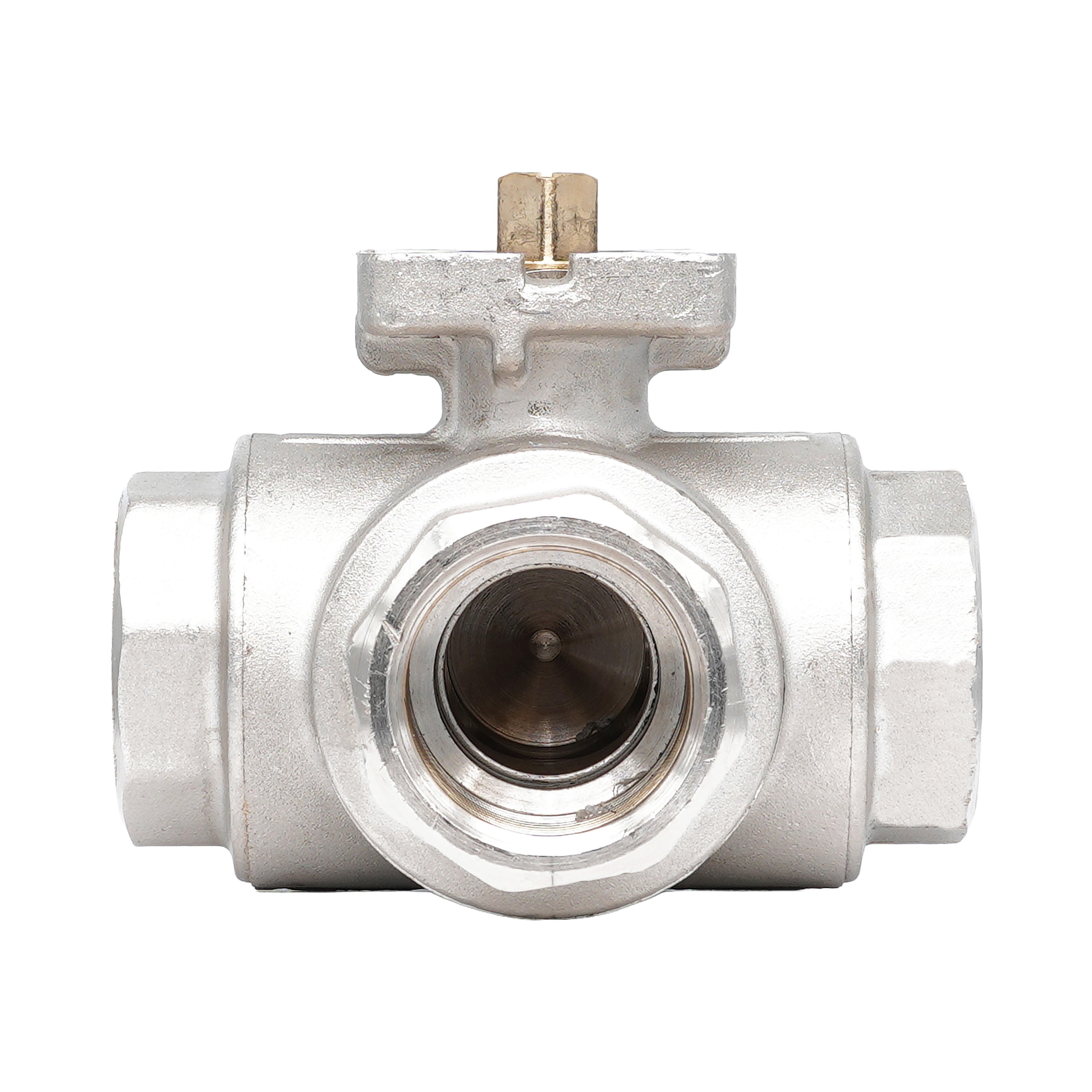

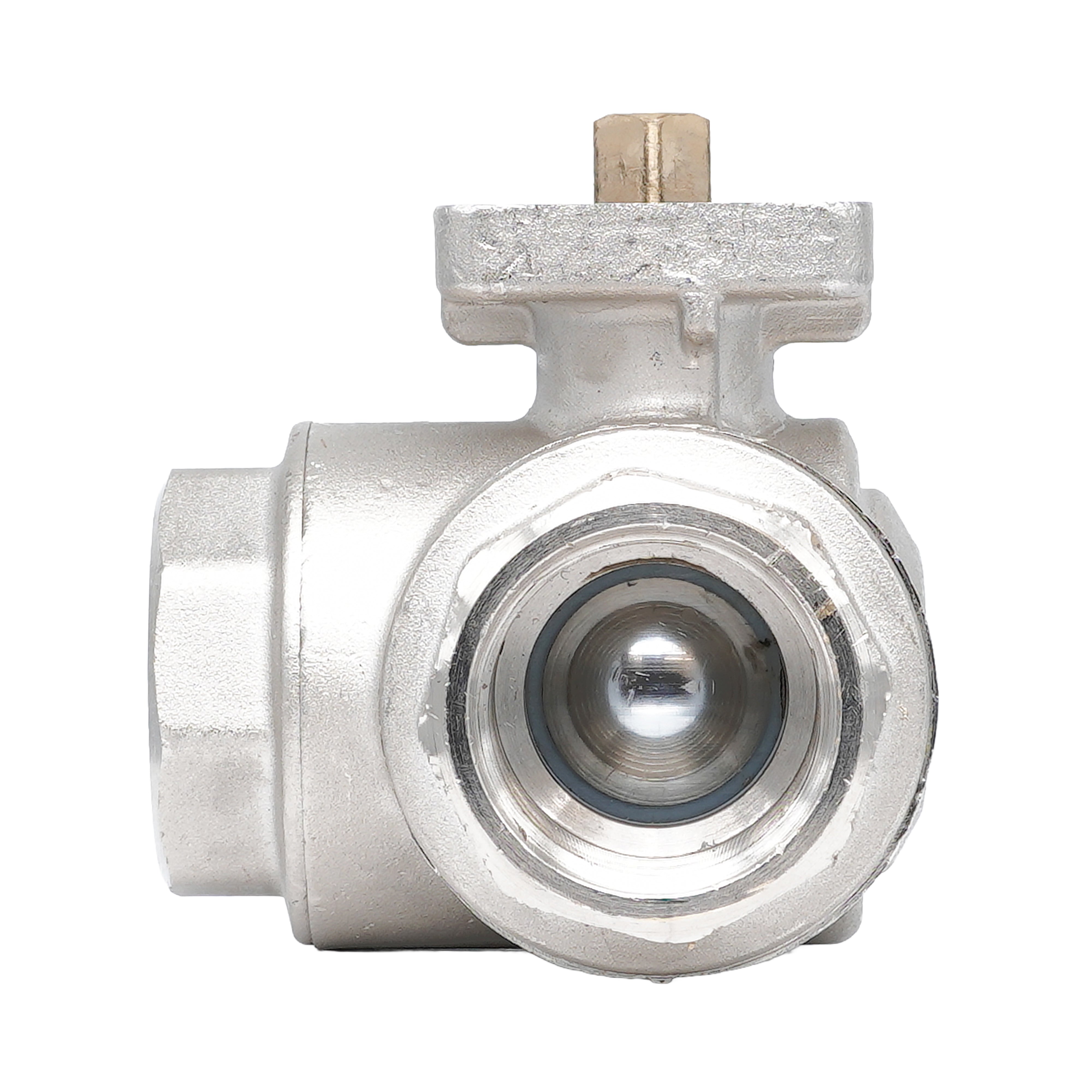

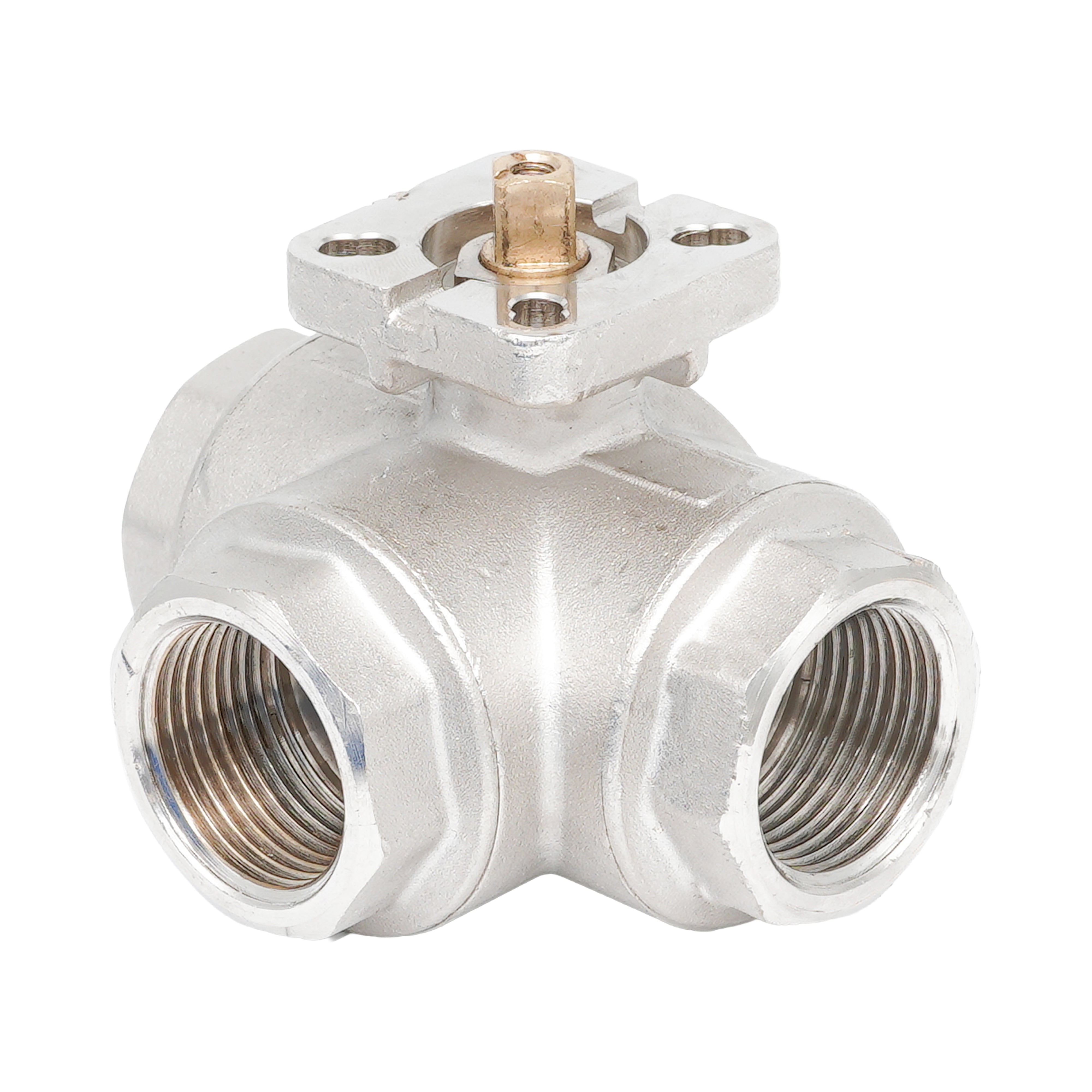

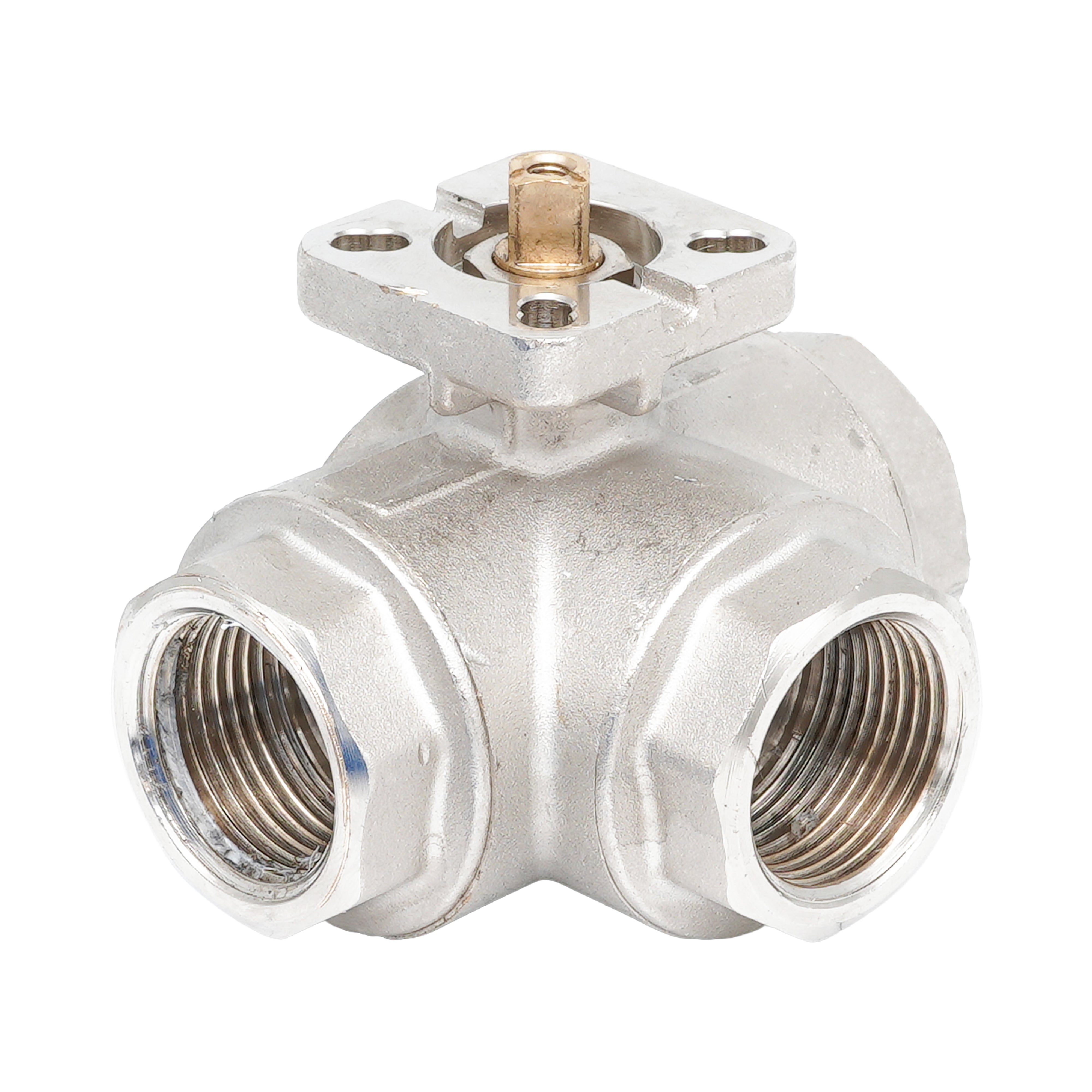

This Rp 1/4" BSP female 3-way T-bore brass ball valve controls flow direction across three ports. The T-bore ball has four positions - mix or split all three ports at once, or divert between any two.
The ISO 5211 F03 mounting flange is a standardised interface for direct mounting of any compatible electric or pneumatic actuator. The break torque at maximum pressure is 6 Nm - use this value when sizing a compatible actuator.
PTFE ball seal and stem seal make it suitable for water, compressed air, oils, fuels, solvents, alcohols, lubricants, and gas. Avoid use with strong acids, ammonia, or seawater. Rated to 40 bar at 20 °C, working temperature range -20 to 130 °C (-4 to 266 °F).
Pros:
- ISO 5211 F03 flange - direct actuator mounting, no bracket needed.
- PTFE ball seal and stem seal - suitable for wide range of media.
- Four-position T-bore - mix, split, or divert in a single valve.
Cons:
- Brass not suitable for strong acids, ammonia, or seawater - check stainless steel variants.
- No handle is supplied with the valve.
