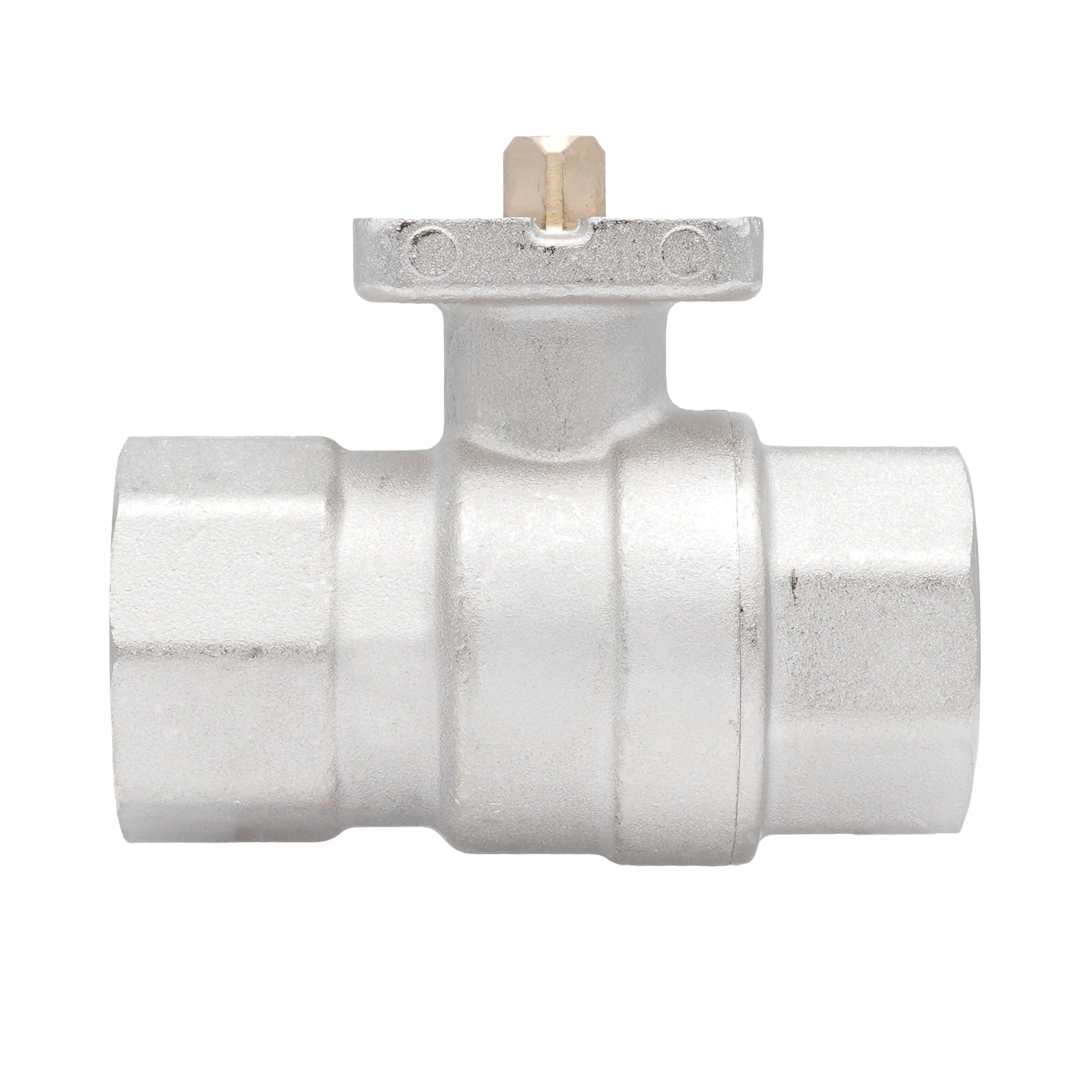

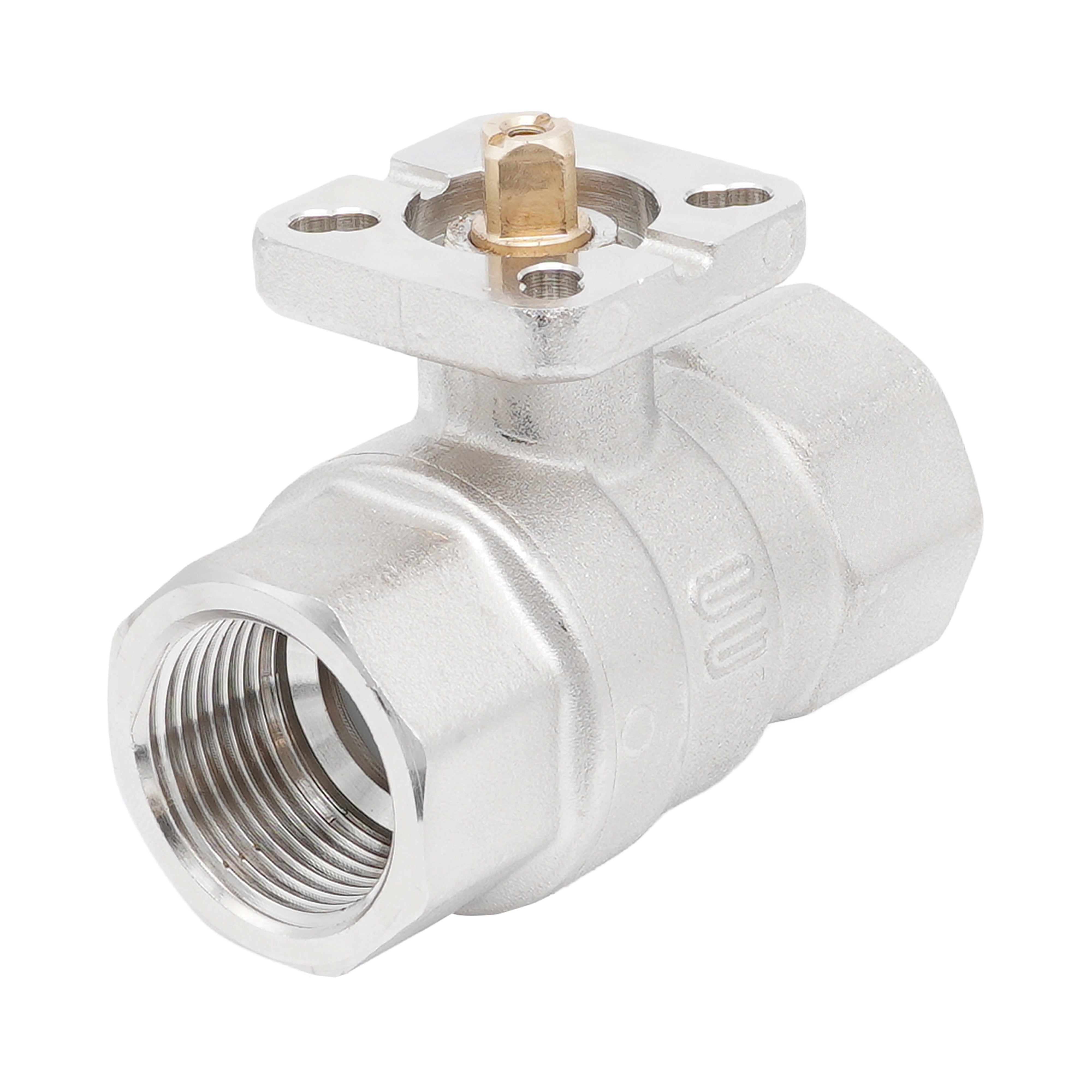

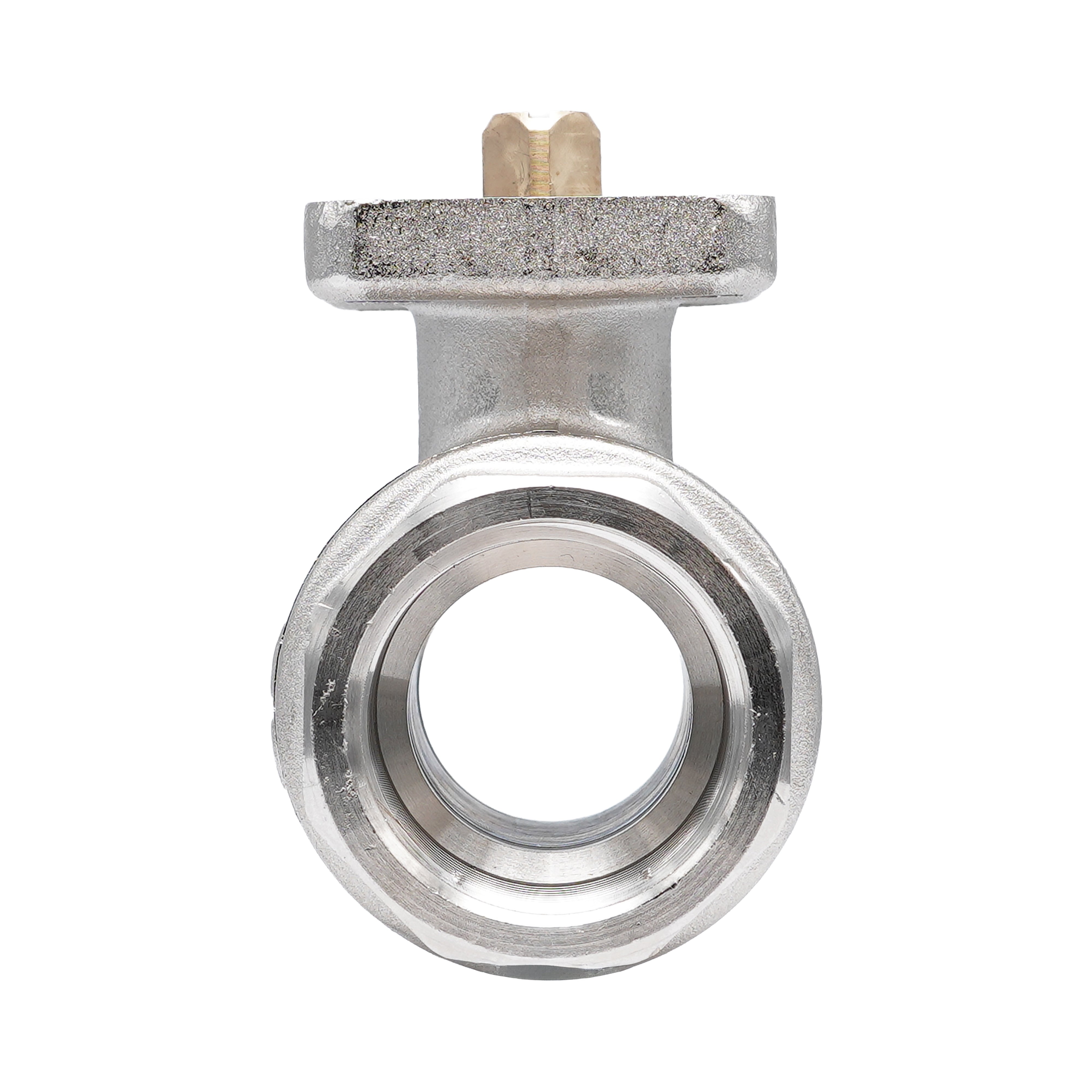

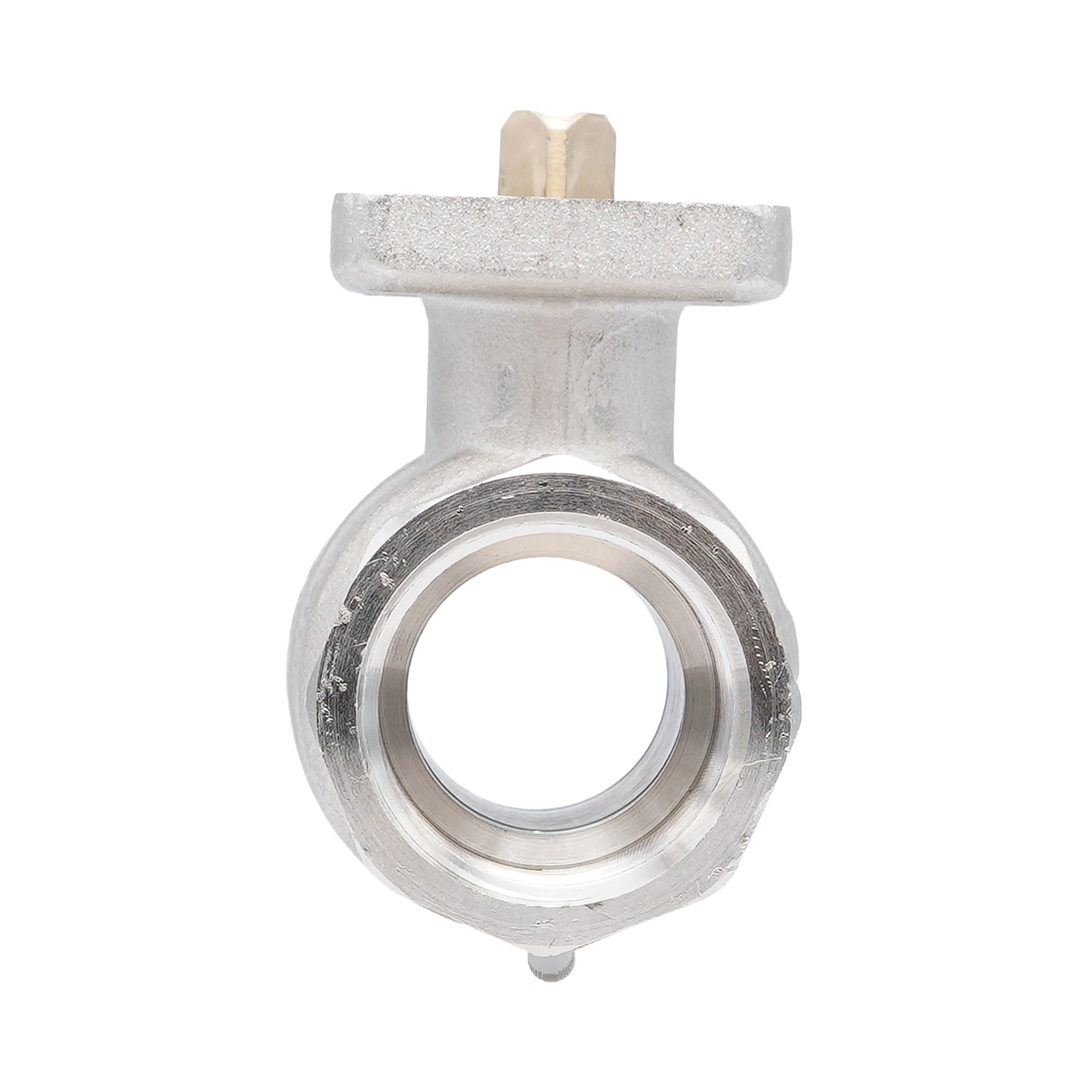

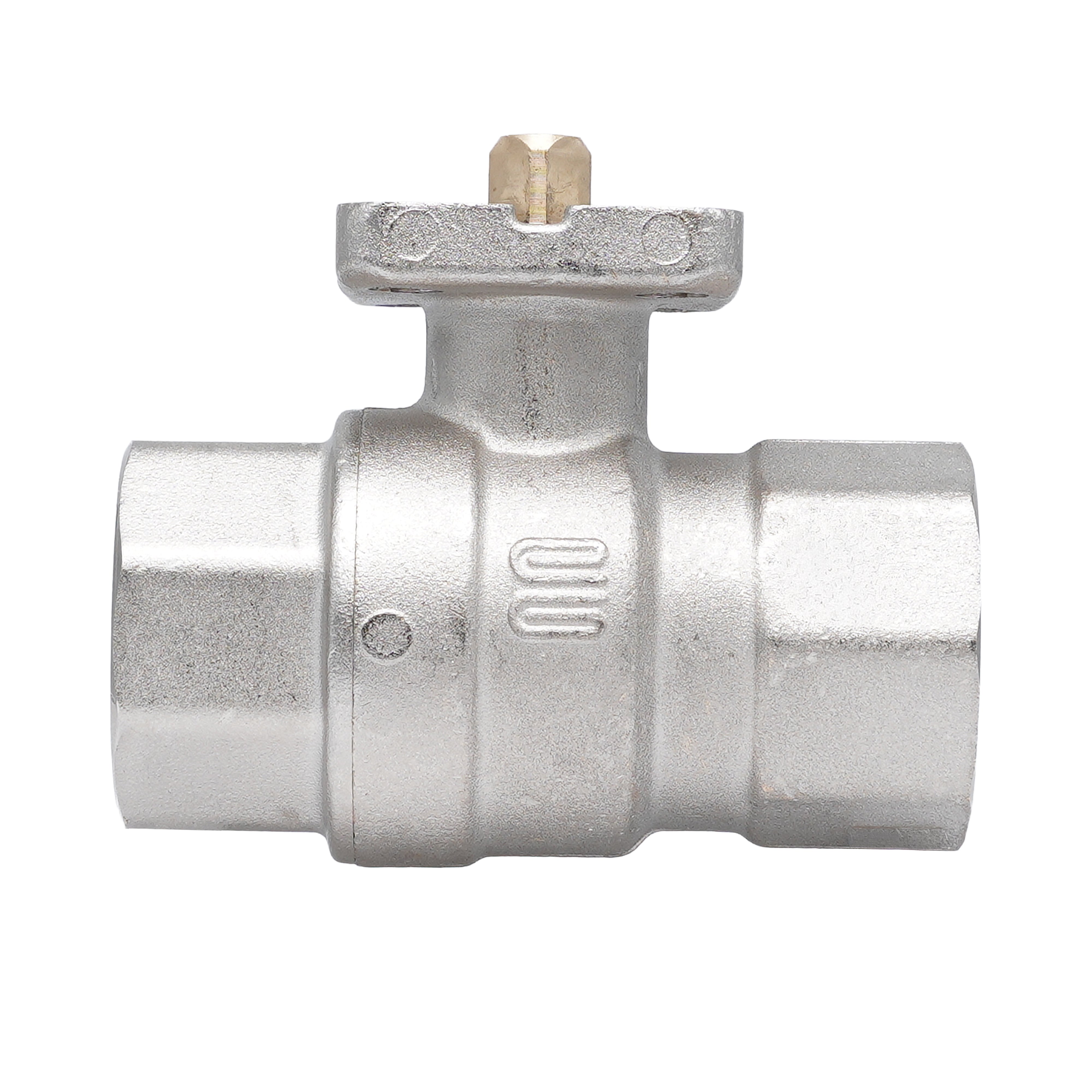

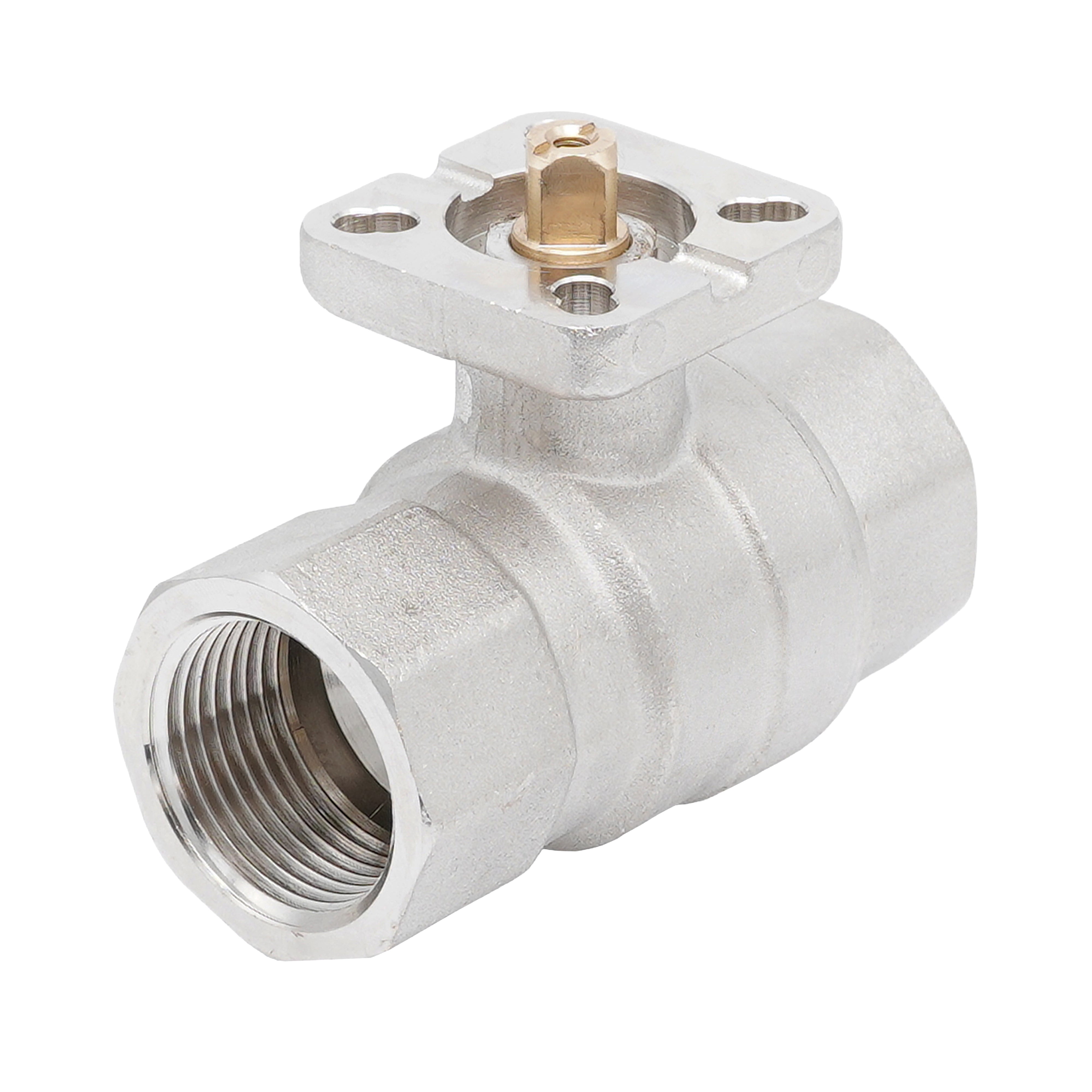

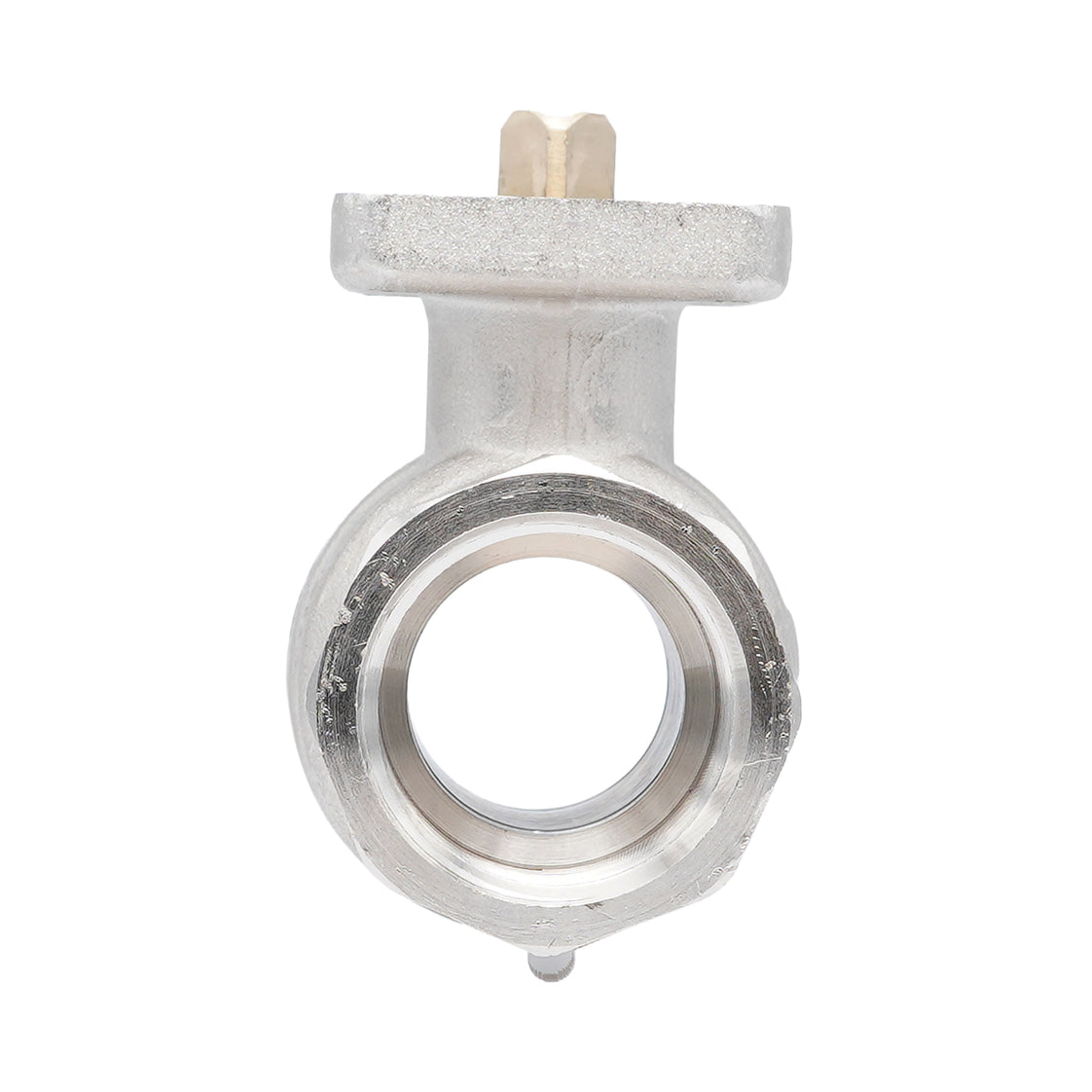

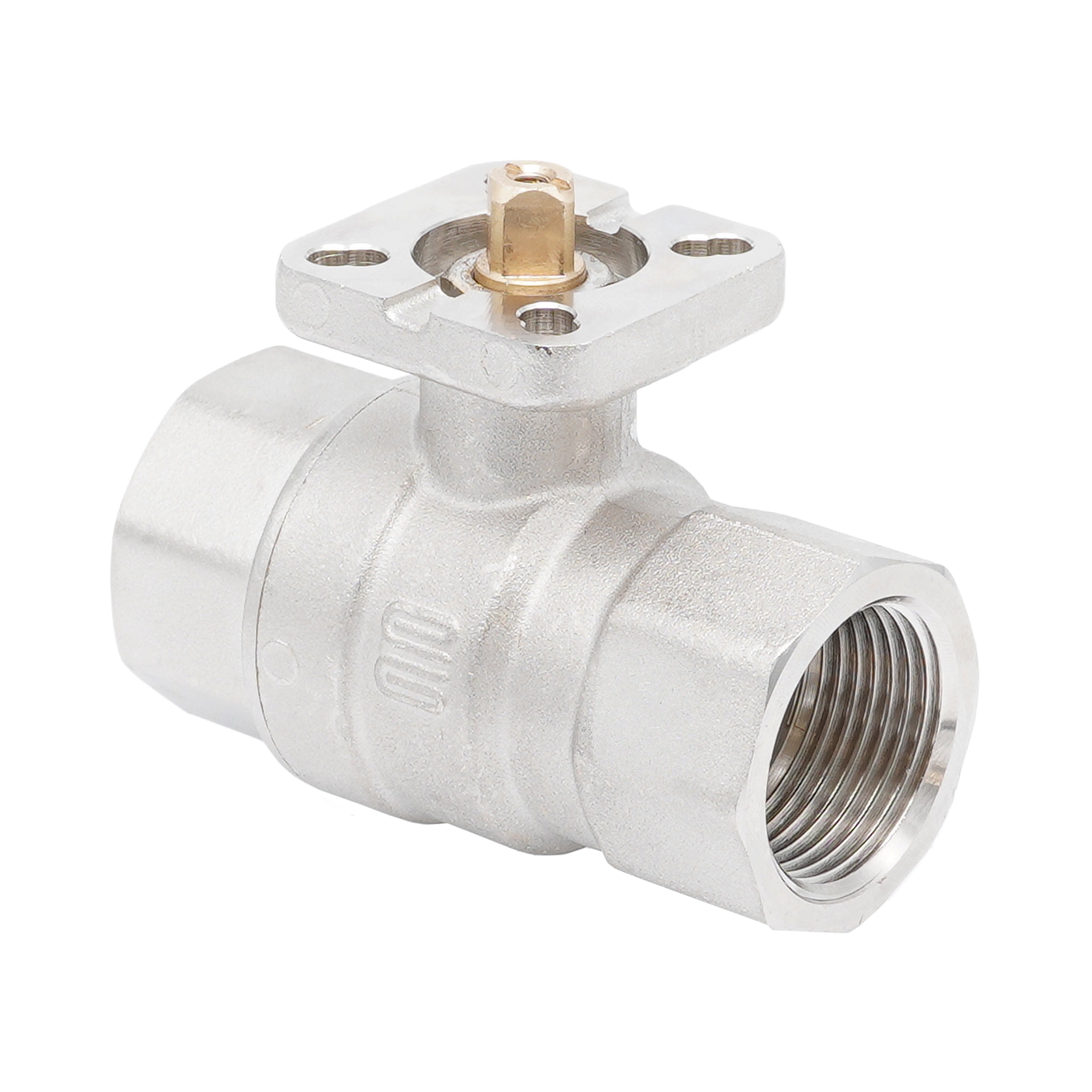

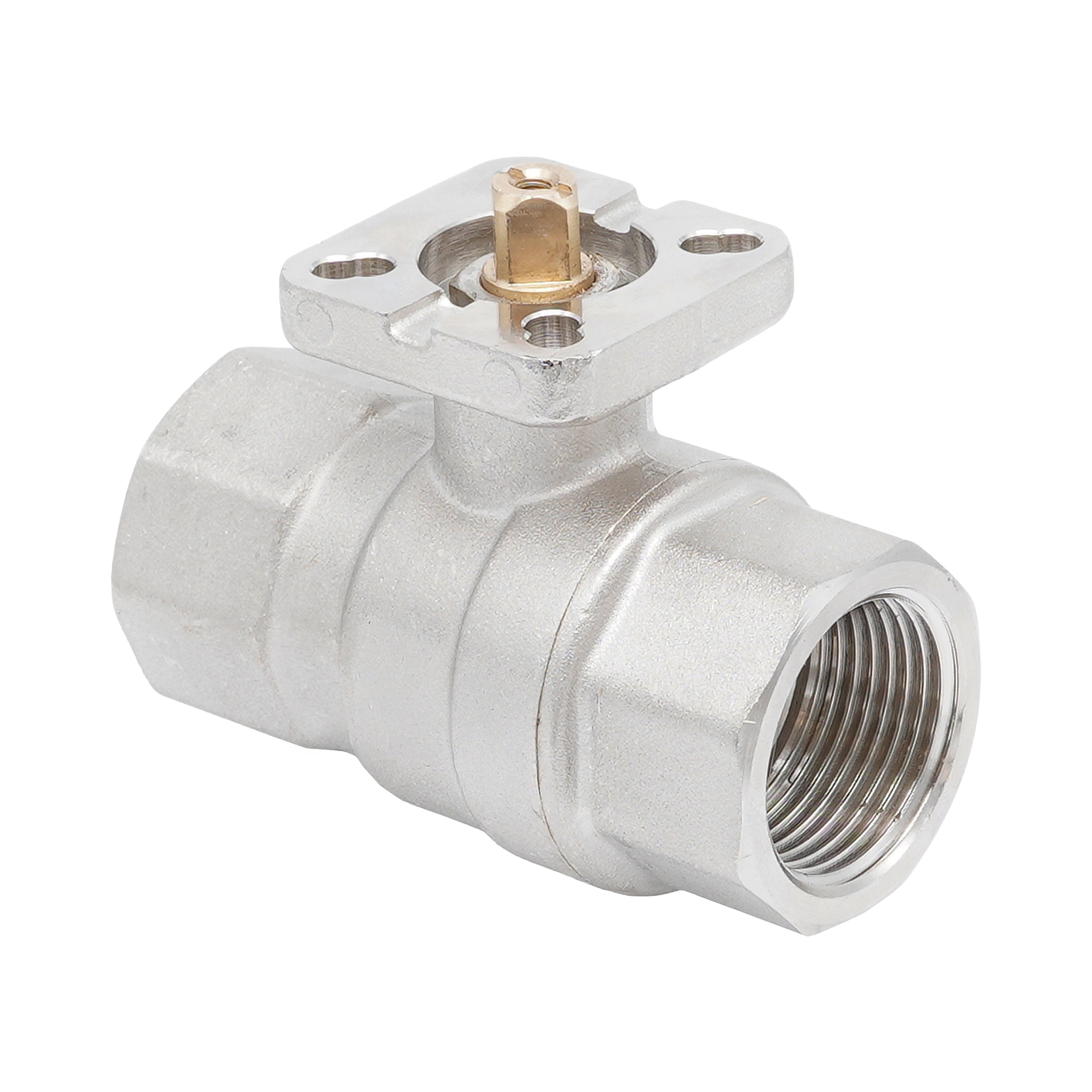

Rp 1-1/2" 2-way Brass Ball Valve ISO-Top F04/F05 PN25
- Regular price
- $127.24 USD
We sell only to registered businesses
Description
This Rp 1 1/2" BSP female 2-way brass ball valve has a full-bore design. A Kv of 100 m³/h, which means the valve passes 100 m³/h of water at 1 bar pressure drop.
The ISO 5211 F04/F05 mounting flange is a standardised interface for direct mounting of any compatible electric or pneumatic actuator. A quarter-turn of the actuator fully opens or closes the valve. The break torque at maximum pressure is 13 Nm - use this value when sizing a compatible actuator.
PTFE ball seal and stem seal make it suitable for water, compressed air, oils, fuels, solvents, alcohols, lubricants, and gas. Avoid use with strong acids, ammonia, or seawater. Rated to 25 bar at 20 °C, working temperature range -20 to 130 °C (-4 to 266 °F).
Pros:
- Full bore - low flow resistance.
- ISO 5211 F04/F05 flange - direct actuator mounting.
- PTFE ball and stem seal - suitable for wide range of media.
Cons:
- Brass not suitable for strong acids, ammonia, or seawater - check stainless steel variants.
- The valve is supplied without the handle.
