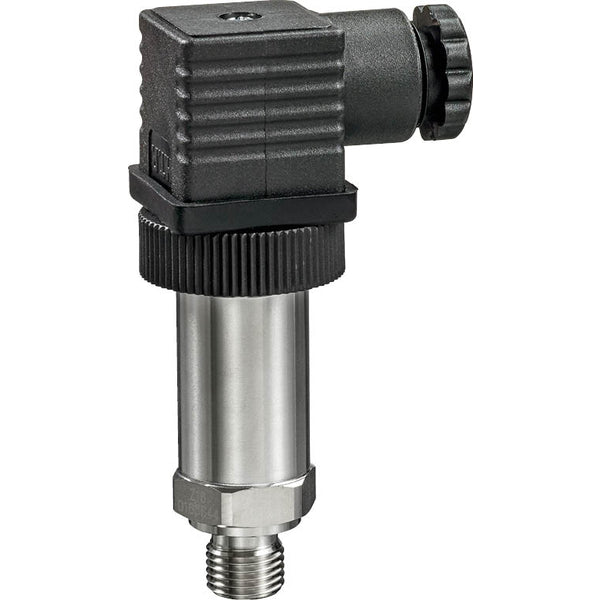

Belimo Pressure Sensor 0..6 bar G1/4'' 0.5% 4-20mA 22WP-135
This pressure transducer converts pressure from 0 to 6 bar (0 to 87 psi) into a 4-20 mA output signal. The non-linearity is 0.5% across the span. The supply voltage is 24 V AC/DC. The pressure transducer is made from stainless steel and has a FKM sealings. The temperature range is from -40 to 105 °C (-40 to 221 °F).
- Regular price
- $144.64 USD
Description
This pressure transducer converts pressure into an electric output signal. The measuring pressure range is from 0 to 6 bar (0 to 87 psi) with a non-linearity of 0.5% of the span. Non-linearity is defined as the greatest deviation from a straight reference line (BFSL - Best Fit Straight Line). The pressure transducer requires a 24 V AC/DC power supply and generates an output signal of 4-20 mA. The same wire is used to send a signal to the receiver and to power the transmitter (DIN-A connector). The housing and wetted parts are made from stainless steel and the seals are made from a FKM. The temperature range is from -40 to 105 °C (-40 to 221 °F). Consult our chemical resistance chart to verify the compatibility of the sensor materials with your media. The connection port has a size of G 1/4 inch with male threads. The pressure transducer has an IP65 rating.
Pros:
- Housing and wetted parts are made from stainless steel
