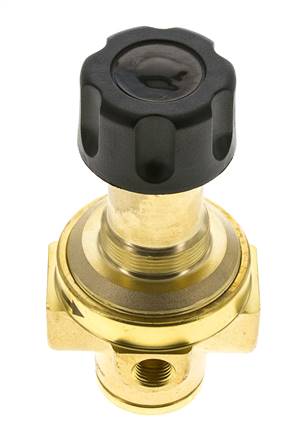

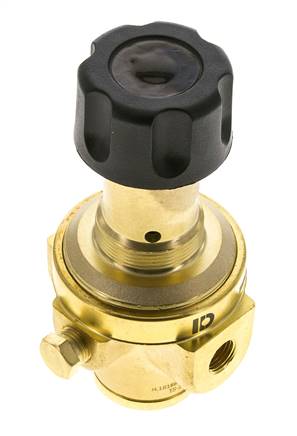

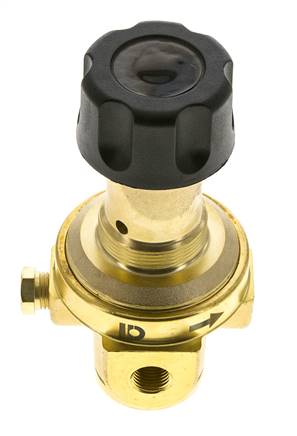

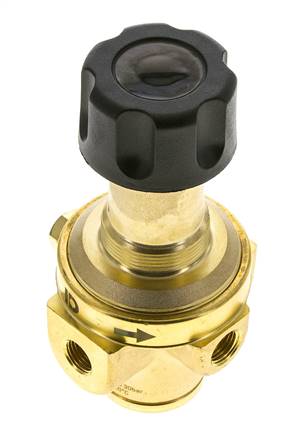

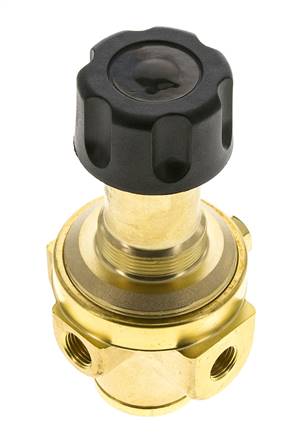

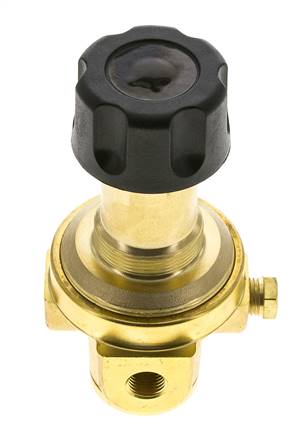

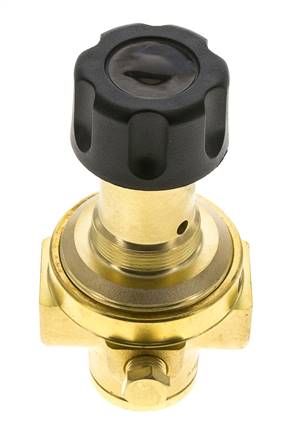

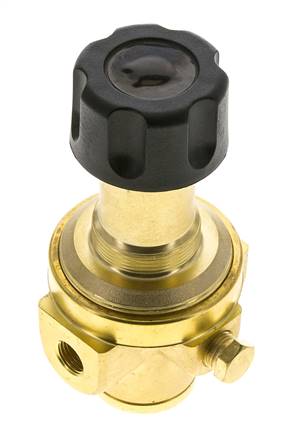

Pressure Regulator G1/4'' 490 l/min 0.1-1.5bar/1-22psi Brass Gases Liquids
This G 1/4 inch pneumatic pressure regulator controls the output pressure to a set, stable level even when the input pressure varies. The adjustable output pressure range is 0.1 to 1.5 bar (1 to 22 psi). The max flow rate is 490 l/min. Suitable for a 30.0 bar (435 psi) max input and temperatures between -20 and 80 °C (-4 and 176 °F).
- Regular price
- $198.30 USD
Description
The pressure regulator adjusts the pressure continuously to a stable level, even when the input pressure varies. The level can be adjusted between 0.1 to 1.5 bar (1 to 22 psi). This model has G 1/4 inch ports. The maximum flow rate is 490 l/min. It is recommended to select a filter with a maximum flow rate 1.5 to 2 times higher than the maximum flow rate in your system to avoid excessive pressure drop. Additionally, keep in mind that lower input pressures may reduce the achievable maximum flow rate, so ensure your system pressure is sufficient for optimal performance. Note that the pressure regulator controls the output pressure, not the flow rate. The output pressure can be adjusted by pulling the hand wheel up and twisting.
The maximum input pressure is 30.0 bar (435 psi) and the temperature range is between -20 and 80 °C (-4 and 176 °F). The housing material is made out of brass. This pressure regulator is suitable for gases and liquids.
Mounting brackets need to be ordered separately.
