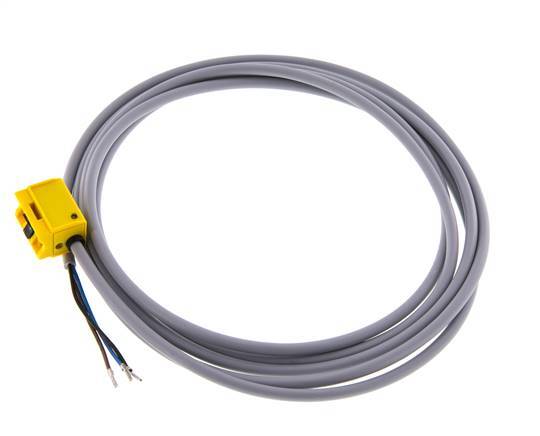

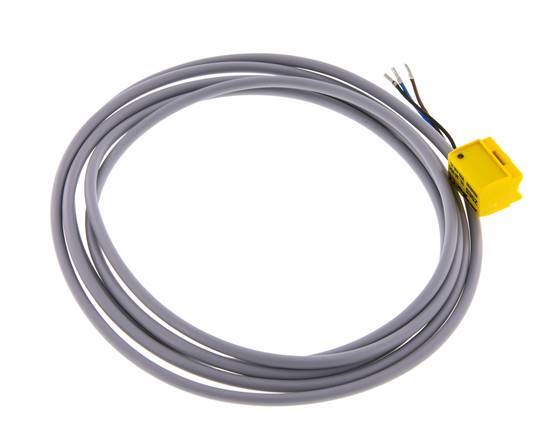

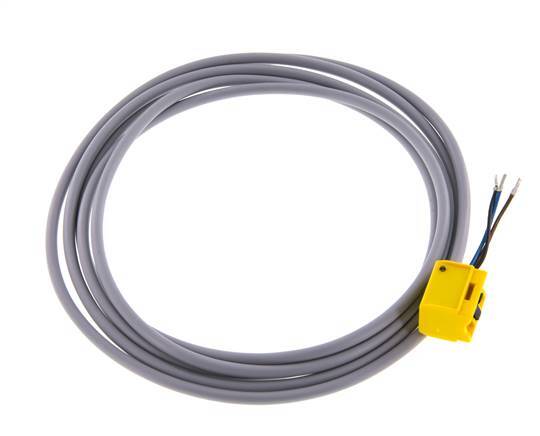

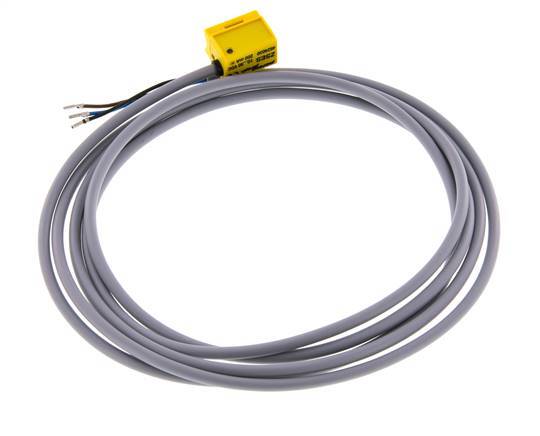

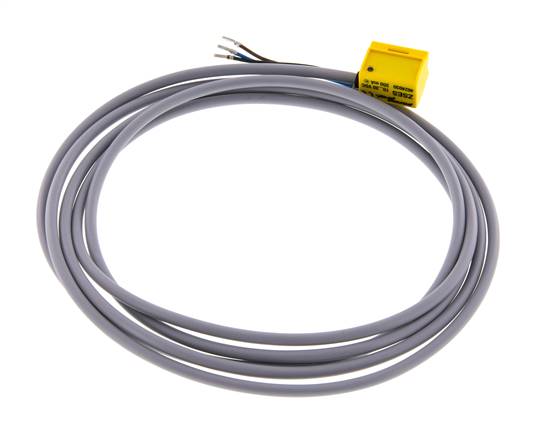

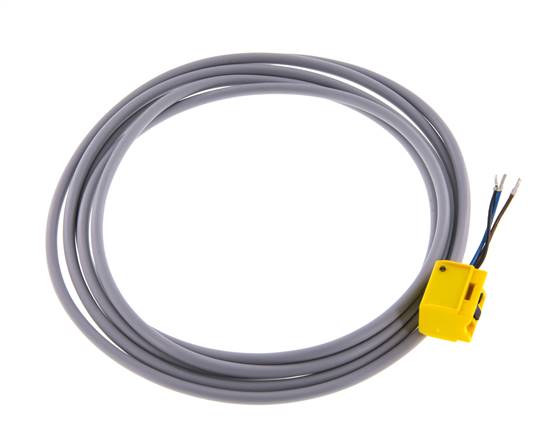

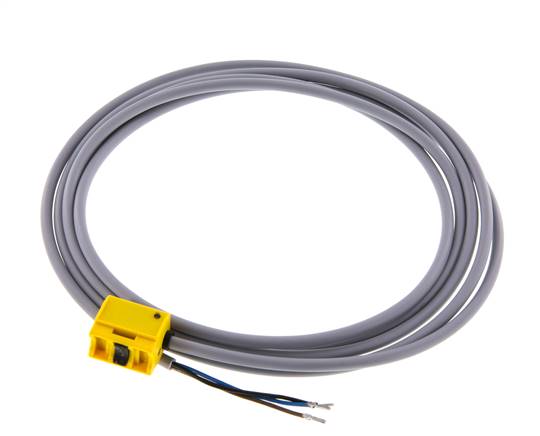

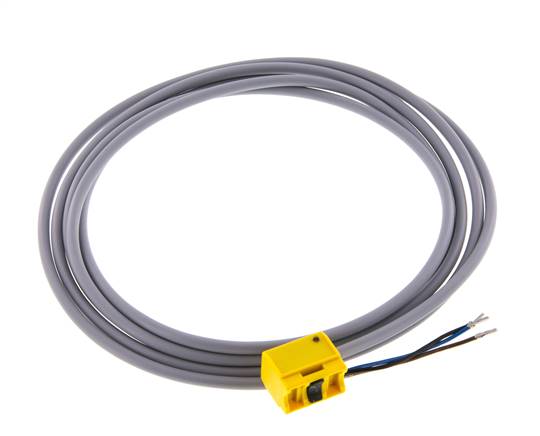

Position Sensor PNP 2m 10-30 V DC Mounting kit

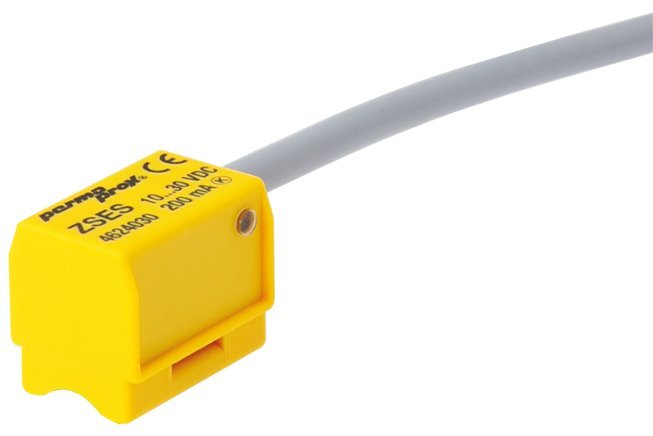

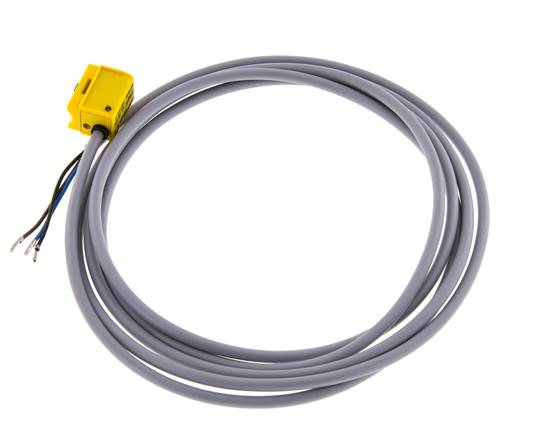

This pneumatic cylinder sensor offers position feedback to control systems in automated machinery and equipment. This reed switch, also called a magnetic proximity sensory, can reliably determine the proximity of a pneumatic cylinder piston due to an internal magnet on the piston. When the piston moves and the internal magnet passes the sensor, the output will switch "ON" to signal to the control system the status (position) of the cylinder. Depending on where the sensor is mounted, it can detect extension, retraction, or individual positions along the cylinder body. This sensor requires 10 to 30 V DC. This sensor features a 3 wire PNP output design with a 2 m cable for power wiring. An LED is available for troubleshooting and operation status indication. It is important to note that the maximum power input for this sensor is VA and should never be exceeded to prevent sensor damage. To reduce mounting space, this sensor has a compact design with a length of 20 mm and height of 16 mm. For convenience, this sensor will mount using the included mounting band around the cylinder body. This sensor has an IP67 rating, is suitable for a temperature range of -25 to 70 °C (-13 and 158 °F).
