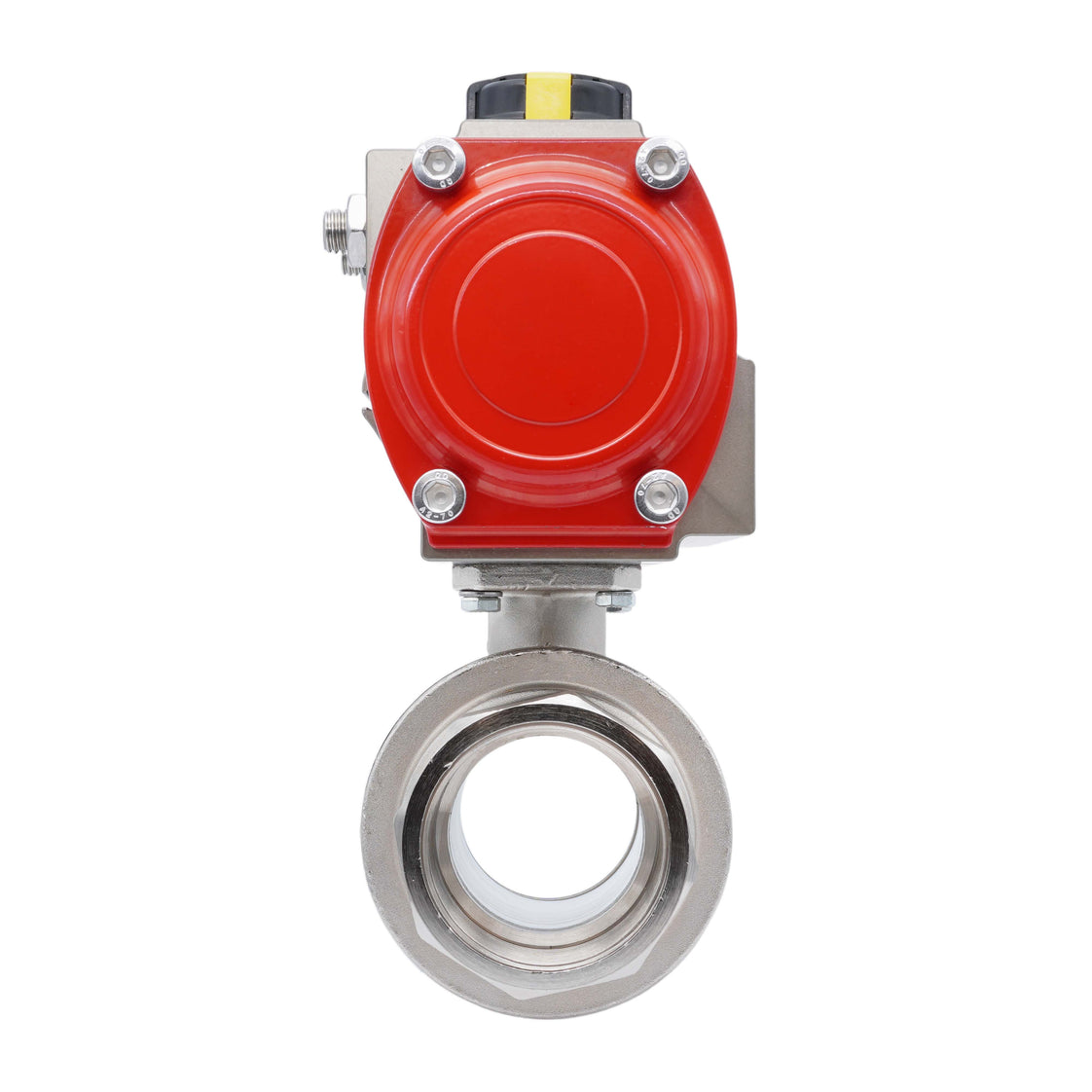

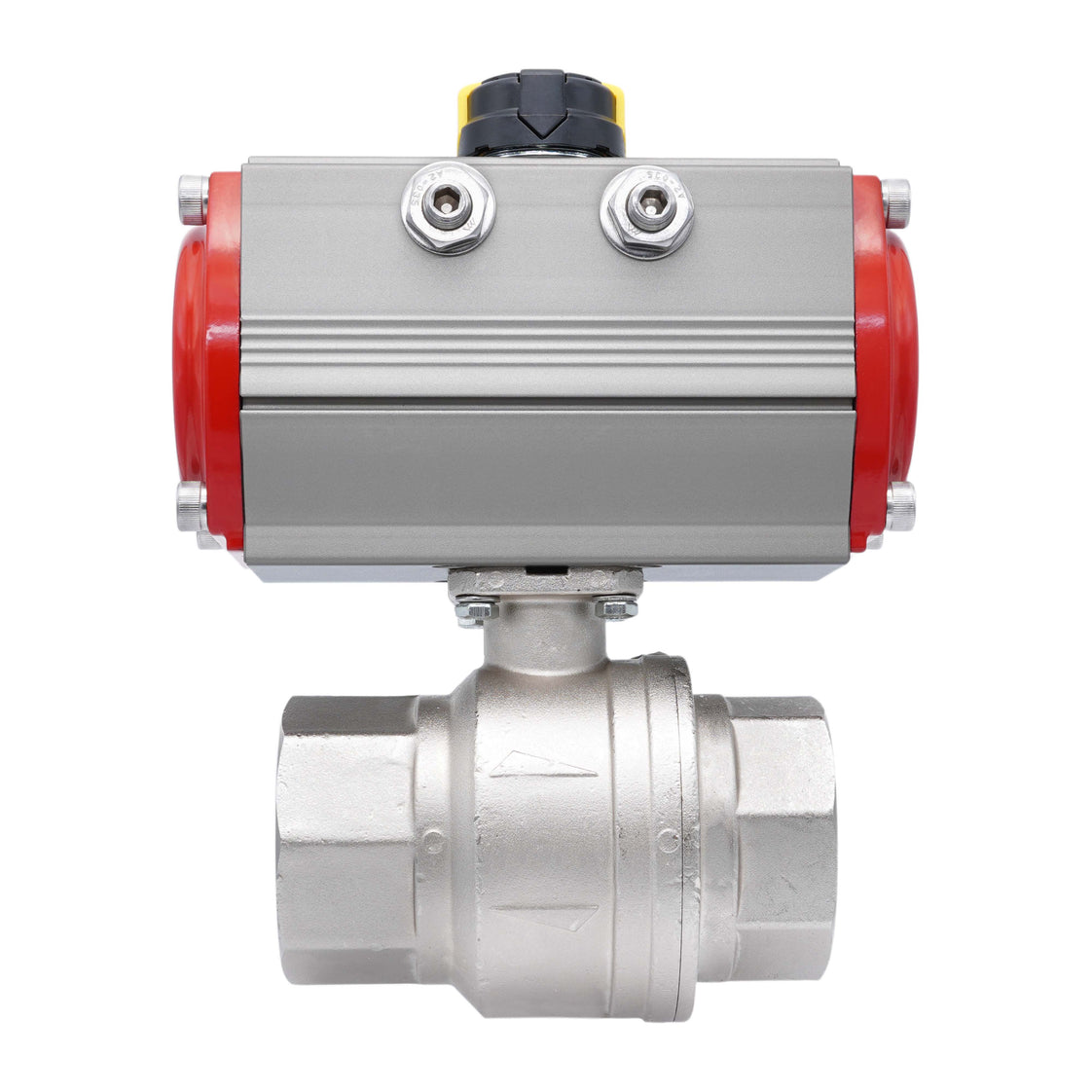

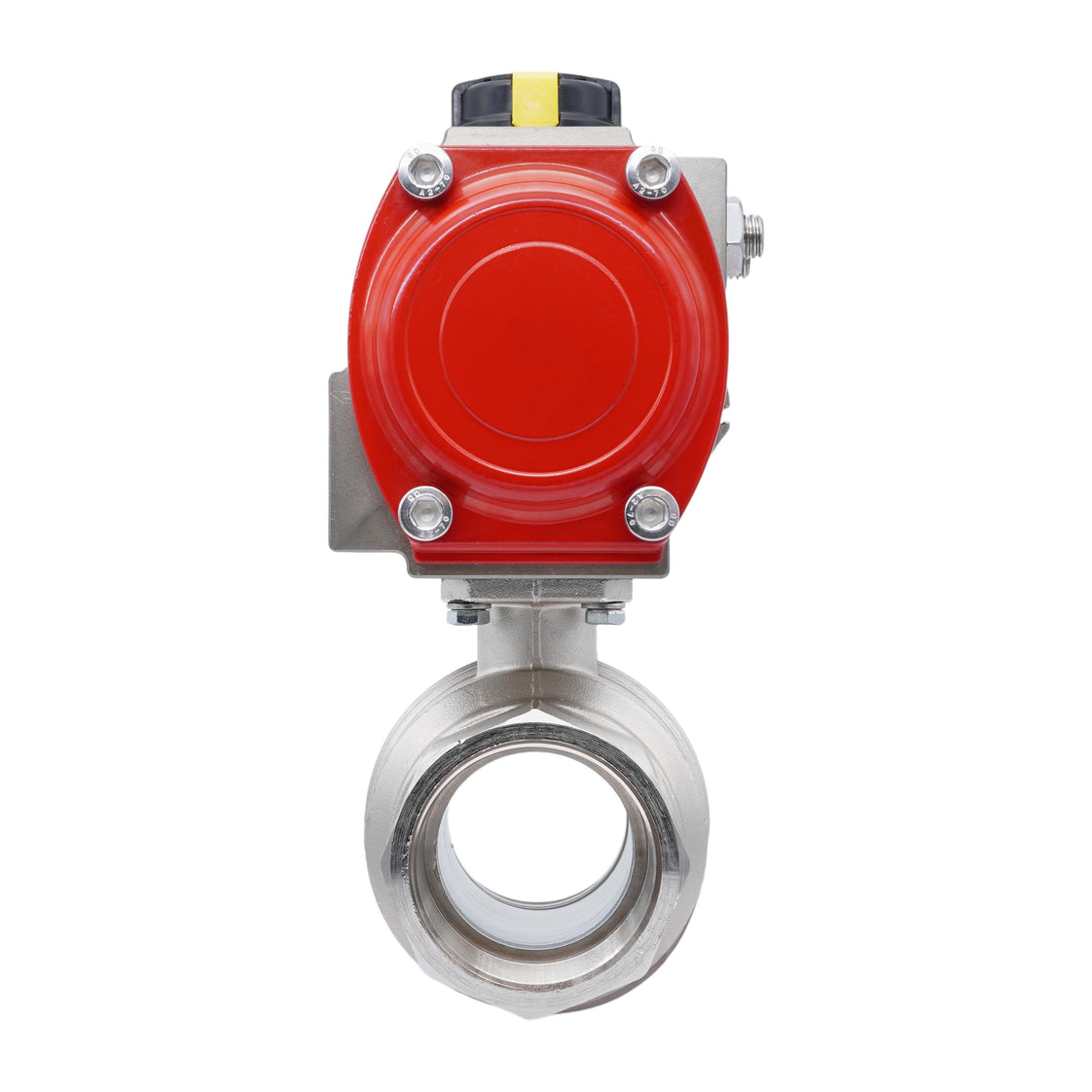

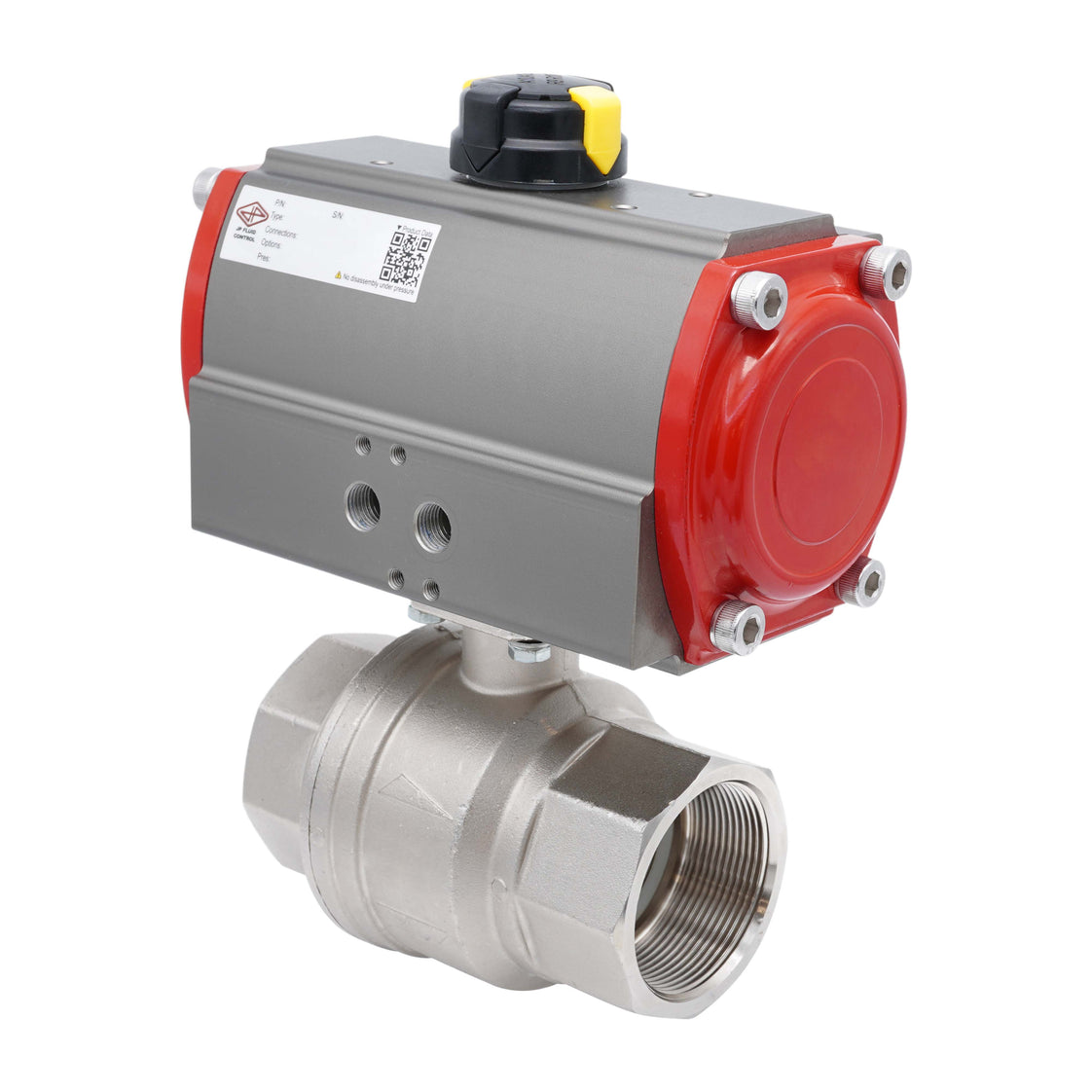

Pneumatic Ball Valve G2'' Brass Spring Closing
This 2-way ball valve is pneumatically actuated, featuring a 50 mm bore size and G2 inch threaded connections. It is suitable for medium temperatures from -20 to 160°C (-4 to 320°F) and pressures up to 40 bar (580 psi). The Kv value is 265 m³/h (Cv=306). Kv expresses the flow rate of water in m3/h at a one bar pressure drop.
The pneumatic input range is 3–8 bar (43–116 psi). The valve body is made of brass with a PTFE seal, making it suitable for water, air, oil, fuel, lubricant, and vacuum. This model is also suitable for gas applications, holding DVGW approval.
The actuator features a robust, spring closed rack-and-pinion mechanism with a 35-micron hard-anodized aluminum body. It is compatible with ISO 5211 F05/F07 valves and includes BSPP air ports for air supply and return. Additionally, it features a Namur 1/4 inch interface for solenoid valves and an 80 x 30 mm interface for VDI/VDE 3845 limit switch boxes. Comes unassembled, including ball valve (BL2BA-200), actuator (V3JM2/PR04A), and mounting accessories.
- Regular price
- $426.40 USD
We sell only to registered businesses
Description
This 2-way ball valve is pneumatically actuated, featuring a 50 mm bore size and G2 inch threaded connections. It is suitable for medium temperatures from -20 to 160°C (-4 to 320°F) and pressures up to 40 bar (580 psi). The Kv value is 265 m³/h (Cv=306). Kv expresses the flow rate of water in m3/h at a one bar pressure drop.
The pneumatic input range is 3–8 bar (43–116 psi). The valve body is made of brass with a PTFE seal, making it suitable for water, air, oil, fuel, lubricant, and vacuum. This model is also suitable for gas applications, holding DVGW approval.
The actuator features a robust, spring closed rack-and-pinion mechanism with a 35-micron hard-anodized aluminum body. It is compatible with ISO 5211 F05/F07 valves and includes BSPP air ports for air supply and return. Additionally, it features a Namur 1/4 inch interface for solenoid valves and an 80 x 30 mm interface for VDI/VDE 3845 limit switch boxes. Comes unassembled, including ball valve (BL2BA-200), actuator (V3JM2/PR04A), and mounting accessories.
Pros:
- Direct mounting of 1/4 Namur solenoid valve possible
- Can be equipped with a limit switch box (VDI/VDE 3845 80 x 30)
- Fast opening/closing
- Clear mechanical indicator on top shows the valve position
- Guaranteed 500,000+ cycles for the pneumatic actuator
- This model is suitable for gas applications, holding DVGW approval
- Suitable for a wide variety of non-aggressive liquids and gases
Cons:
- No ATEX or SIL certificate
