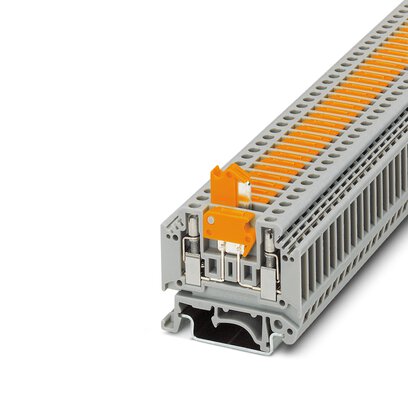

Phoenix MTK-P/P Test Disconnect Terminal Block 2.5mm² - 3104013

Phoenix MTK-P/P Test Disconnect Terminal Block 2.5mm² - 3104013
Phoenix MTK-P/P Test Disconnect Terminal Block 2.5mm² - 3104013
Reference: E3UEQ
Brand: Phoenix Contact
Mfr. Part: 3104013

Knife-disconnect terminal block featuring test socket screws for test plug insertion. Designed for electrical applications with 400V nominal voltage and 16A current rating. Supports screw connection method with 2.5mm² rated cross-section, accommodating wire ranges from 0.2mm² to 4mm². Compatible with NS 35/7.5, NS 35/15, and NS 32 mounting rails. Constructed in space-saving gray housing.

View all
$6.81 USD
excl VAT
In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 5 - 6 business days

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications

Description

Knife-disconnect terminal block featuring test socket screws for test plug insertion. Designed for electrical applications with 400V nominal voltage and 16A current rating. Supports screw connection method with 2.5mm² rated cross-section, accommodating wire ranges from 0.2mm² to 4mm². Compatible with NS 35/7.5, NS 35/15, and NS 32 mounting rails. Constructed in space-saving gray housing.

Pros:

  • Built-in test sockets for easy diagnostics
  • Versatile mounting rail compatibility
  • Wide wire cross-section range (0.2-4mm²)
  • Space-efficient design

Specifications

Connectable conductor cross section fine-strand without cable end sleeve (mm²)
0.2 mm² to 2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²)
0.25 mm² to 0.25 mm²
Connectable conductor cross section solid-core (mm²)
0.2 mm² to 4 mm²
Connectable conductor cross section multi-wired (mm²)
0.2 mm² to 1.5 mm²
Rated current In (A)
16
Rated voltage (V)
400
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
1
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature (°C)
-60 °C to 105 °C
Width (mm)i
5.2
Height (mm)i
46
Depth (mm)i
51.5
Closing plate required
Yes
Color
Grey
