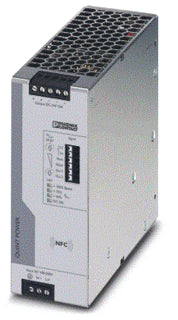

Phoenix Contact QUINT 4 DC Power Supply 24V | 2904601

Notice: This product is discontinued

Discontinued
Phoenix Contact QUINT 4 DC Power Supply 24V | 2904601
Phoenix Contact QUINT 4 DC Power Supply 24V | 2904601
Image may vary slightly
See specifications for accurate information.
Reference: E245E
Brand: Phoenix Contact
Mfr. Part: 2904601

Primary-switched, QUINT POWER power supply with a choice of output characteristic curve, selective fuse breaking technology and NFC interface. Input = 1 phase, output = 24V DC/10 A.

View all
Note: product cannot be returned

Notice: This product is discontinued

Description
Specifications
Downloads
Related products

Description

Primary-switched, QUINT POWER power supply with a choice of output characteristic curve, selective fuse breaking technology and NFC interface. Input = 1 phase, output = 24V DC/10 A.

Downloads

Specifications

Voltage type of supply voltage
AC
1st secondary output voltage at DC (V)
24 V to 29.5 V
2nd secondary output voltage at DC (V)
24 V to 24 V
Max. output current 1 (A)
20
Secondary voltage adjustable
Yes
Nominal value output voltage 1 (V)
24
Nominal value output current 1 (A)
10
Rated voltage AC (V)
100 V to 240 V
Rated voltage (AC 60 Hz) (V)
100 V to 240 V
Rated voltage DC (V)
110 V to 250 V
Electrical connection
Type of electric connection.
Screw connection
Output voltage stabilized
Yes
Power consumption (VA)
274
Power output (W)
240
Stabilized
Yes
Short-circuit-proof
Yes
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
Suitable for safety functions
Yes
SIL (IEC 61508)
None
Refurbished
No
Modular version
No
Direct mounting possible
No
Wall mounting possible
No
Rail mounting possible
Yes
Performance level (EN ISO 13849-1)
None
Built-in width (mm)
50
Built-in height (mm)
130
