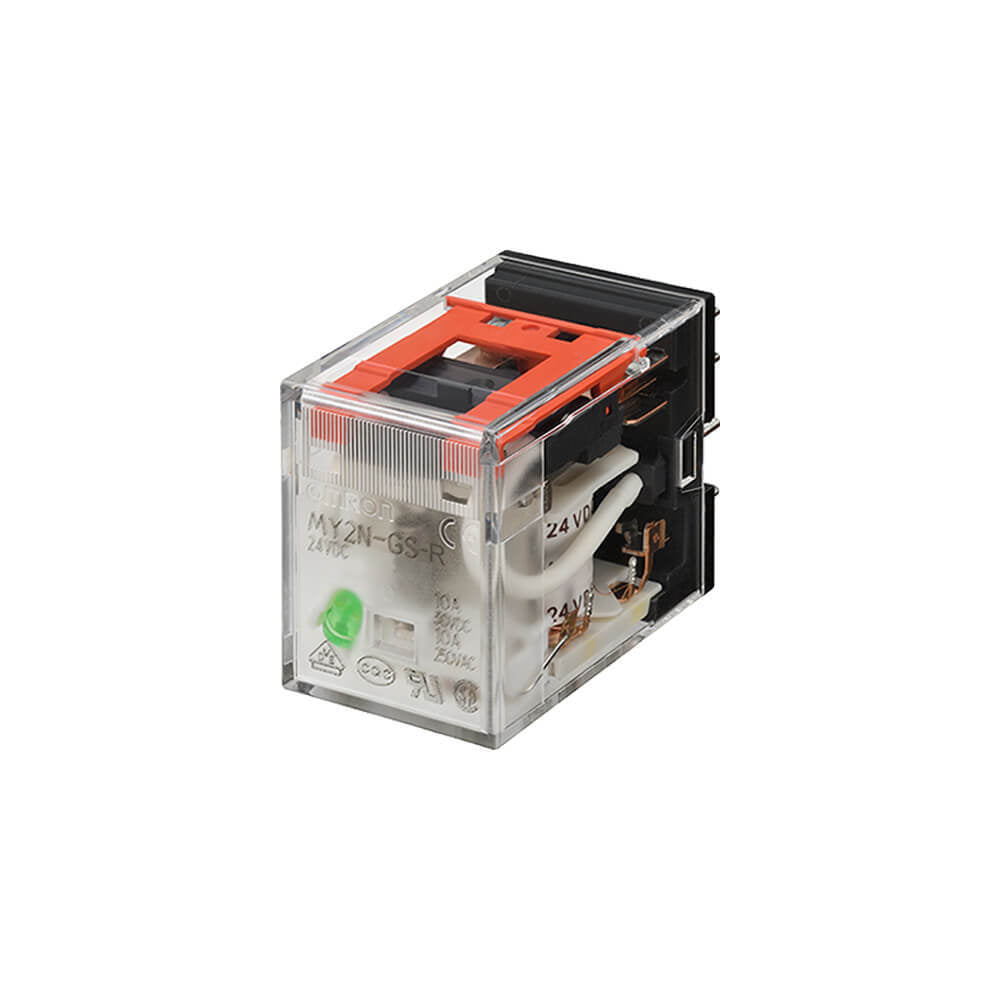

Omron MY2 8-Pin DPDT Relay 10A With Mechanical Indicator - MY2 5710A

Omron MY2 8-Pin DPDT Relay 10A With Mechanical Indicator - MY2 5710A
Omron MY2 8-Pin DPDT Relay 10A With Mechanical Indicator - MY2 5710A
Reference: E3ZES
Brand: Omron
Mfr. Part: MY2 5710A

Professional 8-pin plug-in relay featuring DPDT (Double Pole Double Throw) configuration with 10A current rating and mechanical position indicator. Operates on 12 VAC power supply with stable monostable switching action. Compact design measuring 21.5x28x36mm with plug-in terminal connections and dual changeover contacts.

View all
$10.27 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD (excl VAT)
Expected delivery in 4 - 6 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

649 reviews at TrustedShops

Description
Specifications
Downloads

Description

Professional 8-pin plug-in relay featuring DPDT (Double Pole Double Throw) configuration with 10A current rating and mechanical position indicator. Operates on 12 VAC power supply with stable monostable switching action. Compact design measuring 21.5x28x36mm with plug-in terminal connections and dual changeover contacts.

Pros:

  • High current rating of 10A for versatile applications
  • Built-in mechanical position indicator for easy status checks
  • Compact form factor with standard 8-pin plug-in design
  • Reliable DPDT switching configuration

Downloads

Product datasheet (EN)
pdf
Download
Product datasheet (EN)
pdf
Download

Specifications

Electrical connectioni
Plug-in connection
With detachable clamps
No
Nominal current (A)
10
Rated control supply voltage Us at AC 50HZ (V)
9.6 to 13.2
Rated control supply voltage Us at AC 60HZ (V)
9.6 to 13.2
Voltage type for actuating
AC
Drive, polarization
Polarity free
Drive, switching attitude
Mono stable
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
With forced-guided contacts
No
Type of switch contact
Single contact
Complete with socket
No
With LED indication
No
Degree of protection (IP)i
Other
Width (mm)i
21.5
Height (mm)i
28
Depth (mm)i
36
