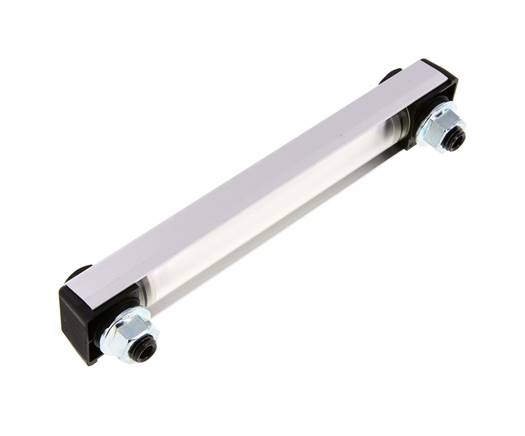

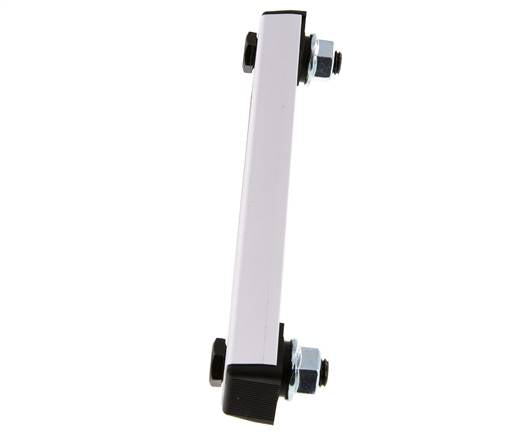

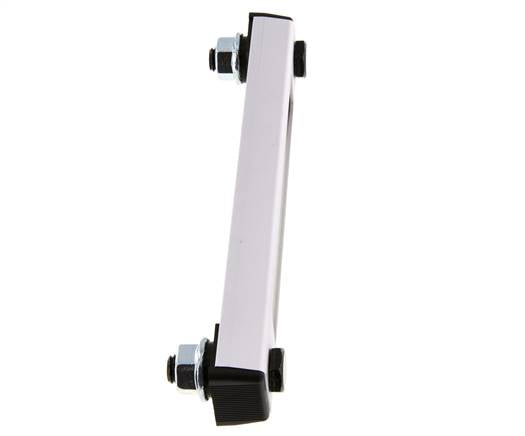

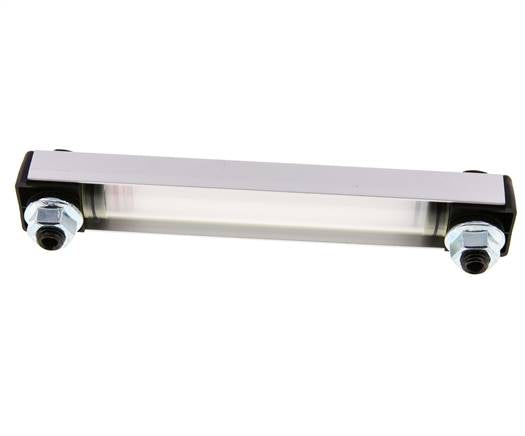

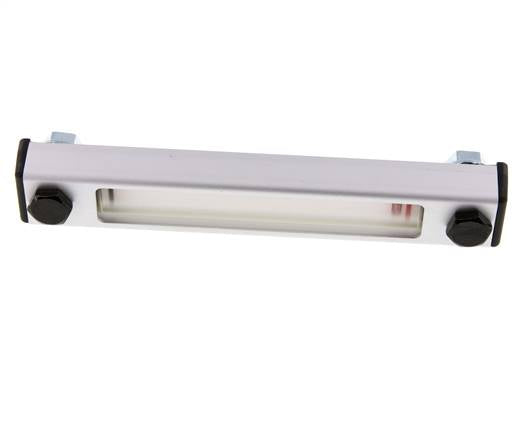

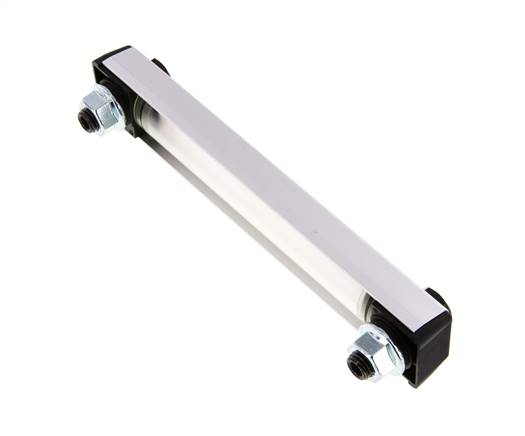

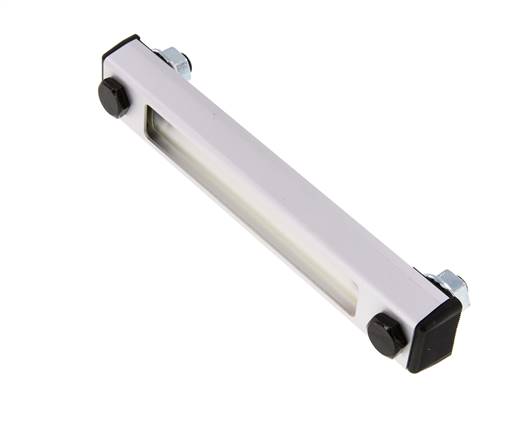

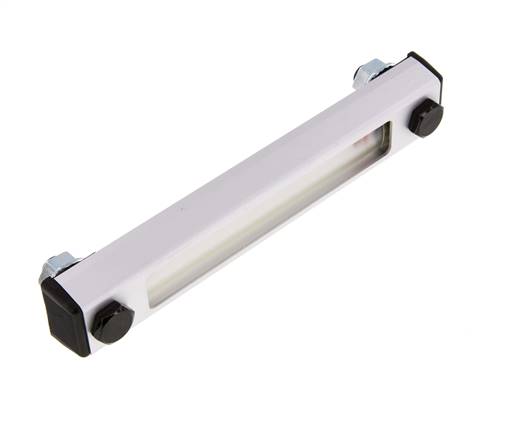

Oil Level Indicator 254mm Centre Distance without Thermometer - Hydac

Mount it with the two M12 connection screws through holes 254 mm apart in the tank wall, for walls up to 8 mm thick; the oil enters the column through the lower connection, and the upper one vents it. Use it on unpressurised tanks up to 1 bar.

Pros:

• Shows the level over the whole column height
• Fits tank walls up to 8 mm
• Level visible from outside, without opening the tank

Cons:

• Max 1 bar - for pressurised reservoirs, choose a sight glass (up to 15 bar)
• No thermometer - for temperature reading, choose the version with thermometer

Series:

Hydac FSA column level indicators for checking the oil level in hydraulic tanks, available with or without an integrated thermometer. Centre distances of 76, 127, 176 and 254 mm cover different tank heights. They mount with two M12 connection screws through tank walls up to 8 mm thick. Plastic connections and riser tube, aluminium frame, steel screws and nuts and NBR seals, for mineral-oil hydraulic oils from -20 to +80 °C at a maximum operating pressure of 1 bar. The thermometer reads -10 to +80 °C (+20 to +80 °C on the 76 mm version).
