NBR Design AS Rotary Shaft Seal 40x58x8.5mm
Notice: This product is discontinued and replaced by S2CBM-X5
![NBR Design AS Rotary Shaft Seal 40x58x8.5mm [5 Pieces]](http://tameson.com/cdn/shop/files/wedi.c41191f1_e533cd94-1a71-4d6c-85a8-fbfee0a5a73b.jpg?v=1711302015&width=108)

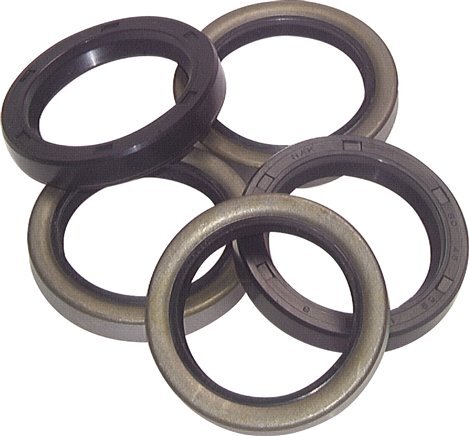

This rotary shaft seal has an internal diameter of 40 mm, an external diameter of 58 mm and a 8.5 mm width. It is used to seal rotating machine components.
This seal consists of an NBR ring with a reinforcement plate and a worm spring made of spring steel. The external rubber-elastic jacket provides stable sealing and tight fit. Suitable for a shaft circumferential speed of up to 14 m/s.
Changing the seal frequently prevents damage to the housing hole. The seal must be assembled according to DIN 3760 to function optimally.
Notice: This product is discontinued and replaced by S2CBM-X5
Description
This rotary shaft seal has an internal diameter of 40 mm, an external diameter of 58 mm and a 8.5 mm width. It is used to seal rotating machine components.
This seal consists of an NBR ring with a reinforcement plate and a worm spring made of spring steel. The external rubber-elastic jacket provides stable sealing and tight fit. Suitable for a shaft circumferential speed of up to 14 m/s.
Changing the seal frequently prevents damage to the housing hole. The seal must be assembled according to DIN 3760 to function optimally.
Pros:
- Suitable for temperatures from -30 to 100°C (-22 to 212°F)
- There is no frictional corrosion thanks to the rubber-elastic jacket
- Provided with a dust lip for protection from dirt and corrosion
